S5-115F Manual Technical Specifications
IM 306 Interface Module (6ES5 306-7LA11)
Technical Specifications
Current supplied to the EU max. 2 A
Current consumption
(5 V; own consumption) 50 mA
Weight approx. 0.6 kg
(1.3 lb.)
Accessories
705 connecting cable
0.50 m (1.5 ft.) 6ES5 705-0AF00
1.25 m (3.9 ft.) 6ES5 705-0BB20
1.50 m (4.7 ft.) 6ES5 705-0BB50
2.50 m (7.8 ft.) 6ES5 705-0BC50
( Catalog ST 52.3)
The IM 306 interface module is used for central connection of up to three expansion units (EUs)
to a central controller (CC). ( also Chapter 3).

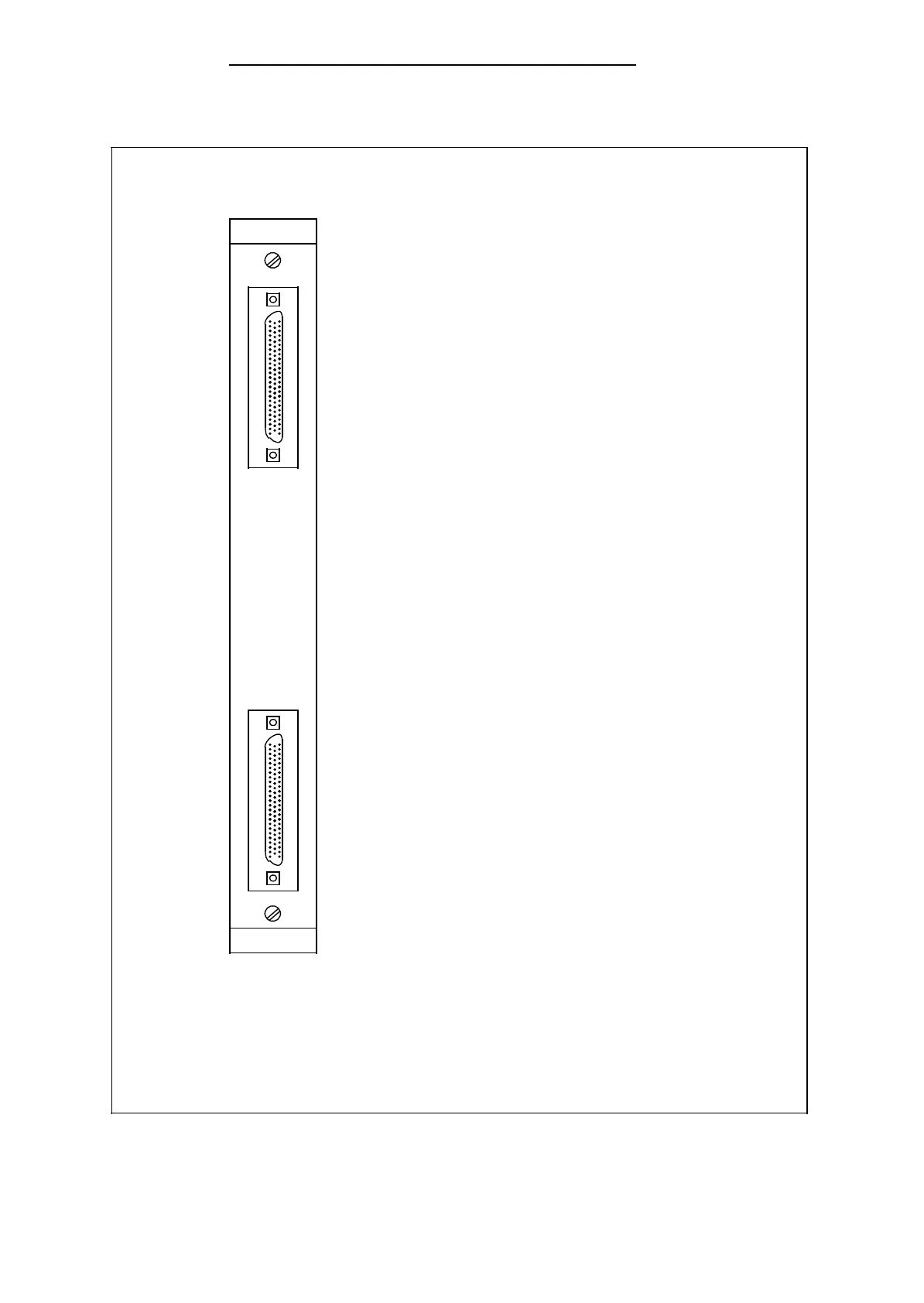

IM 306
OUT
IN
