Installation
2.3 Connecting the hardware
Getting started with S7-1200
Getting Started, 11/2009, A5E02486791-01
27
2.3 Connecting the hardware

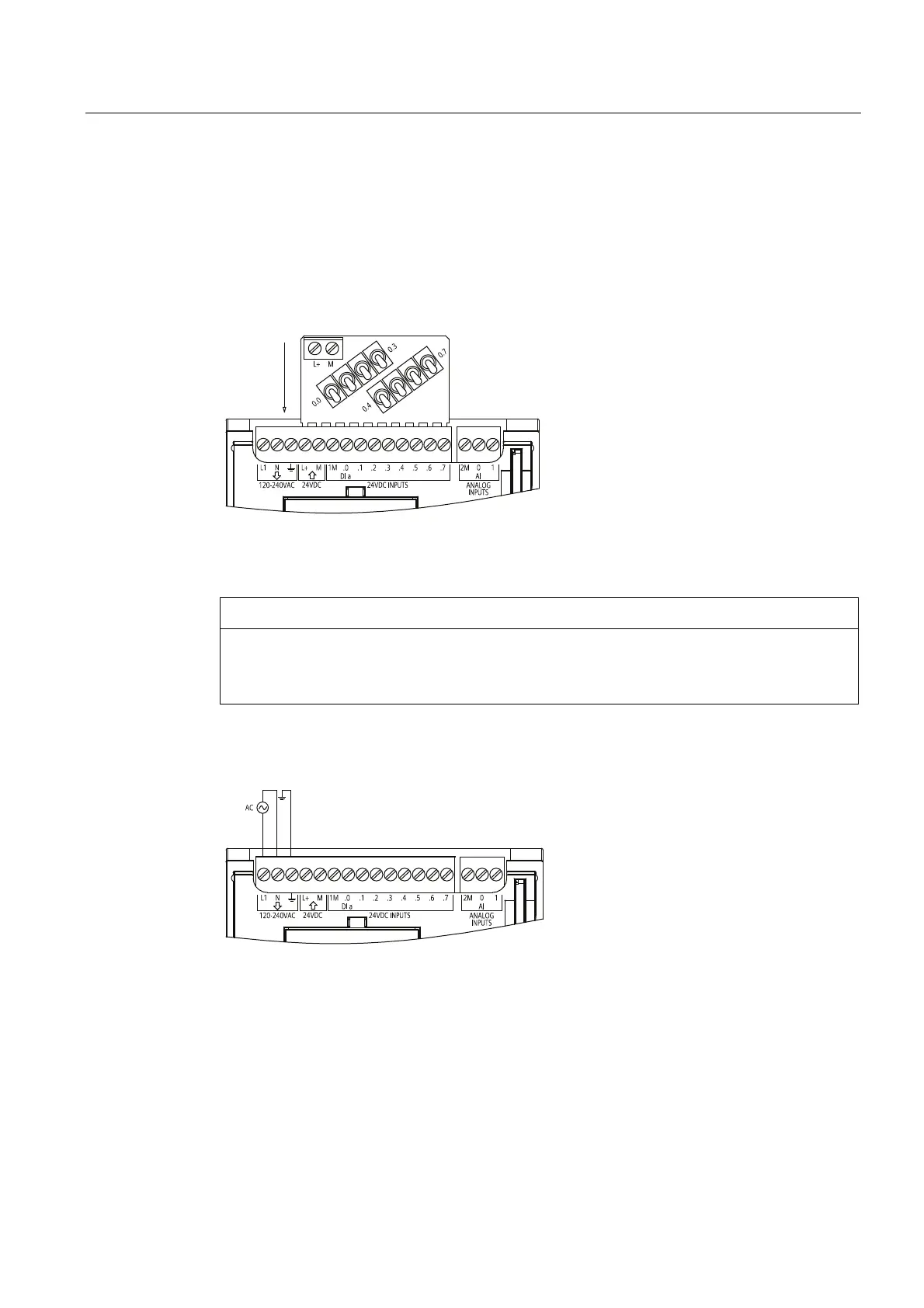

Insert the input simulator
The simulator connects to the 24 VDC and the input terminals. Ensure that all of the
switches on the simulator are set to the "off" position.
① Insert the simulator.
1. Loosen the screws of the terminal.
2. Insert the simulator.
3. Tighten all of the screws on the
terminal.
Connect the power to the CPU
CAUTION
The S7-1200 Starter Kit provides a CPU 1212C AC/DC/RLY, which uses 120/240 VAC.
To use a different CPU, refer to the
S7-1200 Programmable Controller System Manual
for
instructions on how to connect the power to your specific CPU.
① Connect power to the CPU.
The CPU requires 120 to 240 VAC.
Insert the power lines of the cord into the
L1 and N terminals, and insert the
ground line in the ground terminal. After
tightening the terminal screws, you can
plug the cord into the outlet.
