Siemens SIMATIC S7-1200

Create a simple latch circuit
3.1 Create a project for your user program
Getting started with S7-1200
30 Getting Started, 11/2009, A5E02486791-01

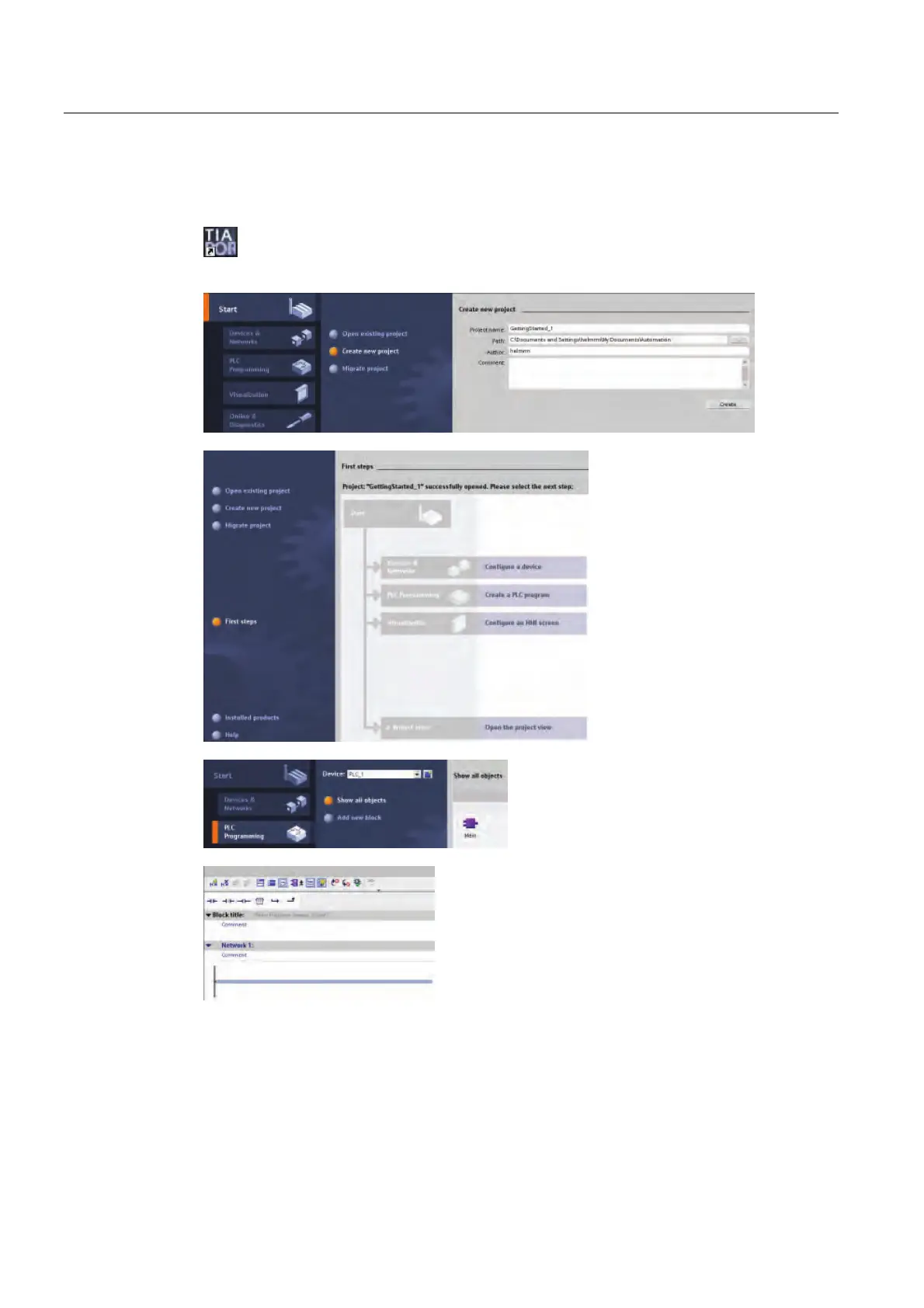

3.1 Create a project for your user program
Double-click the desktop icon to start STEP 7 Basic.
After STEP 7 Basic opens, click "Create new project" in the Start portal. Enter the
project name and click "Create".
STEP 7 Basic displays
the "First steps".
Create a new user
program by clicking
"Create a PLC
program".
STEP 7 Basic creates
the "Main" code block
for your user program
and opens the "PLC
Programming" portal.
Open the program editor by
double-clicking the "Main" block
STEP 7 Basic changes to the Project view and
displays the network of the Main block.
