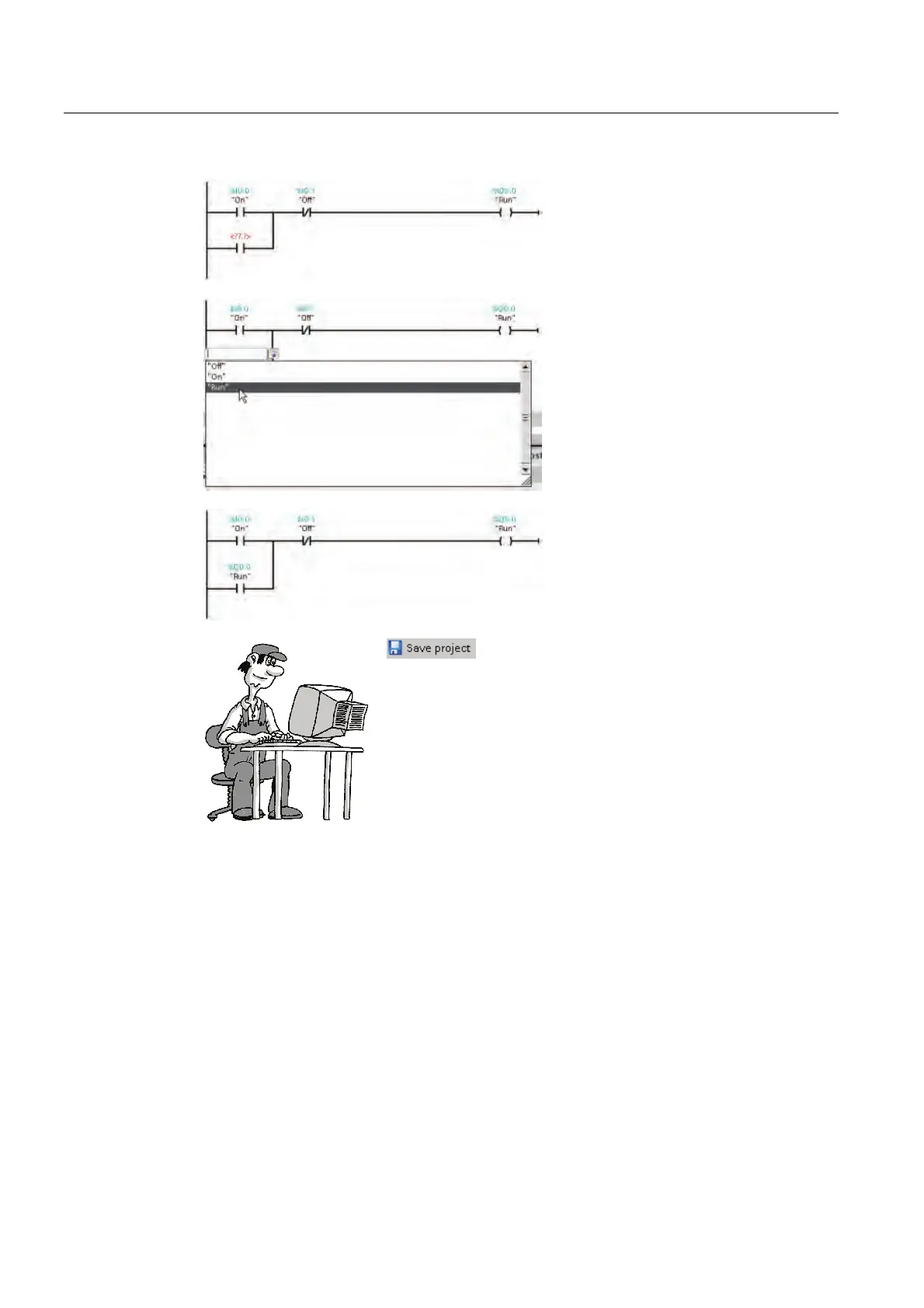

Create a simple latch circuit
3.3 Enter the tags and addresses for the instructions
Getting started with S7-1200
34 Getting Started, 11/2009, A5E02486791-01
STEP 7 Basic saves the tags in a tag
table. You can enter the tag address
directly from the tag table to the
instruction.
1. Select the contact on the branch.
2. Either click on the icon next to the
field or enter an "r" or an "o" to
display the entries in the tag table.
3. Select "Run" from the list of tags in
the tag table.
The latching circuit is now complete.
Click the "Save project" button on the toolbar to save your work.
Your program is now ready to be downloaded to the CPU.
Before you can download the user program, however, you must
configure a CPU in the device configuration for the project.
