Configuration of the SIMATIC Manager
6.1 Creating a new STEP7 project
SM331; AI 8x12 Bit Getting Started part 1: 4 -20mA
Getting Started, 11/2006, A5E00253410-02
6-3
6.1.2 CPU selection
Proceed as follows
Choose the CPU 315-2DP for the example project. (You can also use our example for a
different CPU. Select the appropriate CPU in this case.)

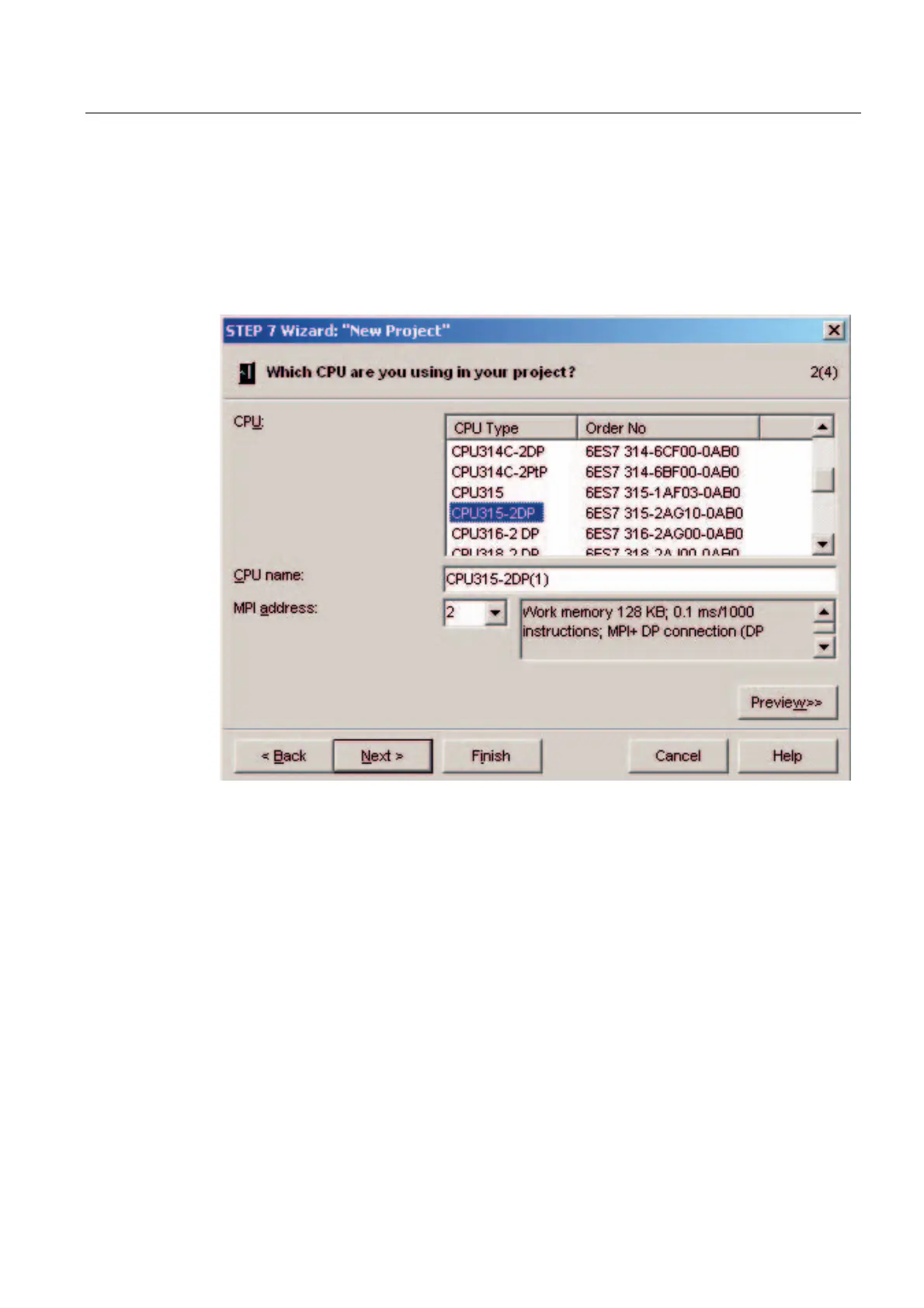

Figure 6-3 "New Project" wizard: selecting a CPU
Click "Next."
