Diagnostic interrupt
8.2 General diagnostics
SM331; AI 8x12 Bit Getting Started part 1: 4 -20mA
Getting Started, 11/2006, A5E00253410-02
8-3
8.2 General diagnostics
Diagnostic interrupt tab
On the Diagnostic Interrupt tab you will find information for the reported error.
The interrupts are not channel dependent and apply to the entire module.

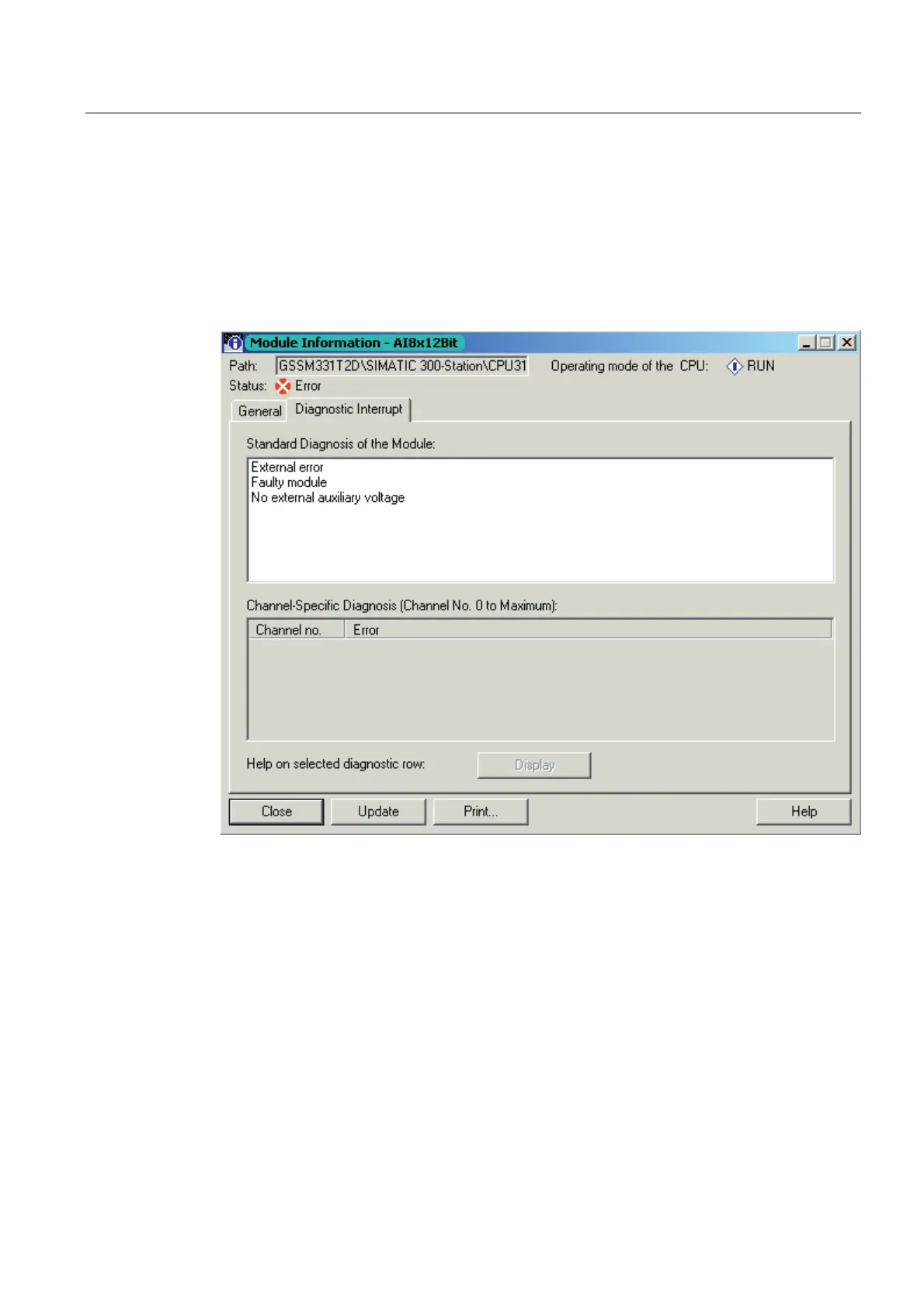

Figure 8-3 Diagnostics for SM331
