Diagnostic interrupt
8.1 Reading diagnostic information from a PG
SM331; AI 8x12 Bit Getting Started part 1: 4 -20mA
8-2 Getting Started, 11/2006, A5E00253410-02
The cause of the error can be determined "online" by requesting the hardware status.
In order to determine the state of module "online", proceed as follows:

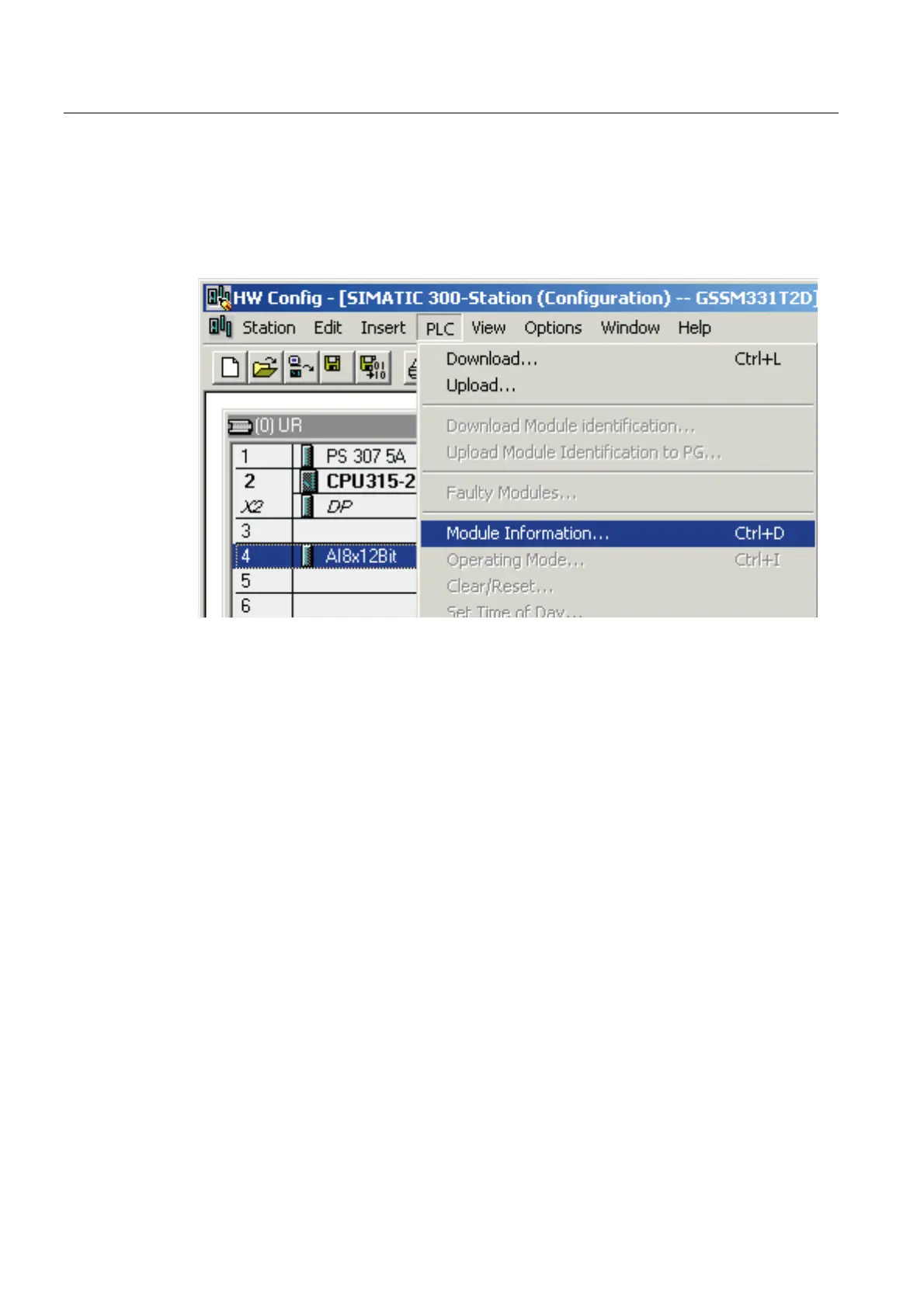

Select the SM331 in the hardware configuration. Click the menu command CPU -> Module
Information... in order to perform a hardware diagnostics.
Figure 8-2 Module status
