Configuration of the SIMATIC Manager
6.1 Creating a new STEP7 project
SM331; AI 8x12 Bit Getting Started part 1: 4 -20mA
6-6 Getting Started, 11/2006, A5E00253410-02
6.1.5 Result S7 project is created
Result
The wizard has created the project “Getting Started S7-SM331”. You can see the inserted
organization blocks in the right window.

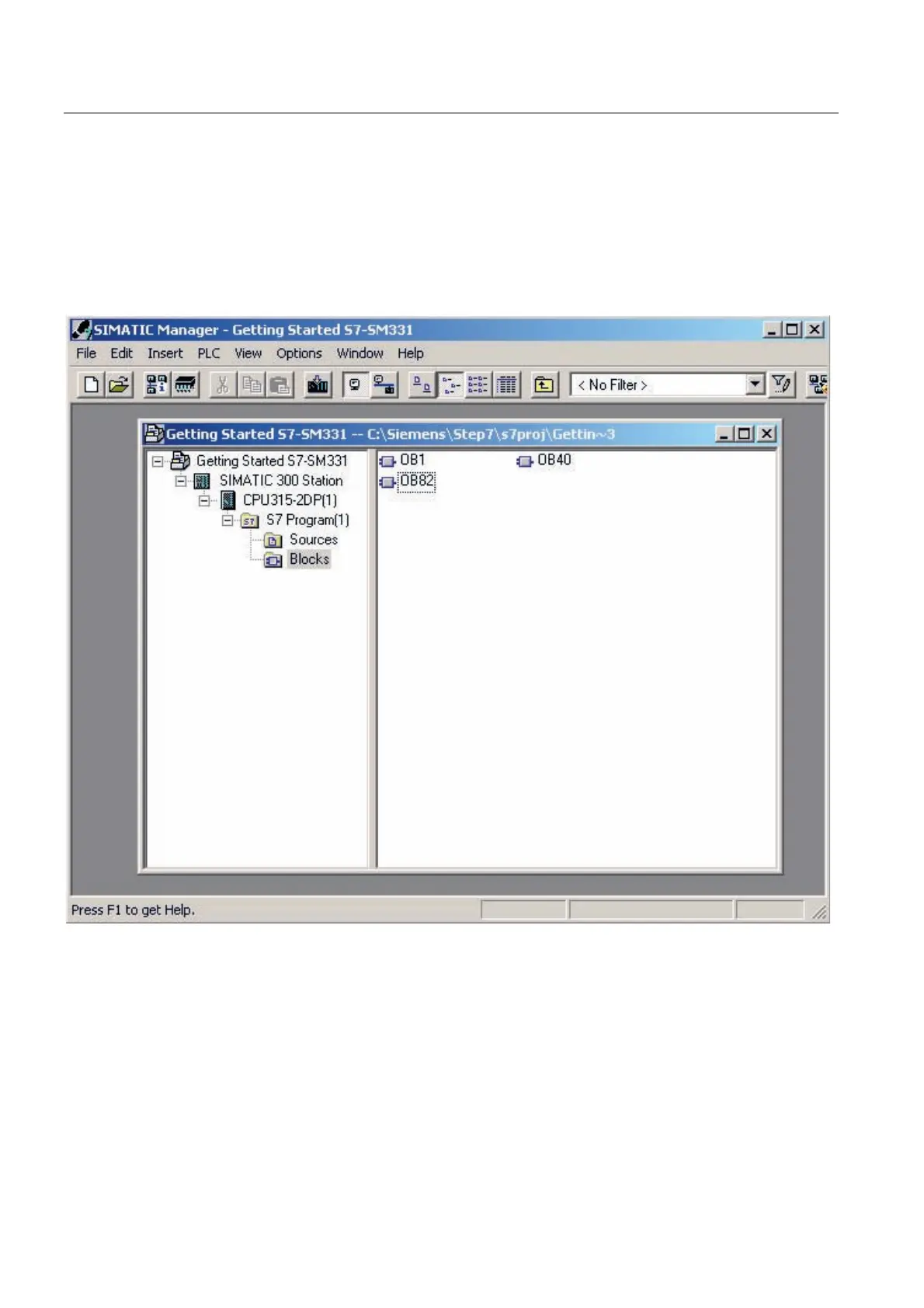

Figure 6-6 "New Project" wizard results
