Configuration of the SIMATIC Manager
6.2 Hardware configuration
SM331; AI 8x12 Bit Getting Started part 1: 4 -20mA
Getting Started, 11/2006, A5E00253410-02
6-3
6.2.4 Test
Proceed as follows
For testing, do a power up test and download the system data.

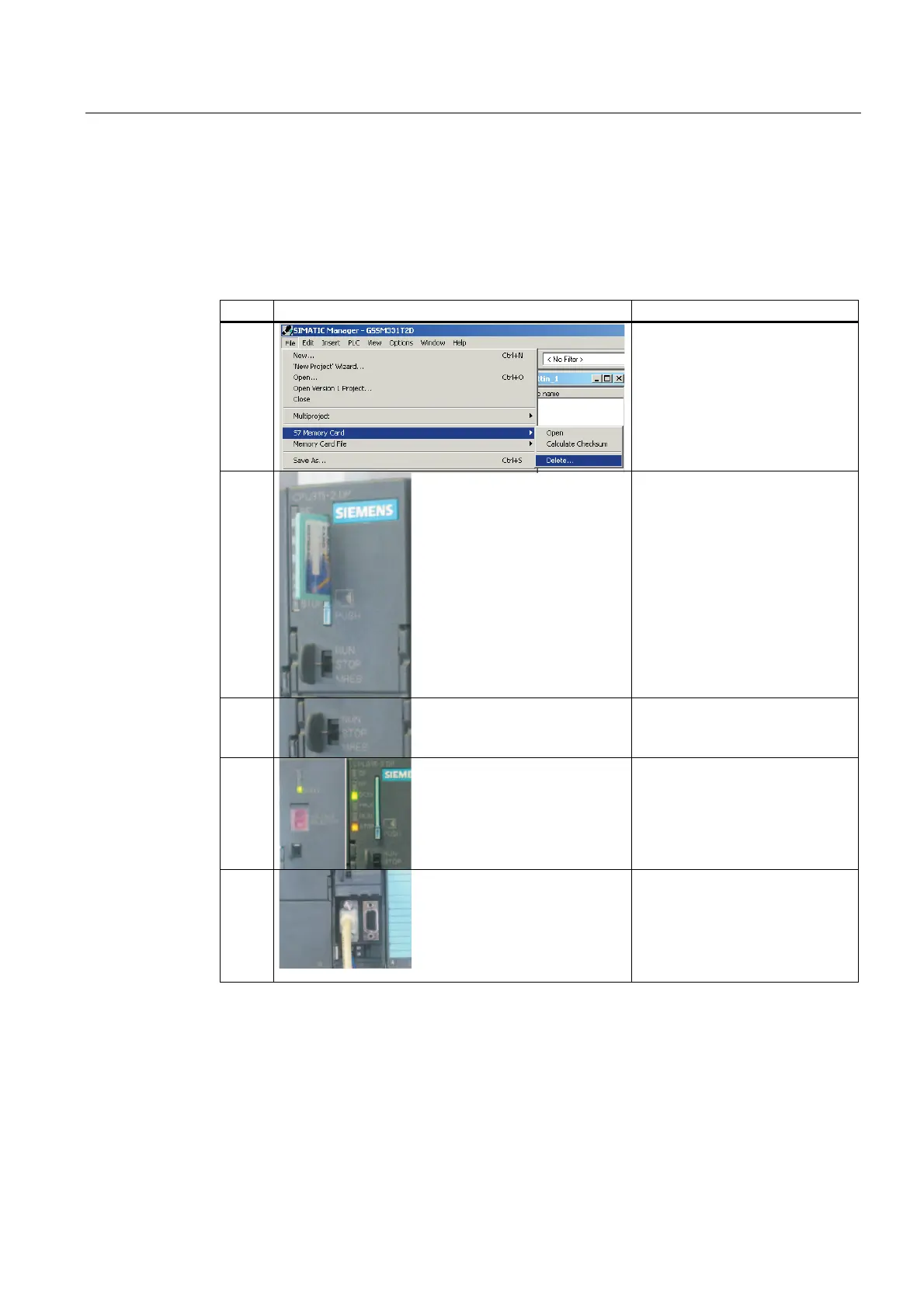

Step Graphic controller Description
1 Erase your Micro Memory Card
with a Power PG or a PC with
external programming device:
In SIMATIC Manager click "File ->
S7 Memory Card > Delete …".
The MCC will be deleted.
2
Switch off the power supply to the
CPU.
Insert the MMC into the CPU.
Switch on the power supply.
3
If the CPU is in RUN mode, set it
to STOP mode.
4
Switch the power supply on again.
If the STOP LED blinks, the CPU
requests a reset. Acknowledge
this by turning the mode switch to
MRES for a moment.
5
Connect the CPU to the PG with
an MPI cable.
To do this, connect the MPI cable
with the CPU’s MPI port. Connect
the other end to the PG interface
of your programming device.
