Configuration of the SIMATIC Manager
6.2 Hardware configuration
SM331; AI 8x12 Bit Getting Started part 1: 4 -20mA
6-14 Getting Started, 11/2006, A5E00253410-02
Downloading hardware configuration
Download the hardware configuration into the CPU with HW Config.

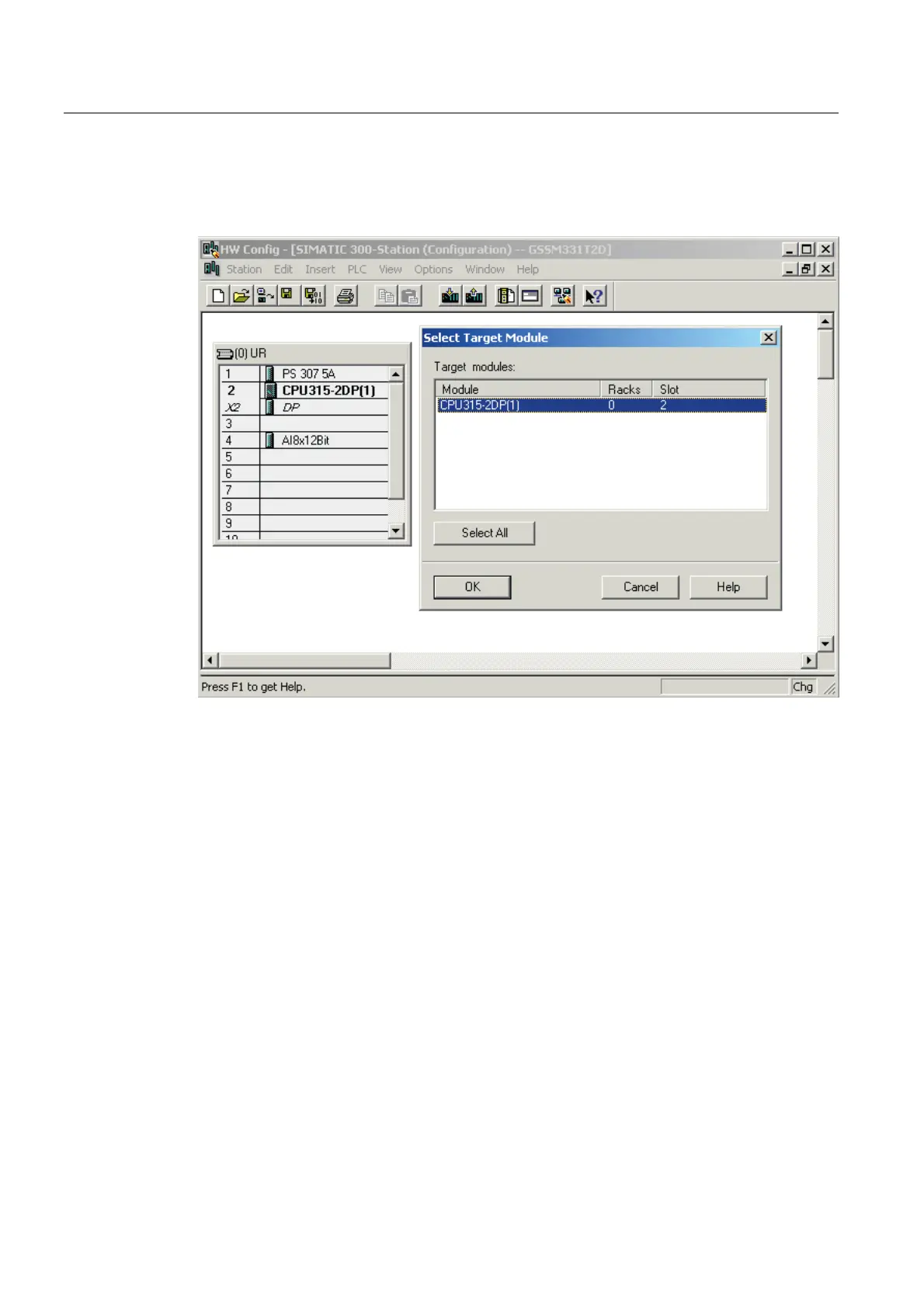

Figure 6-11 Download CPU hardware configuration (1)
