Configuration of the SIMATIC Manager
6.2 Hardware configuration
SM331; AI 8x12 Bit Getting Started part 1: 4 -20mA
Getting Started, 11/2006, A5E00253410-02
6-3
6.2 Hardware configuration
6.2.1 Creating the hardware configuration
Requirements
The STEP7 wizard has created a basic S7 project. You also need a complete hardware
configuration in order to create the system data for the CPU.
Proceed as follows
You can create the hardware configuration of the example station with SIMATIC Manager.
To do this, select the folder "SIMATIC 300 Station" in the left window. Start the hardware
configuration by double clicking the folder "Hardware" in the right window.

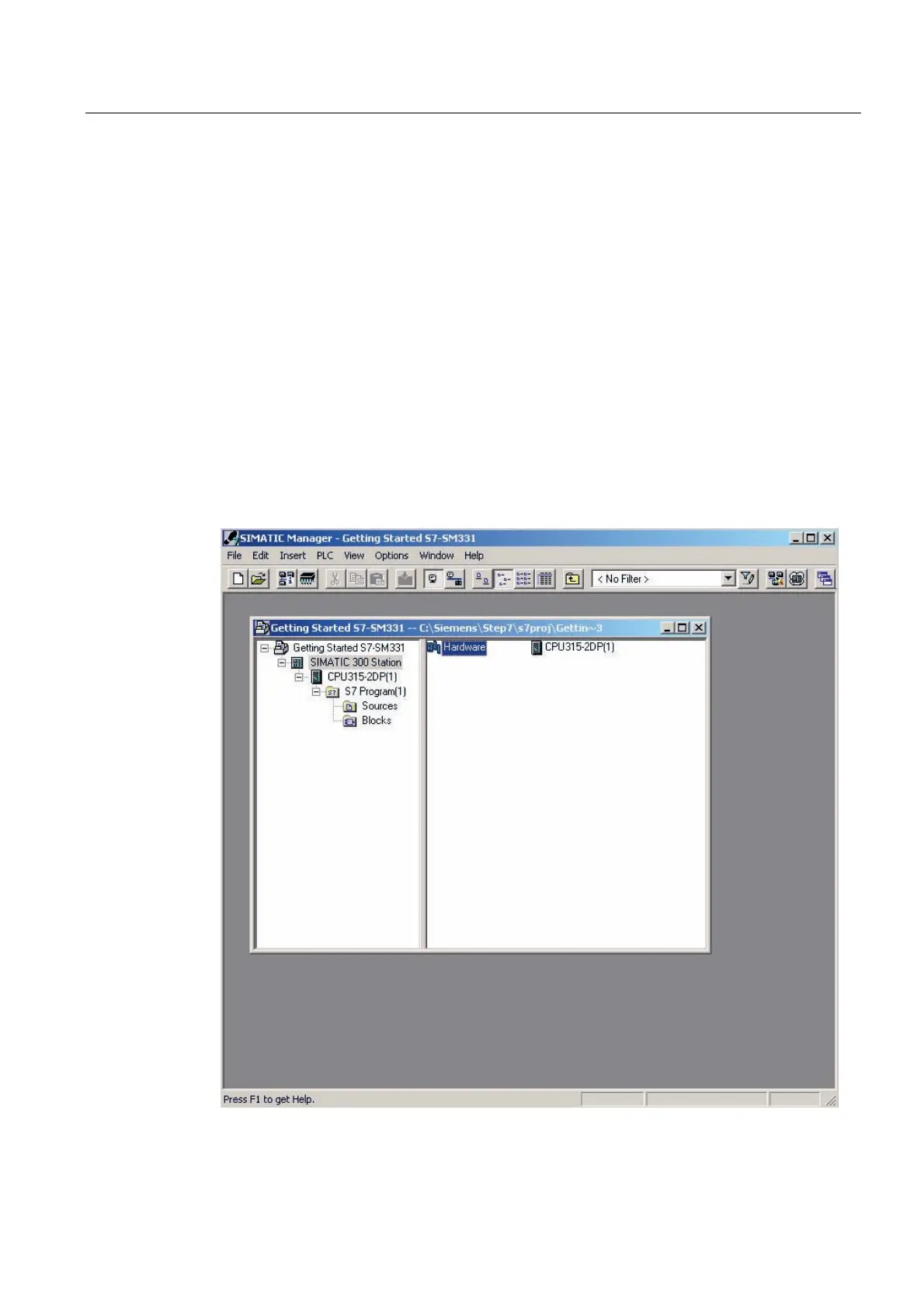

Figure 6-7 Opening the hardware configuration
