Configuration of the SIMATIC Manager
6.3 STEP 7 user program
SM331; AI 8x12 Bit Getting Started part 1: 4 -20mA
Getting Started, 11/2006, A5E00253410-02
6-3
Close the source code editor.

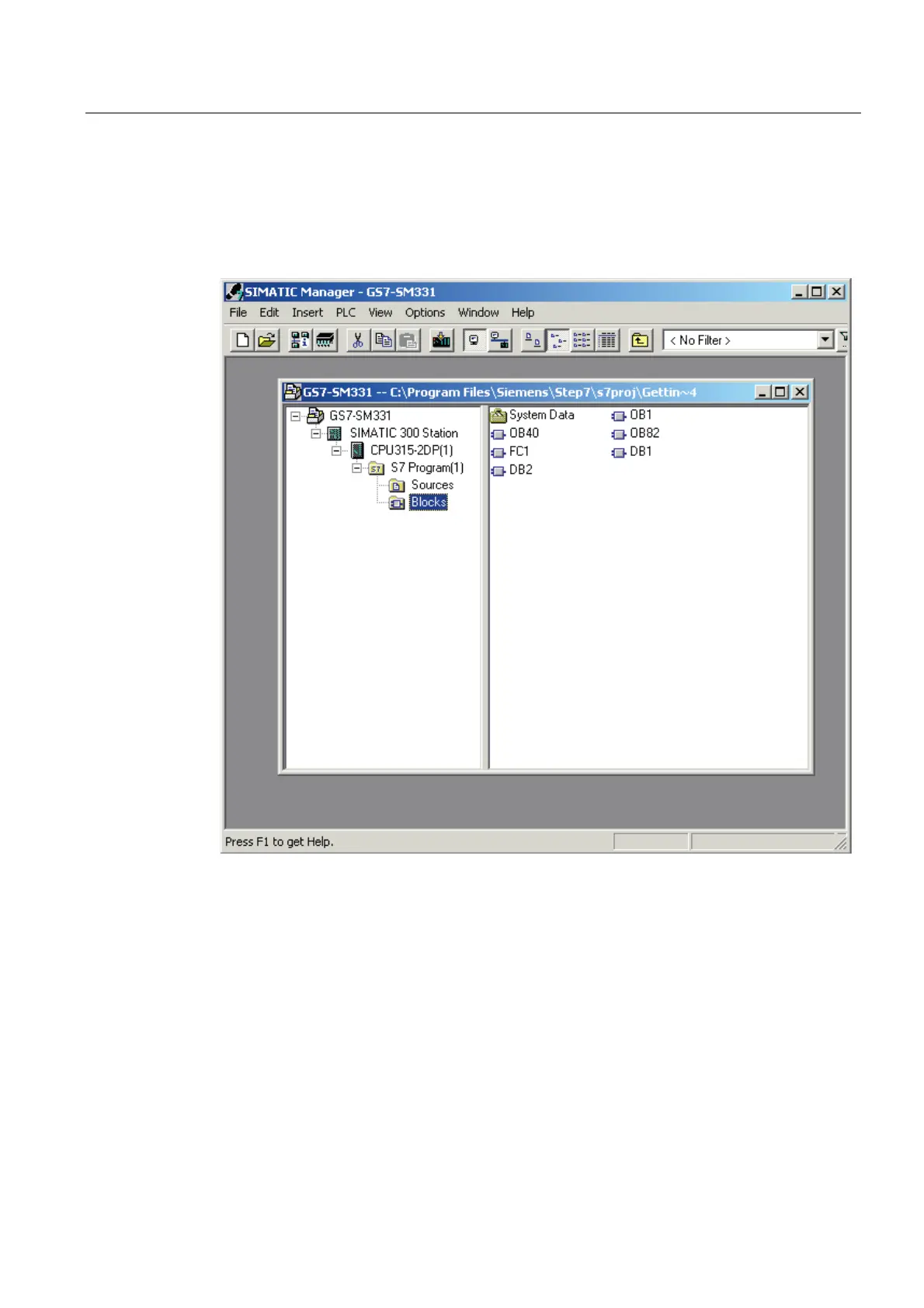

After compiling the STL source without errors the following blocks should appear in the
Blocks folder:
OB1, OB40, OB82, FC1, DB1 and DB2
Figure 6-20 Generated blocks
