Testing the user program
7.1 Downloading system data and user program
SM331; AI 8x12 Bit Getting Started part 1: 4 -20mA
7-2 Getting Started, 11/2006, A5E00253410-02
Smart Label
The labeling strips for the modules were created with Siemens S7 Smart Label (order no:
2XV9 450-1SL01-0YX0).
A labeling strip in its actual size:

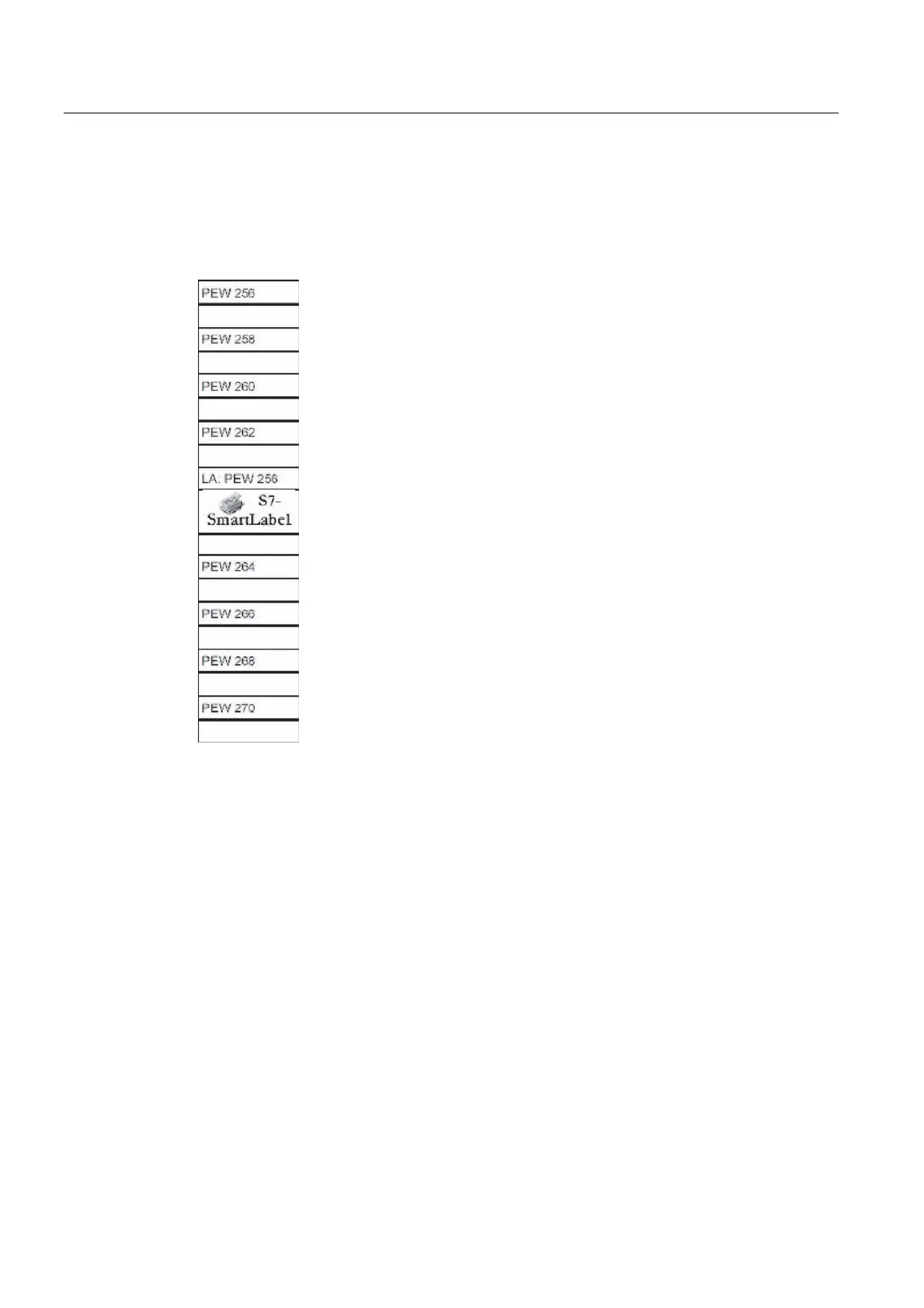

Figure 7-1 S7-SmartLabel labeling strip for the example
