Siemens Simatic SM331 User Manual

Testing the user program
7.2 Visualization of the sensor values
SM331; AI 8x12 Bit Getting Started part 1: 4 -20mA
7-6 Getting Started, 11/2006, A5E00253410-02
Monitoring values
In order to monitor values, open the online view of the controller by clicking the eye glasses
symbol. Now you can monitor the values in the data blocks and markers.

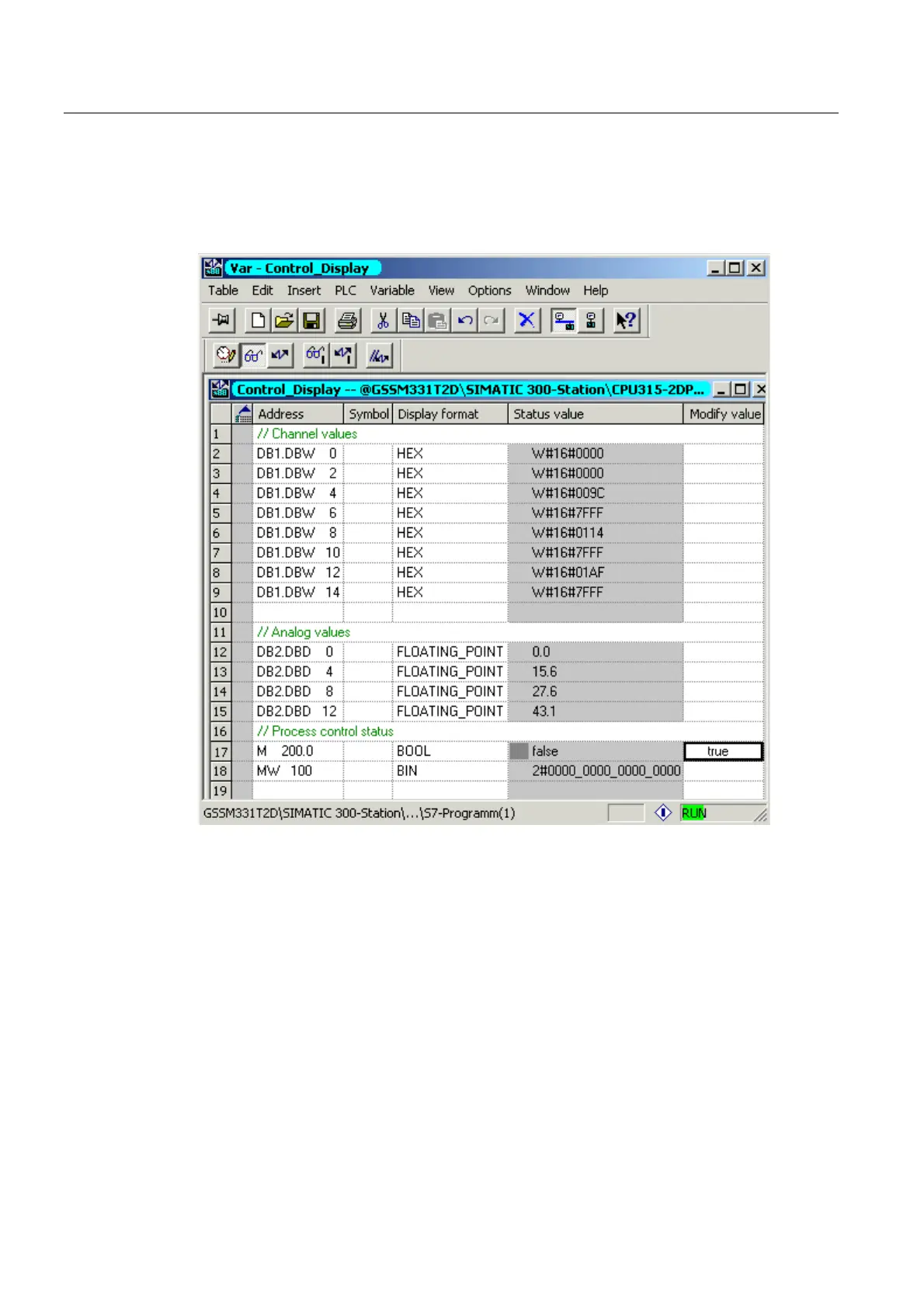

Figure 7-3 Online view of the variable table
(1) Channel values in hex format
(2) Converted analog value
(3) Status information
