3 Engineering
Blocking Protection for Pumps with SIMOCODE pro V
Article ID: 109478058, V2.0, 09/2020
40
© Siemens AG
2020 All rights reserved
Standard functions
1. Go to "Standard functions > External fault > External fault 1".
2. Place the binary output of Counter 1 on the input of the function "External
fault 1".
3. For response, program "trip".
4. Create a label that will appear in the event of an error (for example on an
operator panel with display).

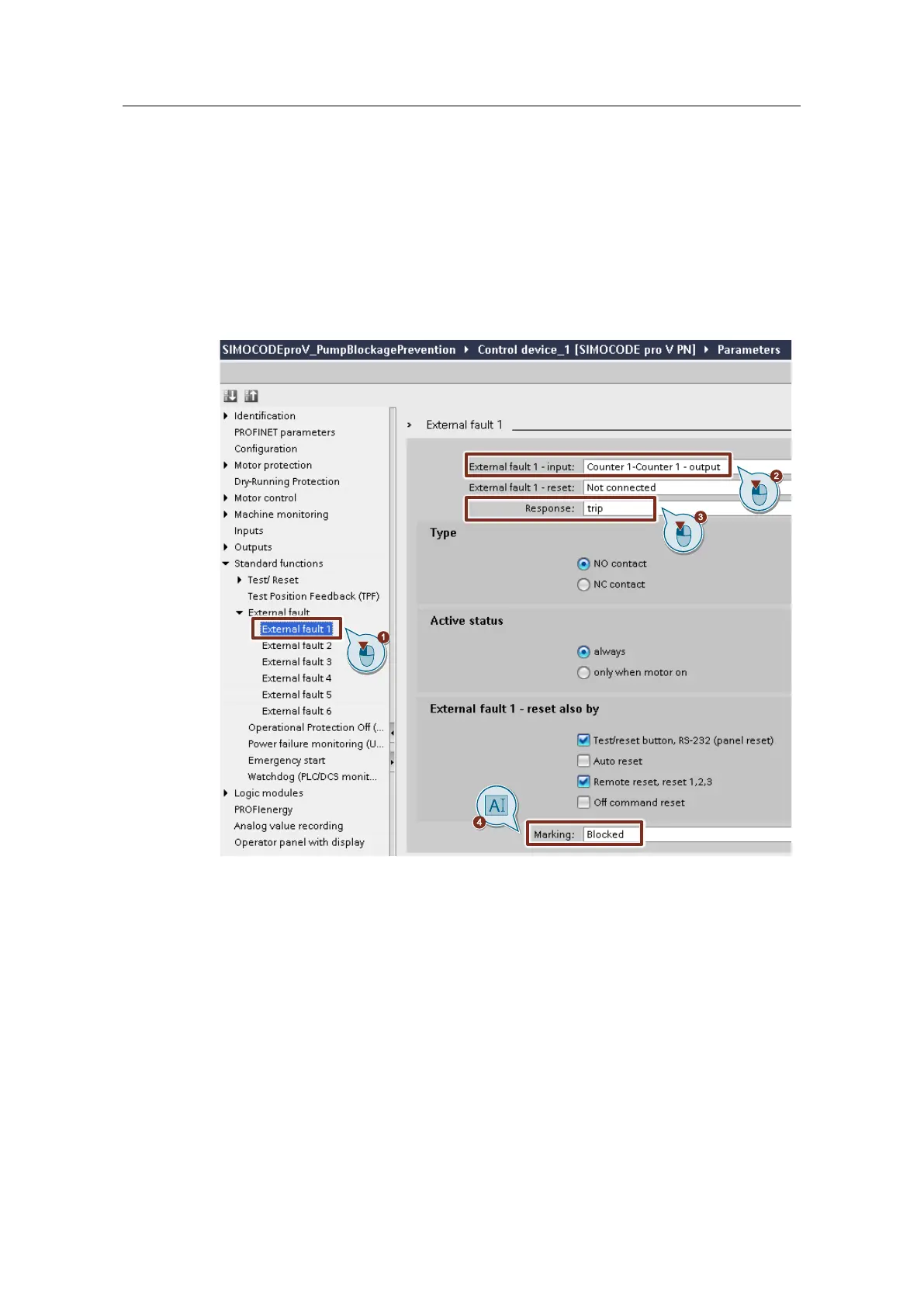

Figure 3-10
