Blocking Protection for Pumps with SIMOCODE pro V
Article ID: 109478058, V2.0, 09/2020
Outputs for cyclic send data
1. Open "Outputs > Cyclic send data".
2. In addition to the default interconnections of the reversing starter, you will
create the following signals to bits 0 and 1 of the interface "Cyclic send byte 1".
– Bit 0: Signal "Status – device o.k." of the binary connection block "Status –
device o.k."
– Bit 1: Output signal from the function block "External fault 1".
3. Interconnect the values of Counters 1 and 2 used in the logic to inputs 1 and 2
of the interface "Cyclic send byte 4/9".

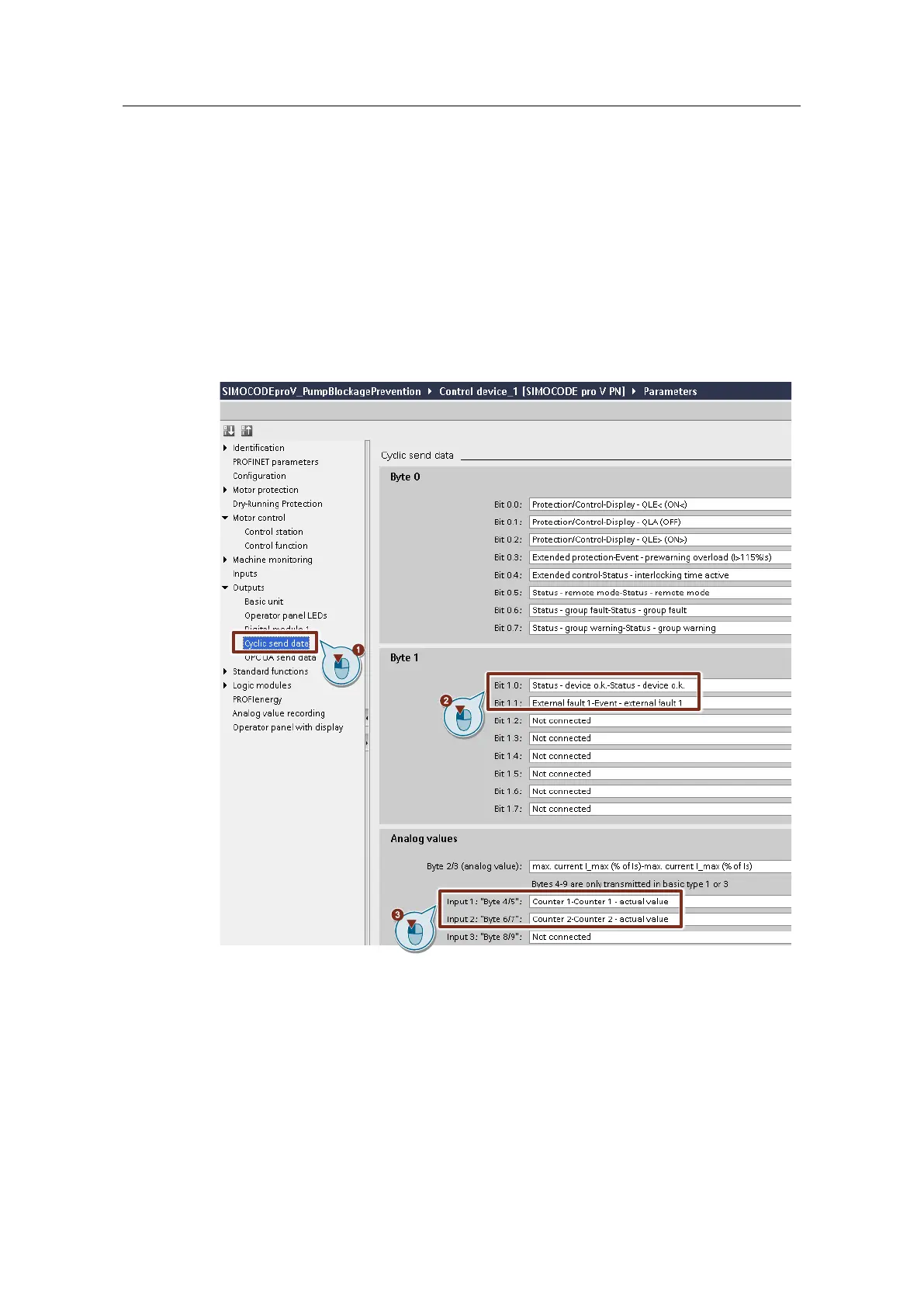

Figure 3-9
