Blocking Protection for Pumps with SIMOCODE pro V
Article ID: 109478058, V2.0, 09/2020

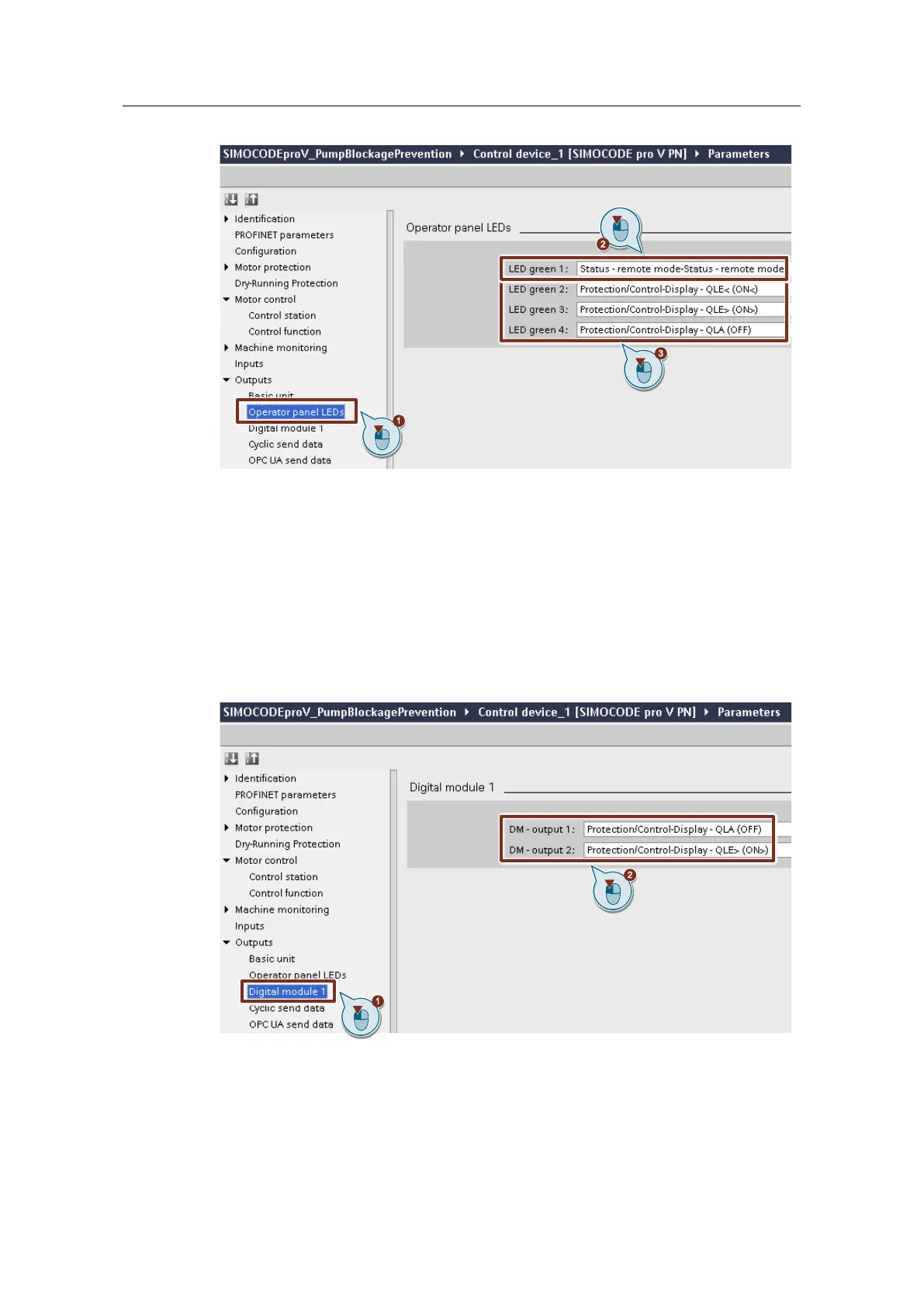

Figure 3-7
Outputs of the digital module
1. Open "Outputs > Digital module 1".
2. Interconnect outputs 1 and 2 of the digital module (DM outputs) with the
following plugs of the "Protection/Control" function block.
– DM output 1: Plug "QLA (OFF)"
– DM output 2: Plug "QLE> (ON>)"
Figure 3-8
