Blocking Protection for Pumps with SIMOCODE pro V
Article ID: 109478058, V2.0, 09/2020
43
© Siemens AG
2020 All rights reserved

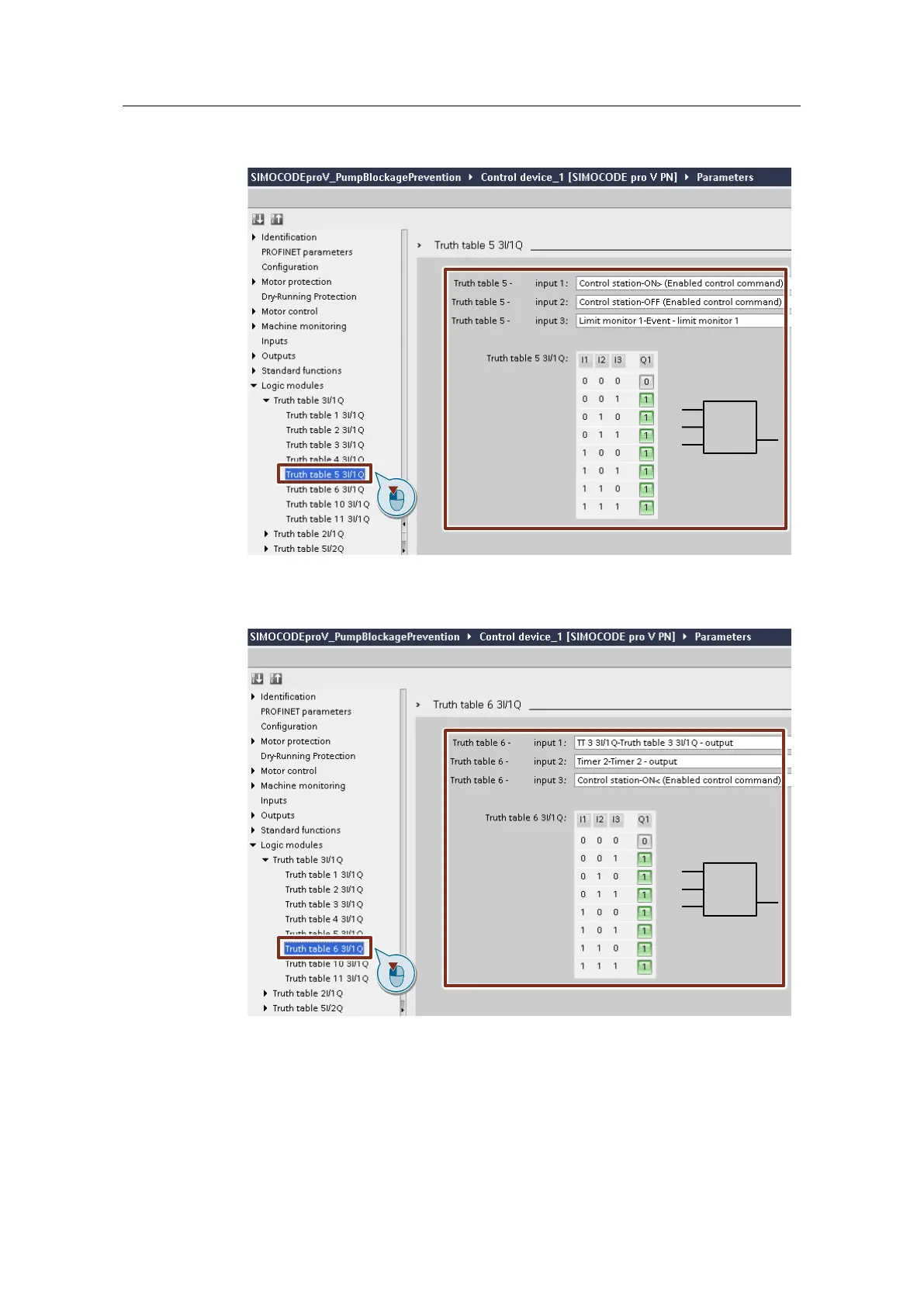

5. Under "Logic modules > Truth table 3I/1O > Truth table 5", define the signals
and logic of truth table 5 (TT5).
I1
I2
I3
≥1
6. Under "Logic modules > Truth table 3I/1O > Truth table 6", define the signals
and logic of truth table 6 (TT6).
I1
I2
I3
≥1
