Blocking Protection for Pumps with SIMOCODE pro V
Article ID: 109478058, V2.0, 09/2020
44
© Siemens AG
2020 All rights reserved

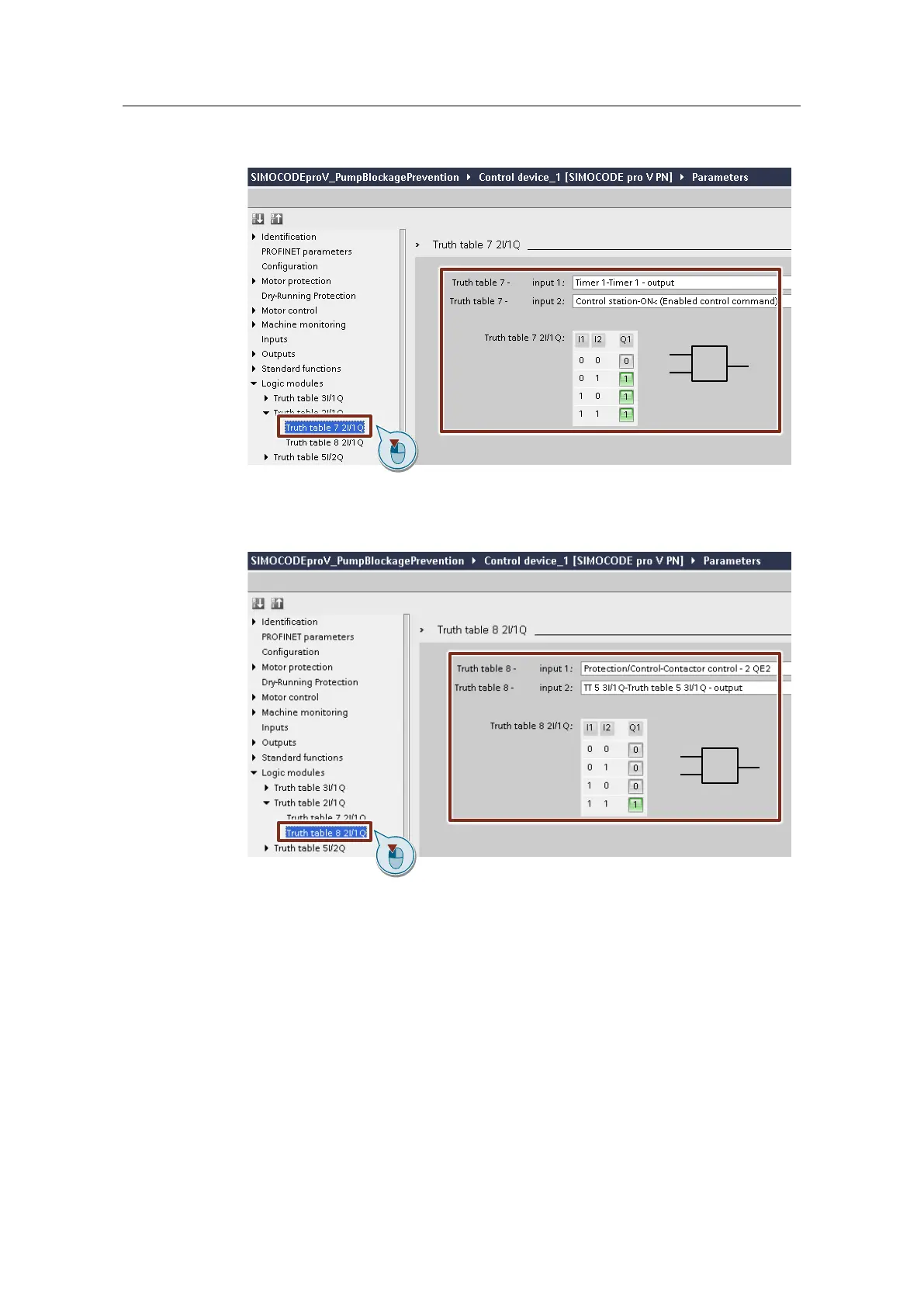

7. Under "Logic modules > Truth table 2I/1O > Truth table 7", define the signals
and logic of truth table 7 (TT7).
I1
I2
≥1
8. Under "Logic modules > Truth table 2I/1O > Truth table 8", define the signals
and logic of truth table 8 (TT8).
I1
I2
&
