3 Engineering
Blocking Protection for Pumps with SIMOCODE pro V
Article ID: 109478058, V2.0, 09/2020
48
© Siemens AG
2020 All rights reserved

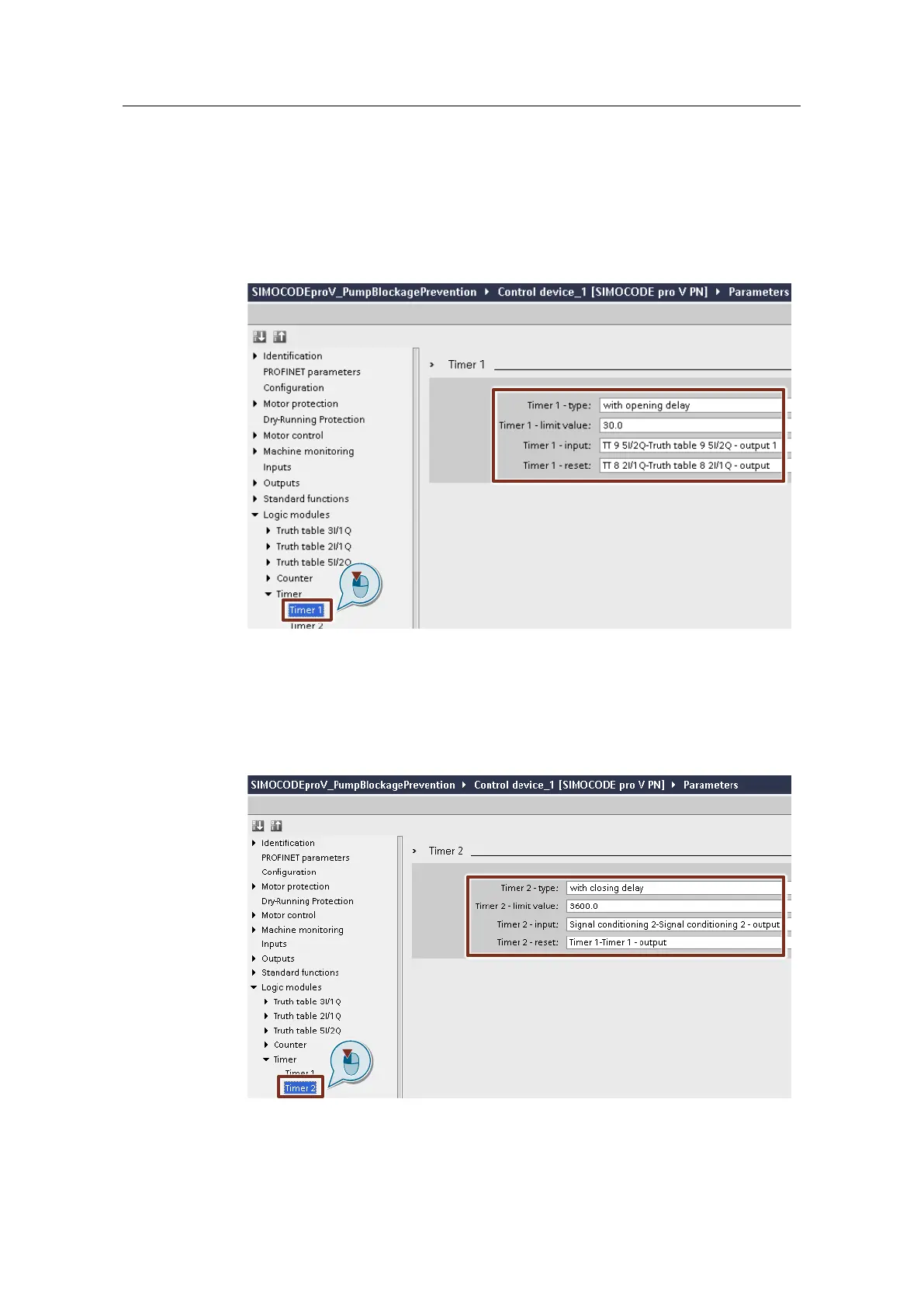

Timer
1. Define the following parameters under "Logic modules > Timer > Timer 1".
– Type: "with opening delay"
– Limit value: 30.0
– Input: Output 1 TT 9 (truth table 9)
– Reset: Output TT 8 (truth table 8)
2. Define the following parameters under "Logic modules > Timer > Timer 2".
– Type: "with closing delay"
– Limit value: 3600.0
– Input: Output signal conditioning 2
– Reset: Output Timer 1
