Signal conditioning

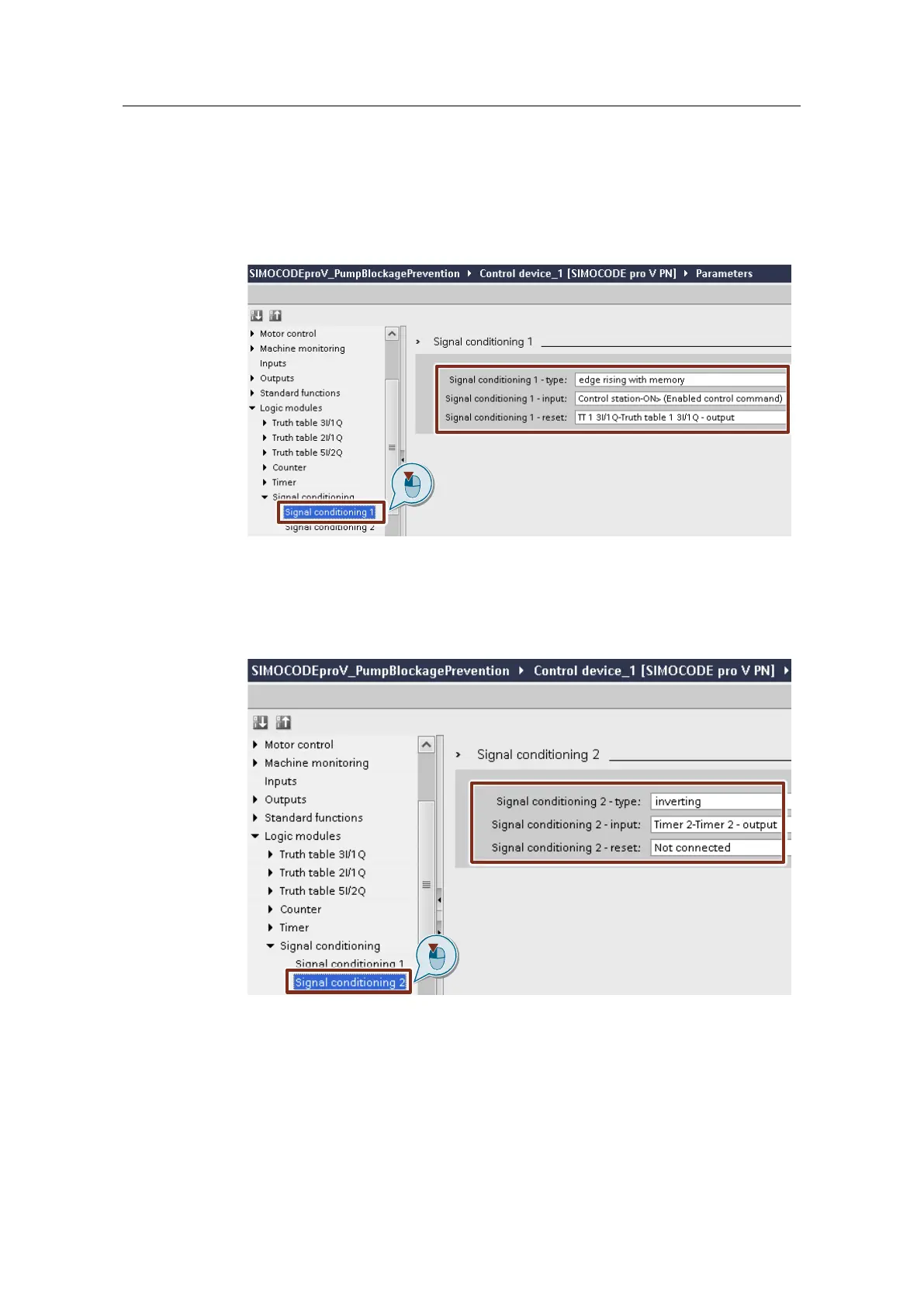

1. Define the following parameters under "Logic modules > Signal conditioning >
Signal conditioning 1".
– Type: "edge rising with memory"
– Input: Control command "ON>"
– Reset: Output TT 1 (truth table 1)
2. Define the following parameters under "Logic modules > Signal conditioning >
Signal conditioning 2".
– Type: "inverting"
– Input: Output Timer 2
3. Define the following parameters under "Logic modules > Signal conditioning >
Signal conditioning 3".
– Type: "edge rising with memory"
– Input: OP button 1
– Reset: Output Counter 3
