Technical data
10.6 Mounting positions
BA 2030
140 Operating Instructions, 02/2021, A5E37880173A/RS-AM
10.6.6 Helical worm gearbox

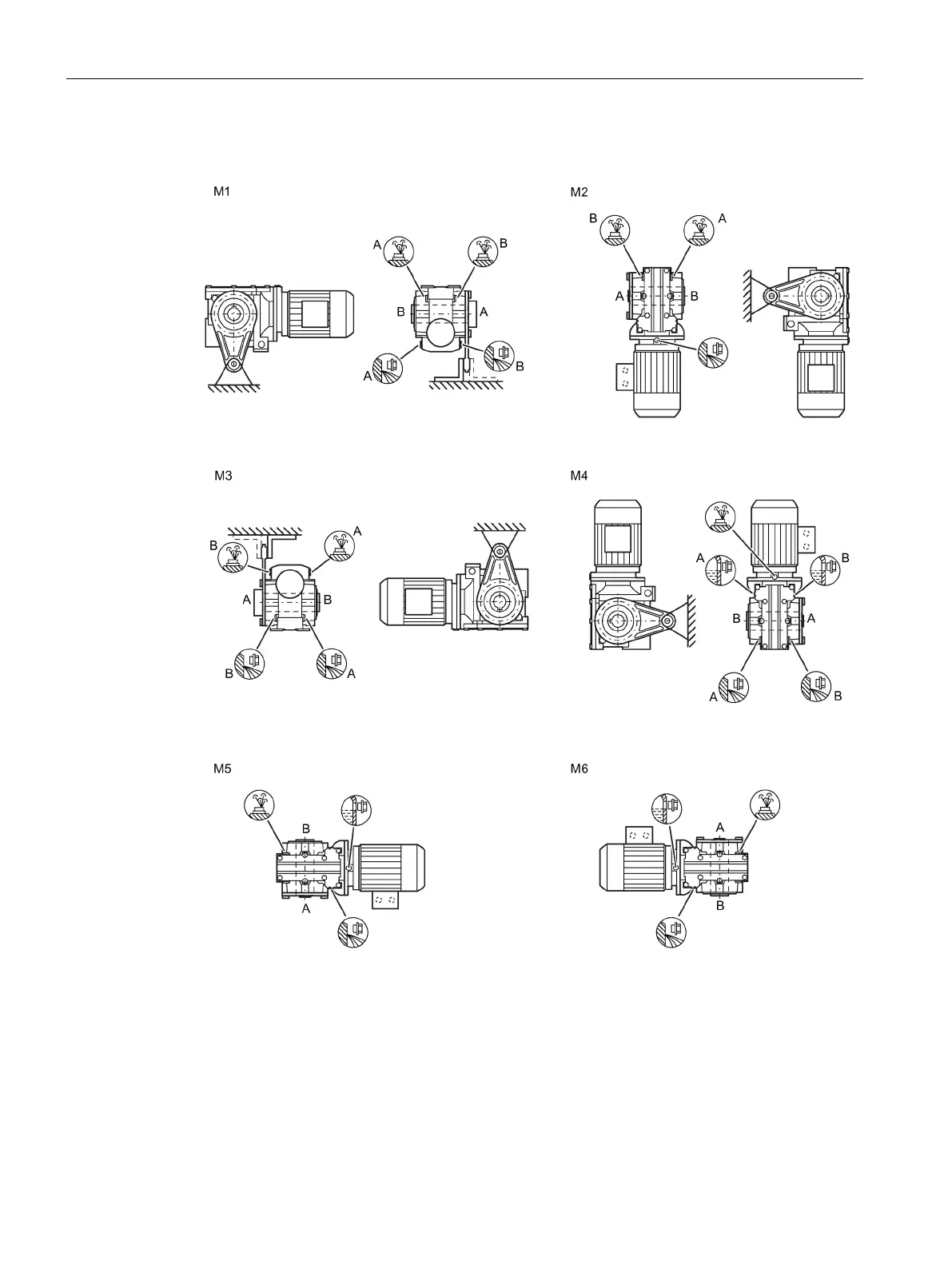

Figure 10-33 Mounting positions for helical worm gearbox CAD shaft-mounted design, size 29
