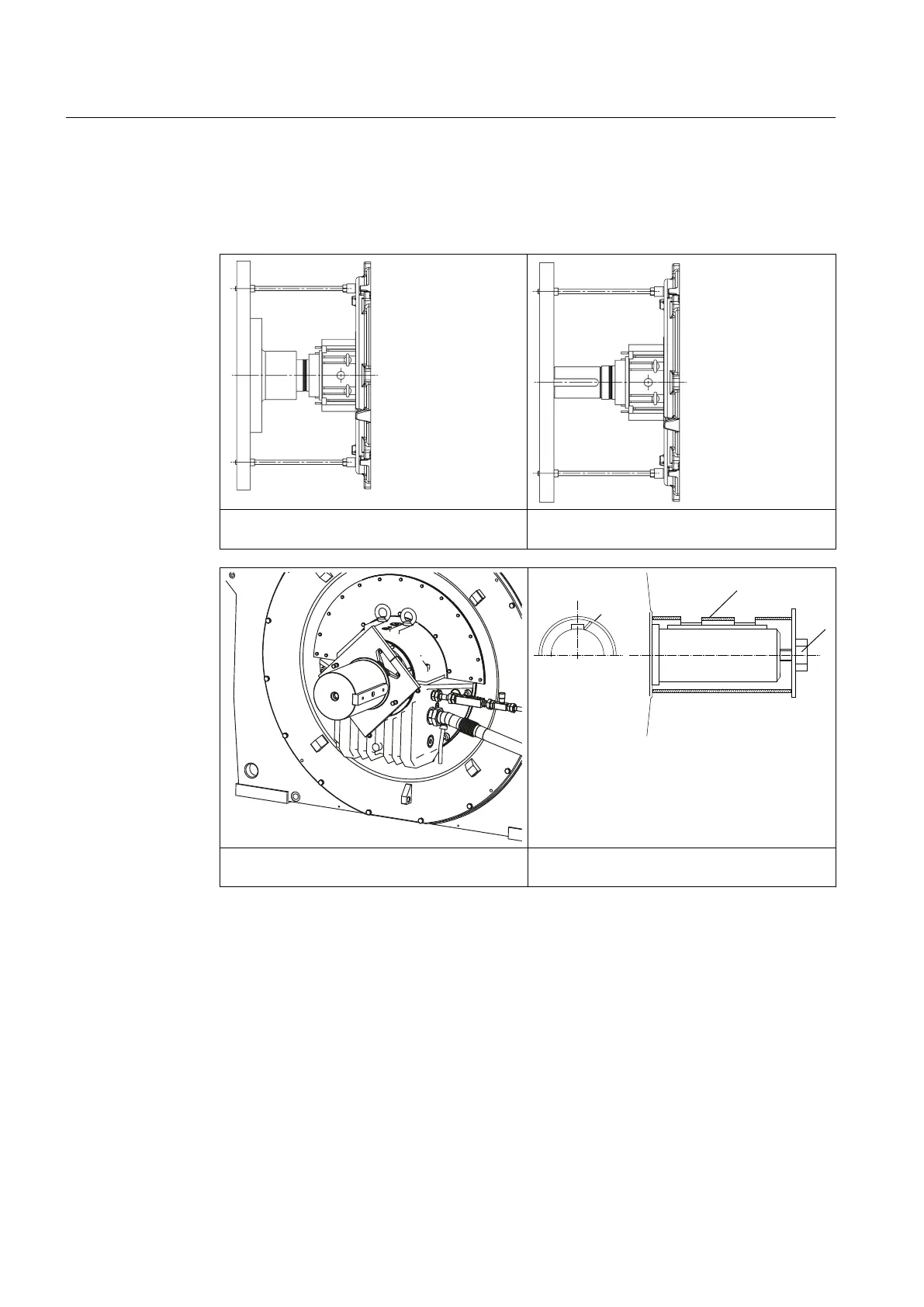

Alternative rotor bracing
● If you transport the machine after the output transmission element has been pulled on, then
you must axially fix the rotor in another way.
Roller bearing or journal bearing machine with
coupling
Machine with journal bearings without a coupling
Machine with journal bearings without a coupling
with shaft clamp lock
Roller bearing machine without coupling (sleeve
①, shaft screw and washer ②)
Preparations for use
4.13 Transport and storage
SIMOTICS HV C 1NB1402-2AA84-4CA0-Z
32 Operating Instructions 06/2018
