10.3 Main terminal box, type 9-103 472.60




















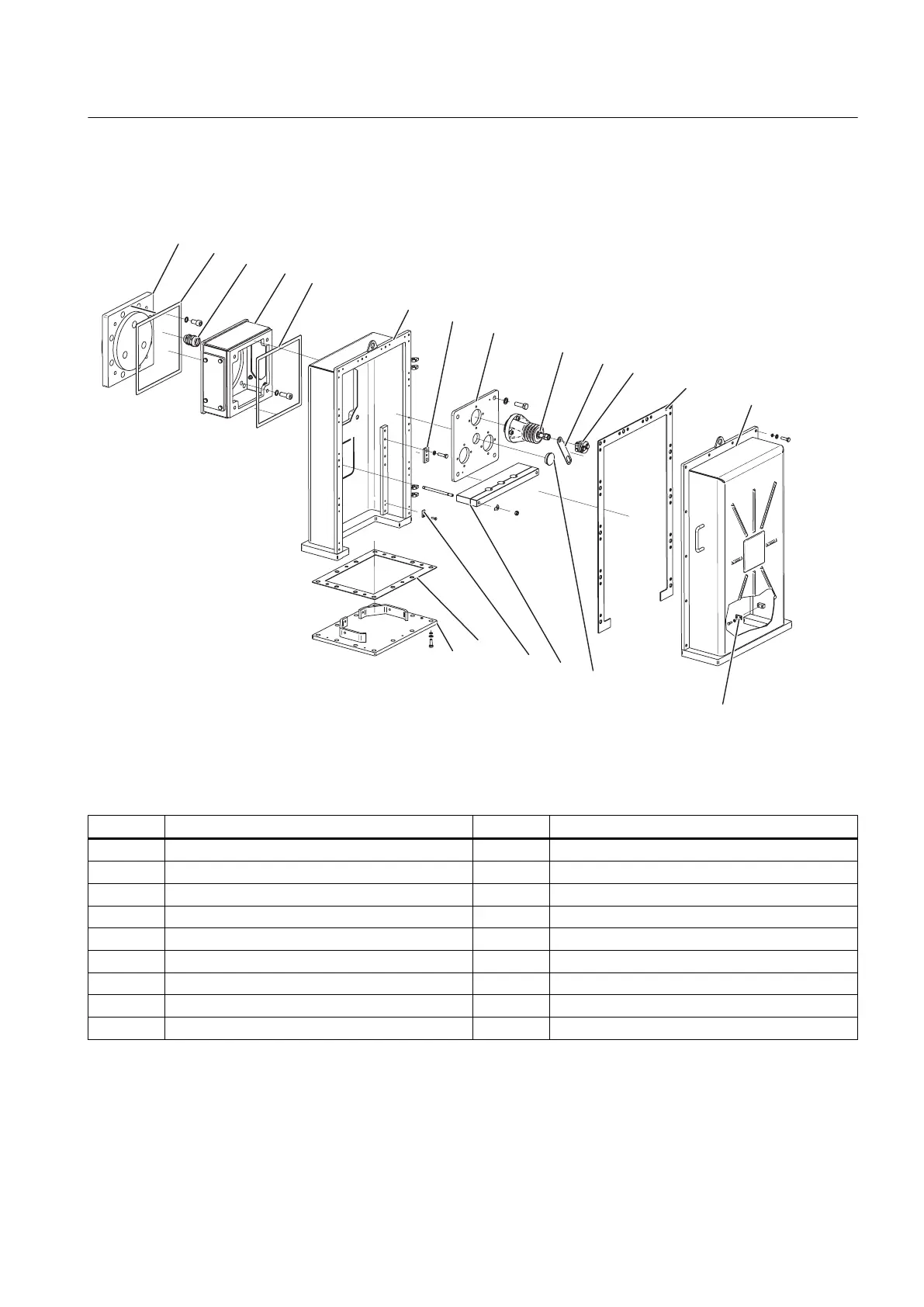

Figure 10-1 Terminal box 9-103 472.60
Table 10-1 Spare parts, terminal box 9-103 472.60
Part Description Part Description
20.10 Adapter flange 20.64 Strain relief
20.14 Bushing holding plate for cable routing 20.71 Sealing plugs
20.17 Seal (terminal box side) 21.07 Screwed joint
20.18 Seal (motor side) 21.30 Bushing for main current, complete
20.21 Lower part of housing 22.10 Round terminal
20.22 Upper part of housing 22.39 Neutral point connection
20.28 Seal 22.73 Clamping lug for grounding
20.50 Cable entry plate 22.77 Fixing lug for equipotential bonding
20.58 Seal
