Dimension drawings
13

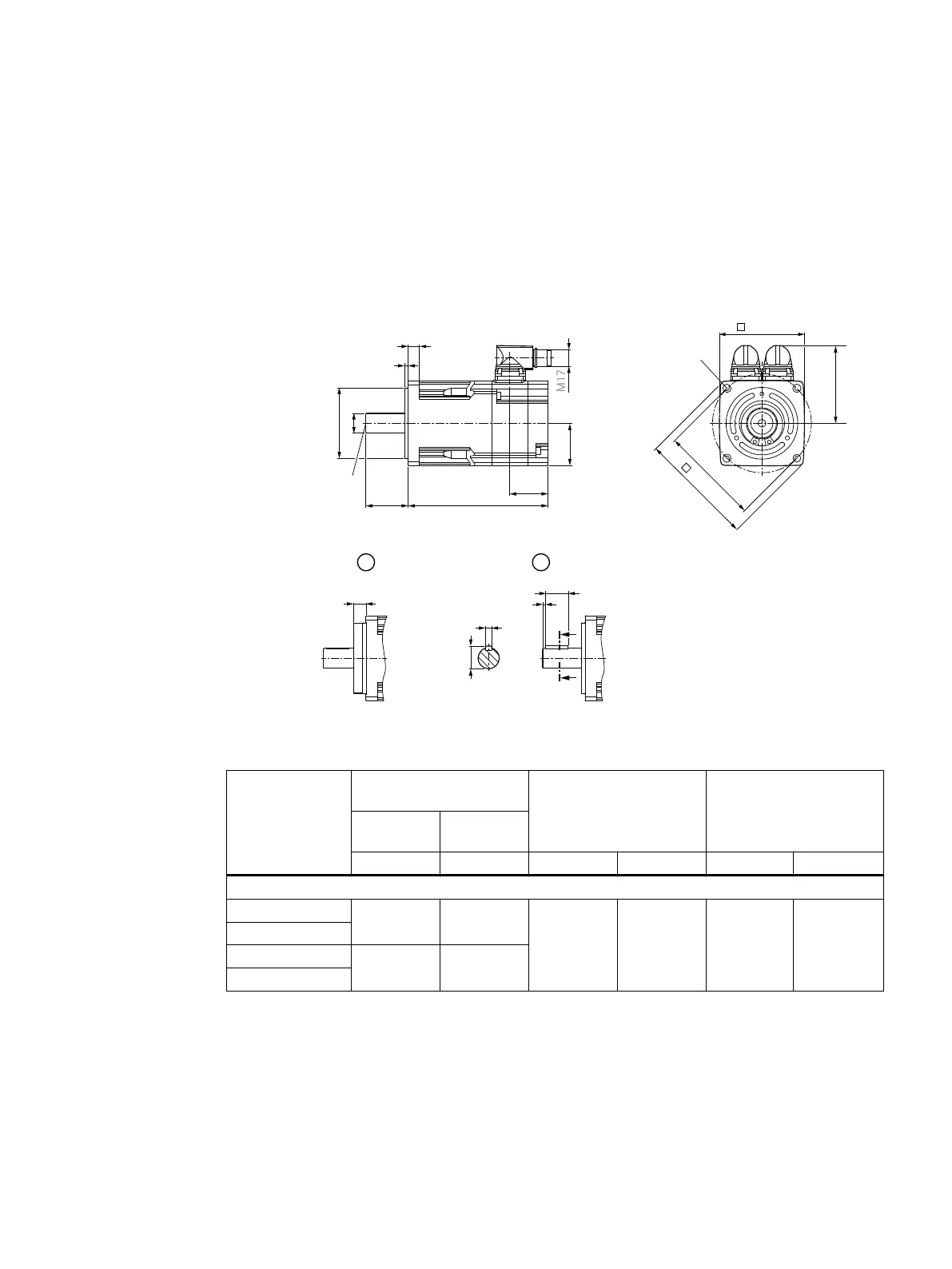

13.1 Dimension drawing 1F☐2☐03
The motor has the following dimensions in the following frame sizes:

'௑௑

%*/%3.GPS
%*/%3.GPS








LL


.
E




K

M
"
"
""
① Option with shaft sealing ring
② Option with feather key
Motor frame size Overall length of the mo‐
tor
Shaft option "0" or "1" Shaft option "2"
without
brake
with brake
k / mm k1 / mm d / mm l / mm d / mm l / mm
Motors max. 480 V
1F☐2103-2AH 99 131 14 (h6) 30 11 (k6) 23
1F☐2203-2AK
1F☐2103-4AH 123 155
1F☐2203-4AK
You will 󹪝nd further dimensions in the dimension drawings in the relevant catalog.
SIMOTICS S-1FK2 synchronous motors for SINAMICS S120
Operating Instructions, 02/2022, A5E46089564B AD 107
