Siemens SIMOTICS S-1FK2 User Manual

Motor rating plate
EN60034

m: 6 kg
RN 000
IC410IP 64
Th.Cl.155 (F)U
iN
260 V
n
N
3000 r/min
n
max
6000 r/min
I
N
4,15 A
I
0
4,5 A
M
N
5,4 Nm
Z:
3 ~ Mot. S YF K9662 3157 01 003
Encoder AM22DQC G02
Siemens AG, DE-97616 Bad Neustadt Made in Germany
M
0
6 Nm
1FK2206-2AF0
0-1MB0
SIMOTICS 1P 1FK2206-2AF0
0-1MB0

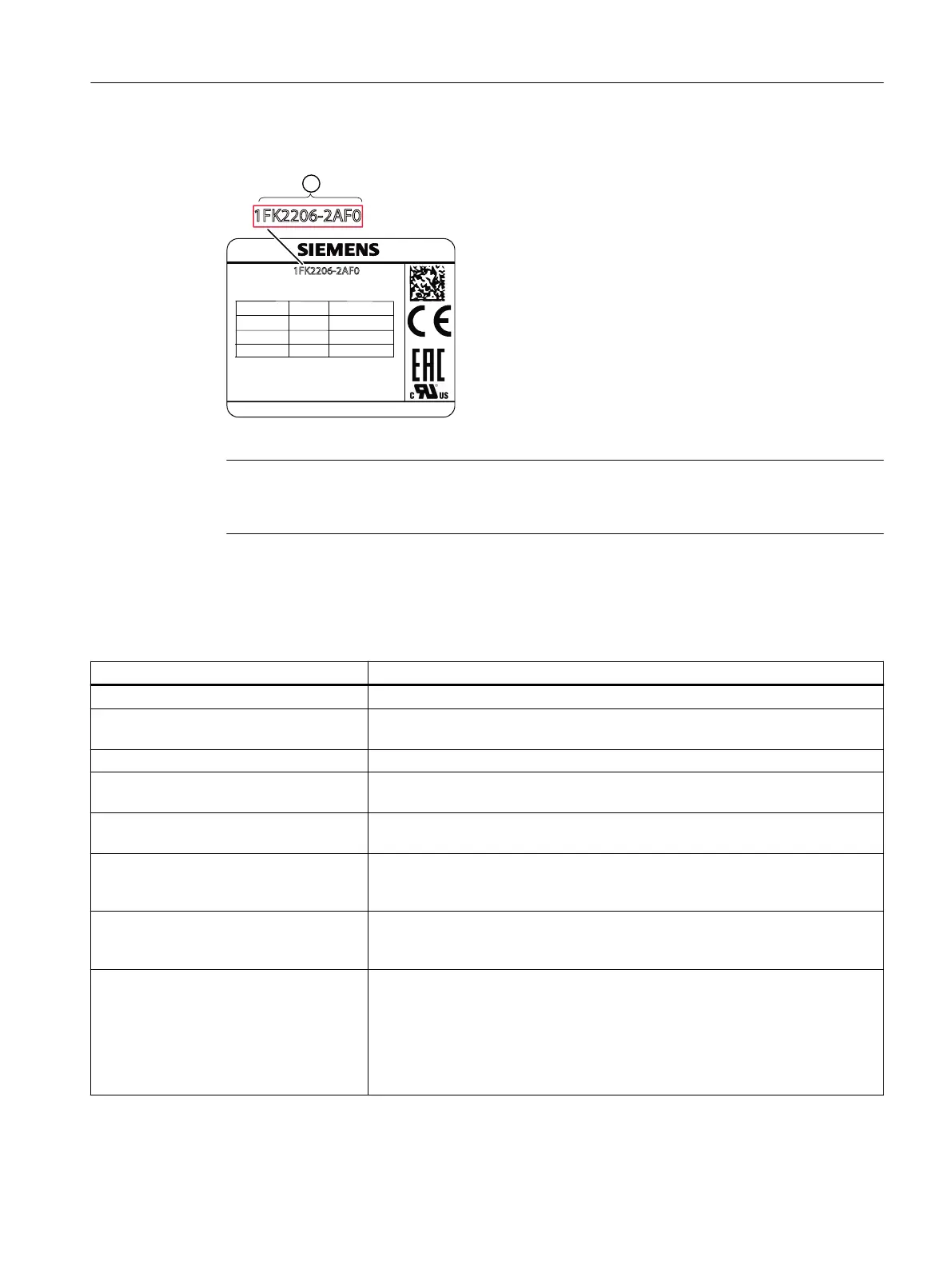

Figure 2-2 ② Article number of the basic motor type (example illustration for 1FK2)
Note
The article number ① stated on the China Energy Label corresponds to the article number of the
basic motor type ② (boldface type) in the motor article number.
2.2.2 General technical features
Property Version
Type of motor Permanent-magnet synchronous motor
Degree of protection according to
EN 60034-5 (IEC 60034-5)
IP64, optionally IP65
Cooling acc. to EN 60034-6 Natural cooling (IC410)
Type of construction according to
EN 60034-7 (IEC 60034-7)
IM B5 (IM V1, IM V3)
Shaft extension according to DIN 748-3
(IEC 60072-1)
Plain shaft or with 󹪝tted key (half key balancing)
Shaft and 󹪞ange accuracy acc. to
DIN 42955 (IEC 60072–1)
Tolerance N (normal), for radial eccentricity of the shaft extension, concentricity
of centering edge, and axial eccentricity of the mounting 󹪞ange to the axis of the
shaft extension
Vibration severity grade according to EN
60034-14
(IEC 60034-14)
Grade A is maintained up to rated speed
Insulation of the stator winding according
to EN 60034-1
(IEC 60034-1)
1FK2☐03:
Temperature class 130 (B) for a winding temperature of ΔT = 80 K at an ambient
temperature of +40 °C
1FK2☐04 ... 1FK2☐10:
Temperature class 155 (F) for a winding temperature of ΔT = 100 K at an ambient
temperature of +40 °C
Description of the motors
2.2 Technical characteristics and ambient conditions
SIMOTICS S-1FK2 synchronous motors for SINAMICS S120
Operating Instructions, 02/2022, A5E46089564B AD 23
