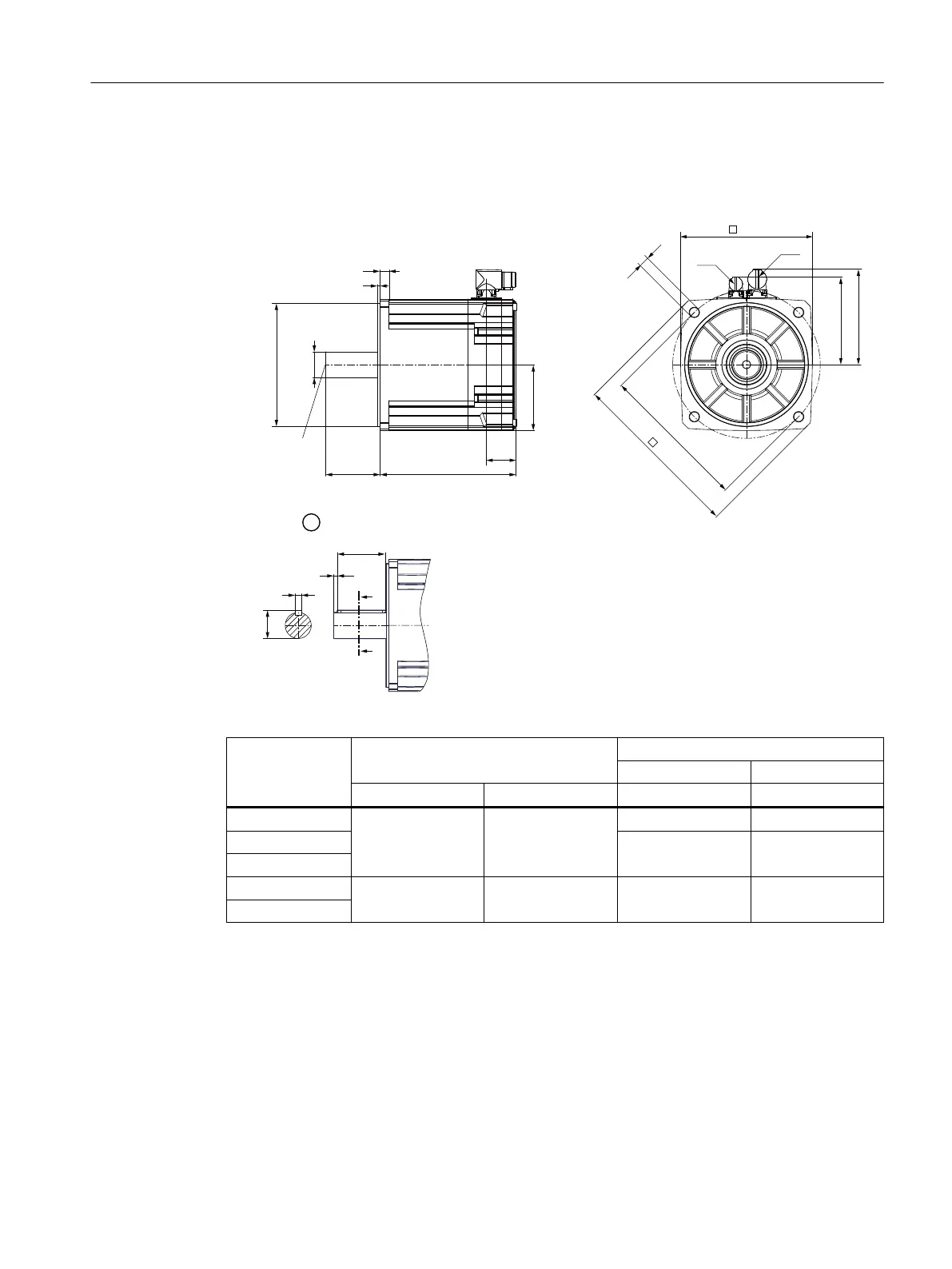

13.7 Dimension drawing 1F☐2210
The motor has the following dimensions in the following frame sizes:



I
'௑

%*/%3.

LL







""
"
"

K

L



.
H
① Option with feather key
Motor frame size Connectors Overall length of the motor
without brake with brake
g1 h1 k / mm k1 / mm
1F☐2210-3A☐ M23 139 198 257
1F☐2210-4AB 223 282
1F☐2210-4AC
1F☐2210-4AF M40 159 248 307
1F☐2210-5A☐
You will 󹪝nd further dimensions in the dimension drawings in the relevant catalog.
Dimension drawings
13.7 Dimension drawing 1F☐2210
SIMOTICS S-1FK2 synchronous motors for SINAMICS S120
Operating Instructions, 02/2022, A5E46089564B AD 113
