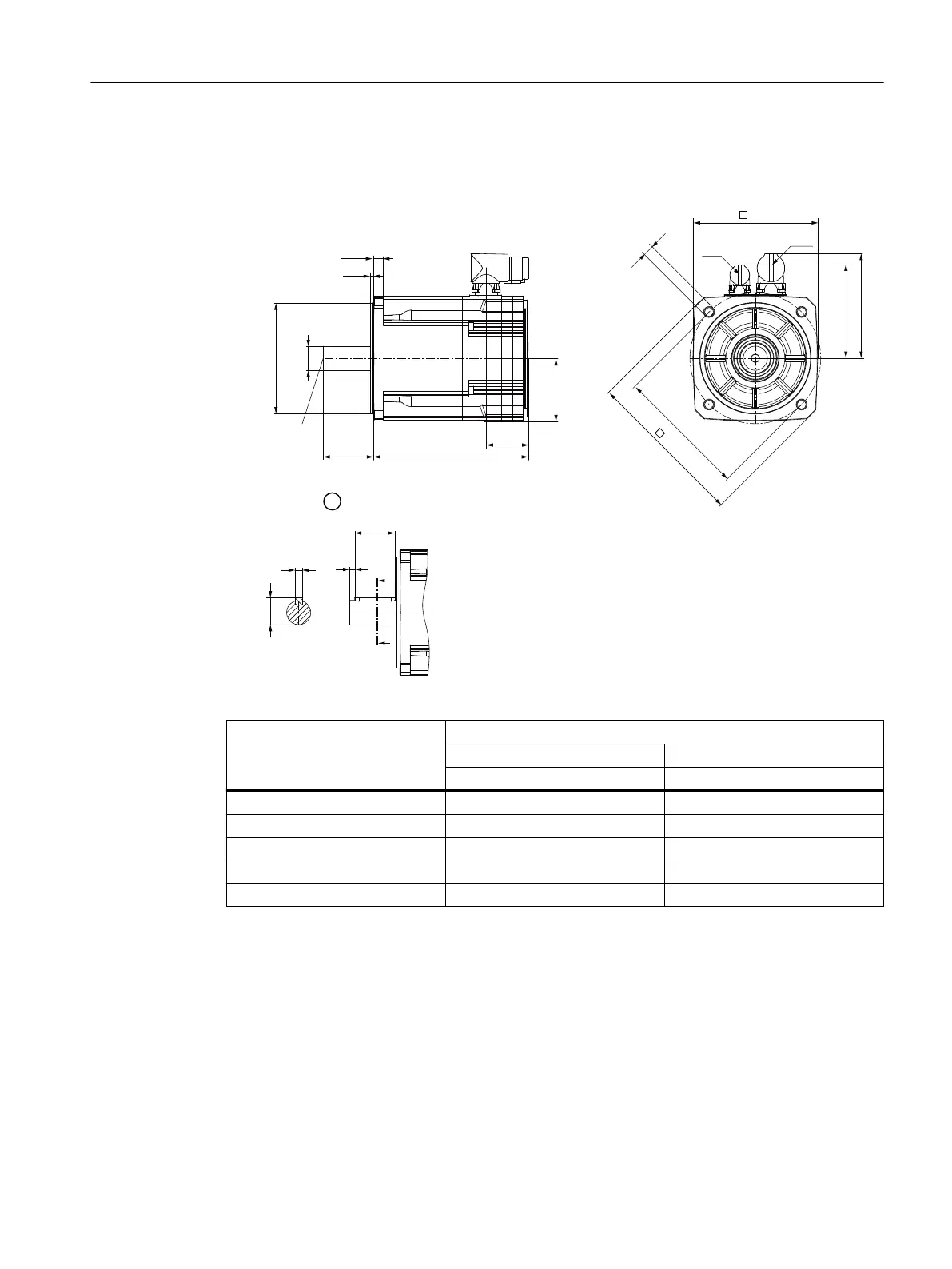

13.5 Dimension drawing 1F☐2☐06
The motor has the following dimensions in the following frame sizes:

.
.

PP


%*/%3.

LL


L

K
""



"
"


'௑௑





① Option with feather key
Motor frame size Overall length of the motor
without brake with brake
k / mm k1 / mm
1F☐2106-3 174 225
1F☐2106-4 193 244
1F☐2106-6 232 283
1F☐2206-2 154 205
1F☐2206-4 193 244
You will 󹪝nd further dimensions in the dimension drawings in the relevant catalog.
Dimension drawings
13.5 Dimension drawing 1F☐2☐06
SIMOTICS S-1FK2 synchronous motors for SINAMICS S120
Operating Instructions, 02/2022, A5E46089564B AD 111
