13.3 Dimension drawing 1F☐2105

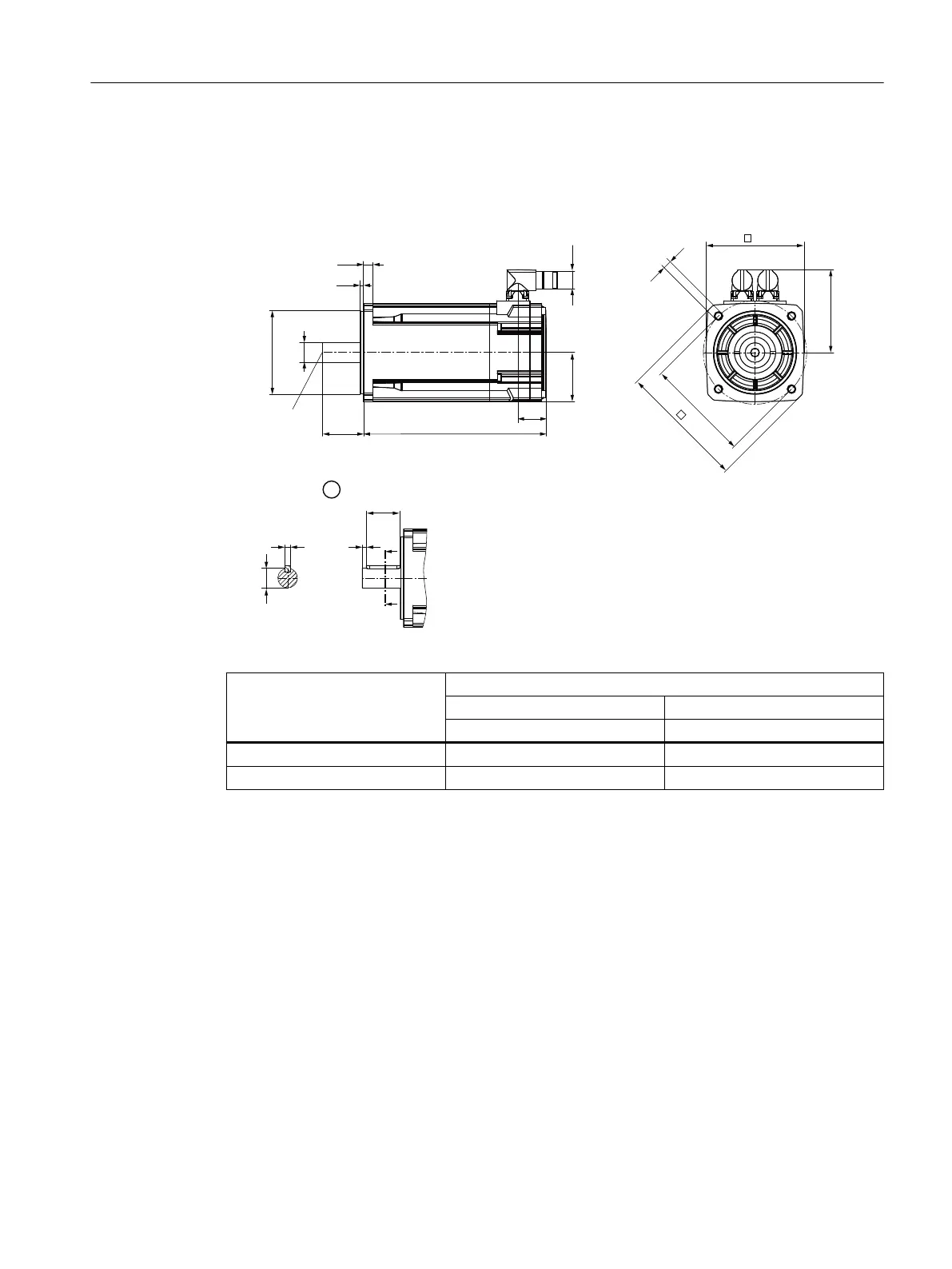

The motor has the following dimensions in the following frame sizes:


'௑





%*/%3.


.
LL


L

K
""
"
"







① Option with feather key
Motor frame size Overall length of the motor
without brake with brake
k / mm k1 / mm
1F☐2105-4 173 200
1F☐2105-6 215 242
You will 󹪝nd further dimensions in the dimension drawings in the relevant catalog.
Dimension drawings
13.3 Dimension drawing 1F☐2105
SIMOTICS S-1FK2 synchronous motors for SINAMICS S120
Operating Instructions, 02/2022, A5E46089564B AD 109
