13.6 Dimension drawing 1F☐2208

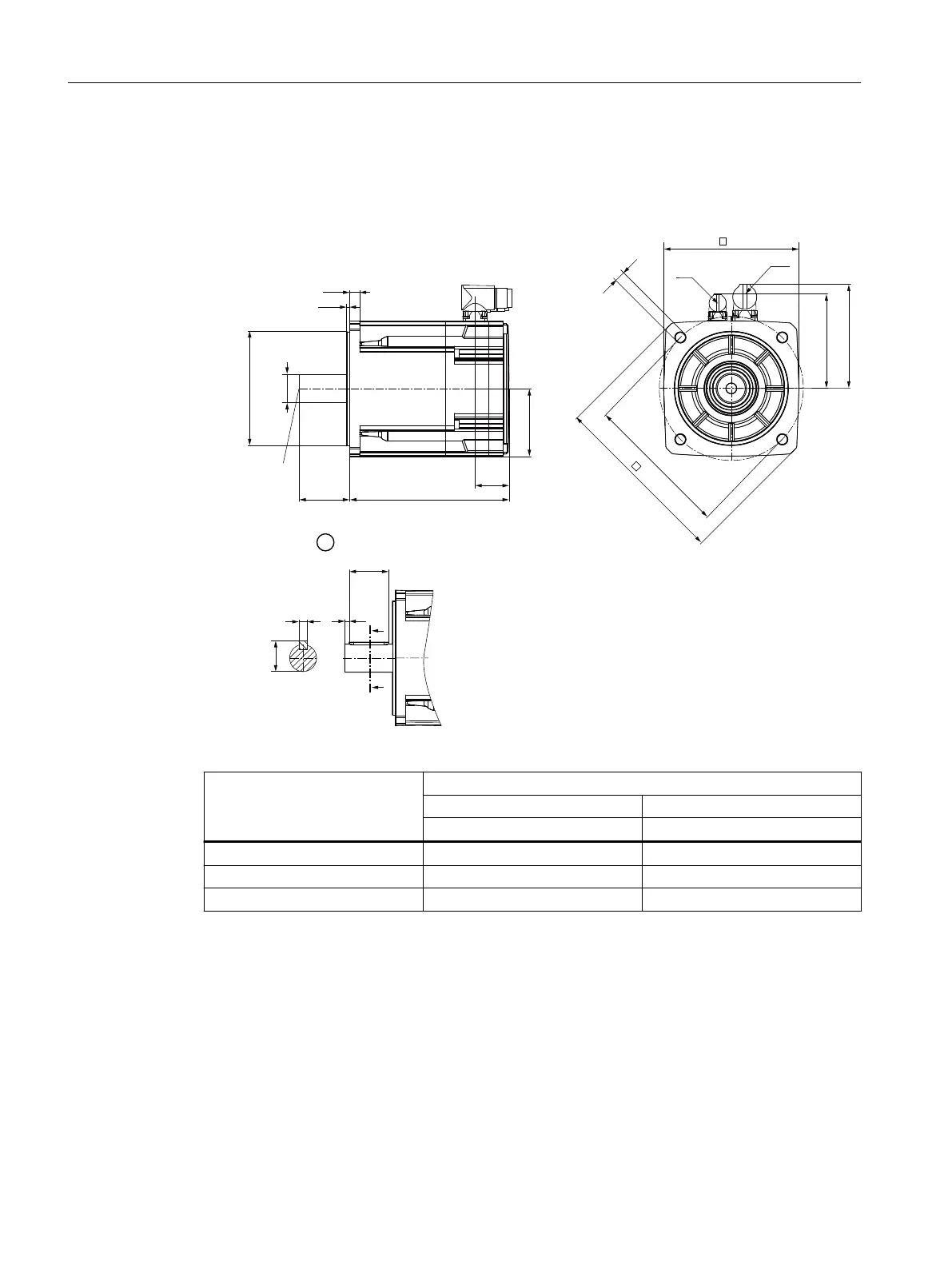

The motor has the following dimensions in the following frame sizes:




%*/%3.

LL



L

K





""
"
"




'௑
.
.

① Option with feather key
Motor frame size Overall length of the motor
without brake with brake
k / mm k1 / mm
1F☐2208-3 183 236
1F☐2208-4 203 256
1F☐2208-5 223 276
You will 󹪝nd further dimensions in the dimension drawings in the relevant catalog.
Dimension drawings
13.6 Dimension drawing 1F☐2208
SIMOTICS S-1FK2 synchronous motors for SINAMICS S120
112 Operating Instructions, 02/2022, A5E46089564B AD
