2.4 Rating plate data
Rating plate
The rating plate contains the article number and the technical data of the motor.
+
SIMOTICS 1P 1FK2206-2AF10-1MB0
M
0
6 Nm
Brake 24 VDC 17W 13Nm
Siemens AG, DE-97616 Bad Neustadt Made in Germany
Encoder AM22DQC G02
3 ~ Mot. S YF K9662 3157 01 003
Z:
M
N
5,4 Nm
I
0
4,5 A
I
N
4,15 A
n
max
6000 r/min
n
n
3000 r/min
U
iN
260 V Th.Cl.155 (F)
IP 64 IC410
RN 000
m: 8 kg
EN6003

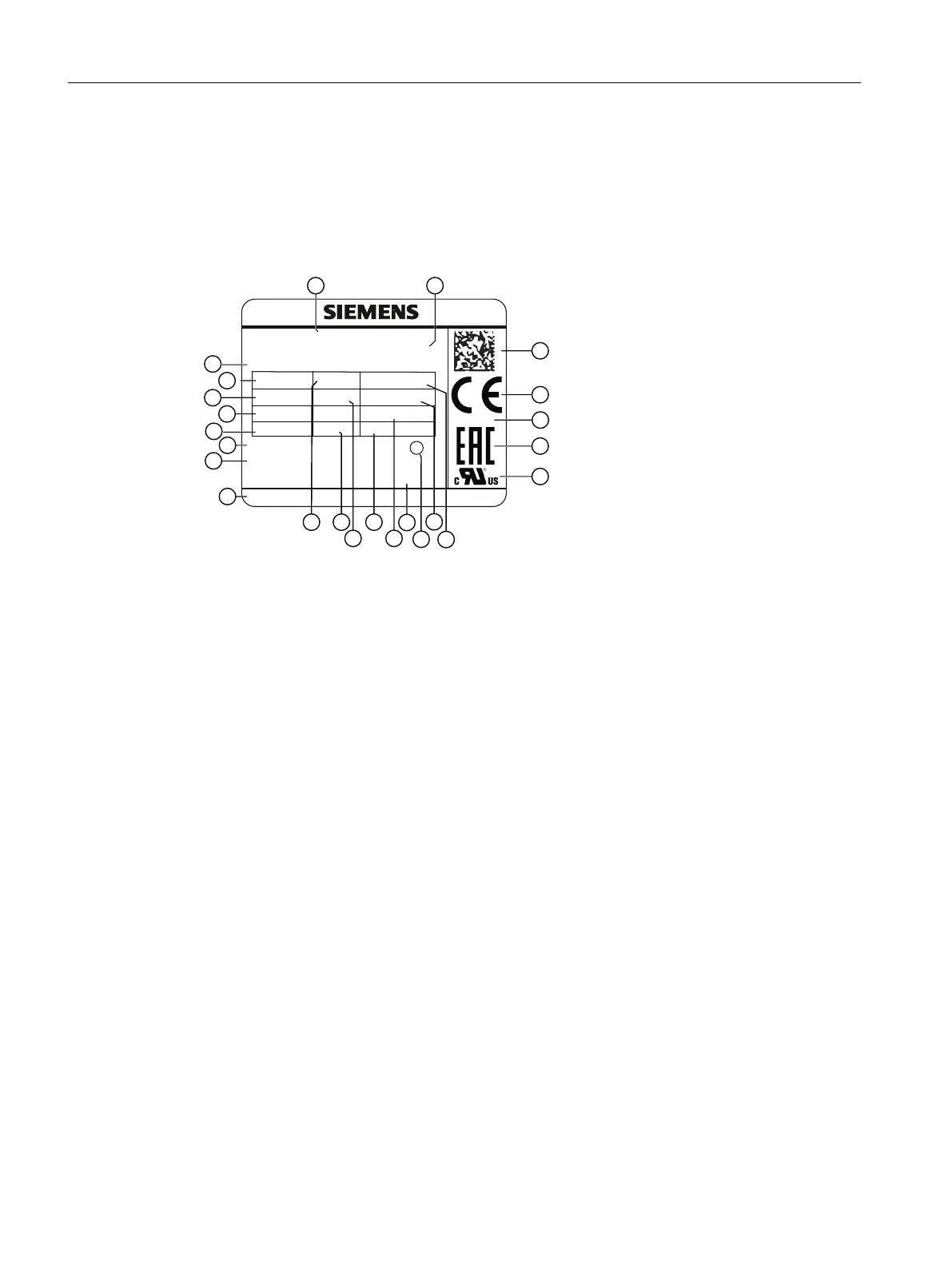

Figure 2-4 Rating plate 1FK2 for S210 (example illustration)
Position Description / technical specications Position Description / technical specications
1 Article number 12 Degree of protection
2 ID No., serial number 13 Rated current I
N
3 Order codes as a supplement to the
article number.
14 Cooling method according to
EN 60034-6
4 Static torque M
0
15 Temperature class of the insulation
system
5 Rated torque M
N
16 Revision
6 Induced voltage at rated speed U
IN
17 Type of balancing (only for motors
with feather key)
7 Motor weight m 18 Rated speed n
N
8 Marking of encoder type 19 Maximum permissible speed of the
motor n
max
9 Data of the holding brake 20 Certications
10 Manufacturer's address 21 Standard for all rotating electrical ma‐
chines
11 Stall current I
0
22 Data matrix code
Description of the motors
2.4 Rating plate data
SIMOTICS S-1FK2 synchronous motors for SINAMICS S120
32 Operating Instructions, 02/2022, A5E46089564B AD
