13.4 Dimension drawing 1F☐2205

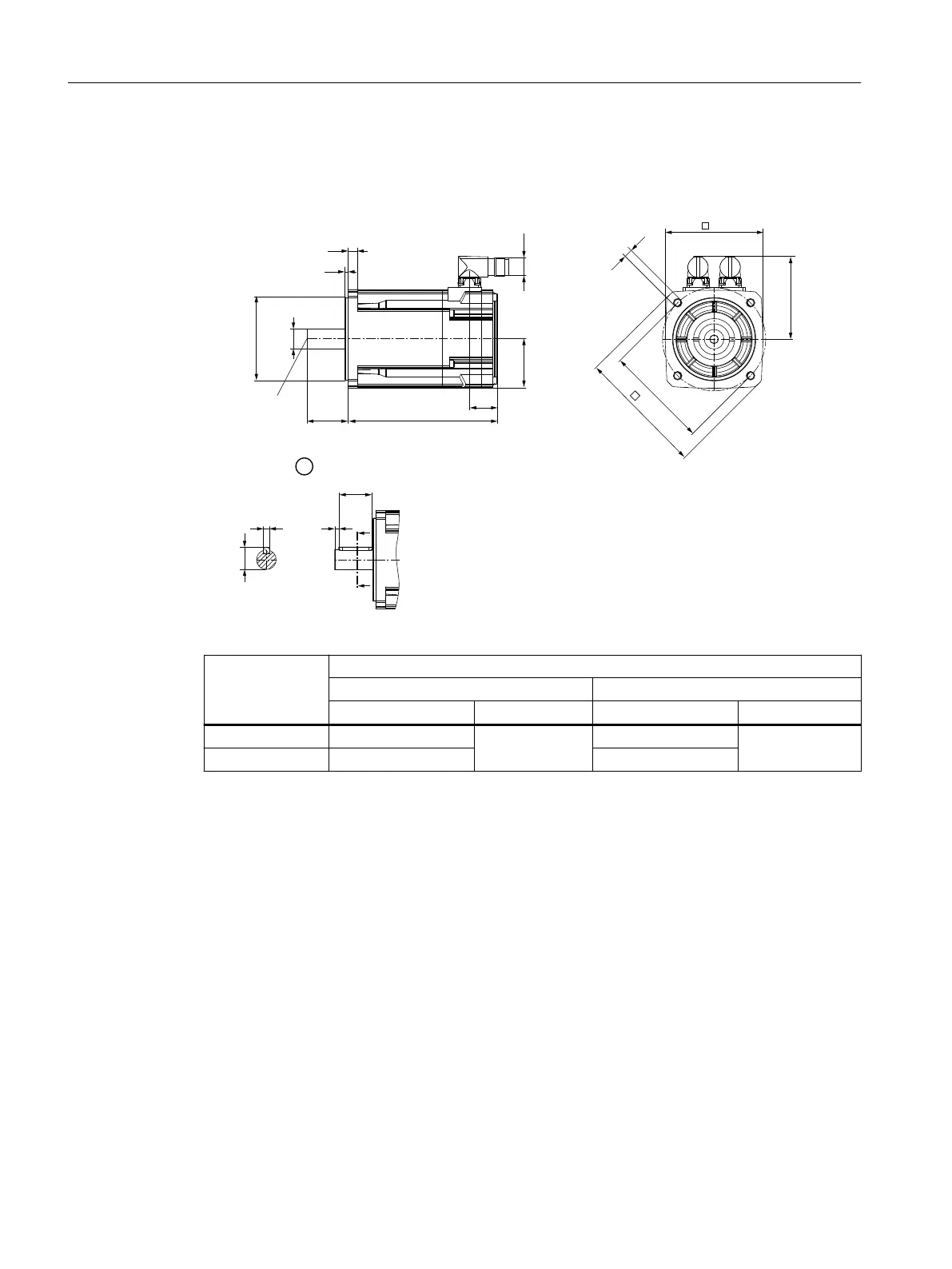

The motor has the following dimensions in the following frame sizes:






'௑


%*/%3.


.
LL


L

K
""
"
"
PP



① Option with feather key
Motor frame size Overall length of the motor
without brake with brake
k / mm o / mm k1 / mm o1 / mm
1F☐2205-2 145 41 188 53
1F☐2205-4 177 220
You will 󹪝nd further dimensions in the dimension drawings in the relevant catalog.
Dimension drawings
13.4 Dimension drawing 1F☐2205
SIMOTICS S-1FK2 synchronous motors for SINAMICS S120
110 Operating Instructions, 02/2022, A5E46089564B AD
