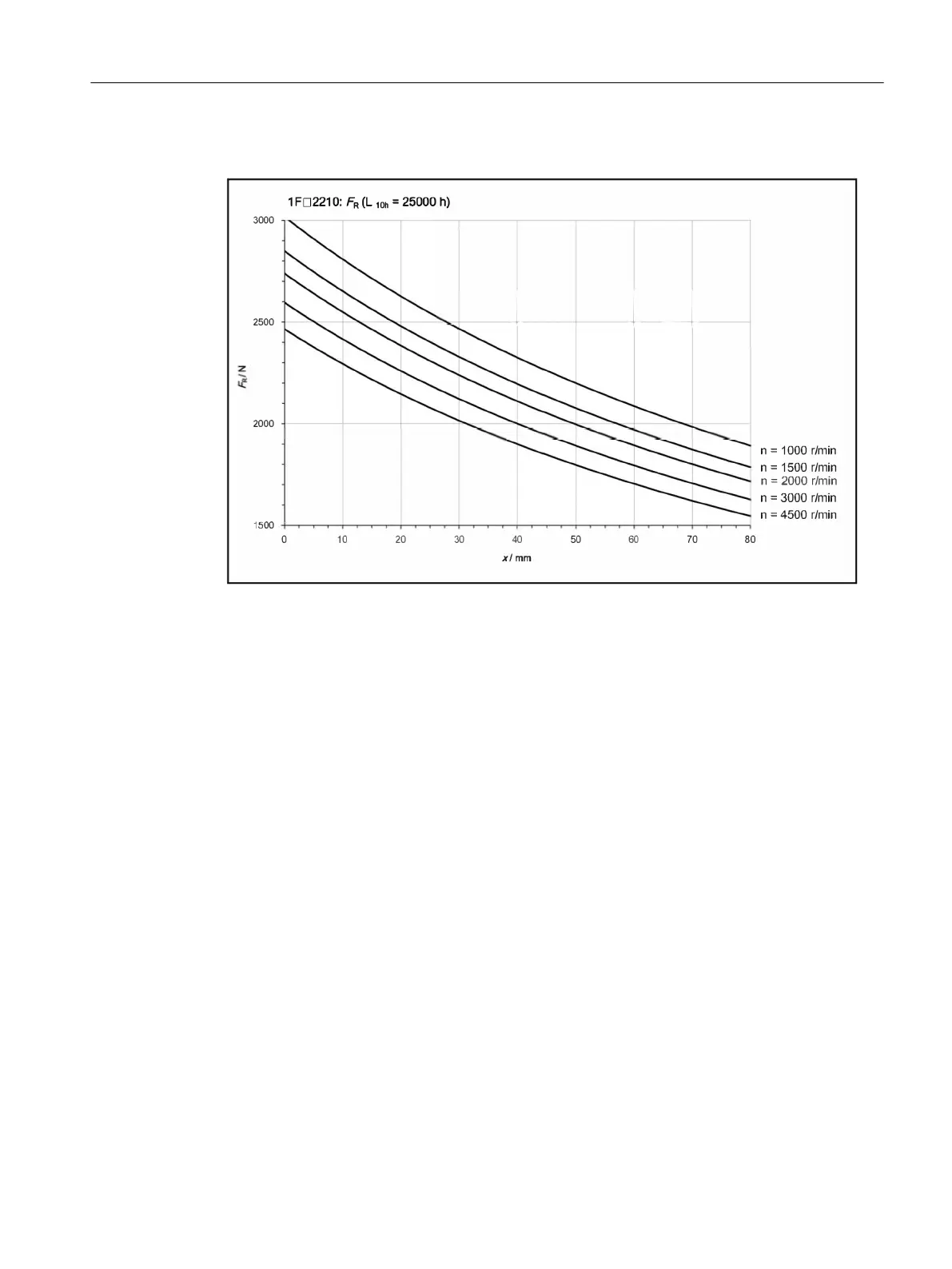

Radial force diagram 1F☐2210
Figure 3-8 Maximum permissible radial force F
R
at a distance x from the shaft shoulder for a nominal
bearing lifetime of 25000 h.
Mounting and options
3.4 Permissible radial and axial forces
SIMOTICS S-1FK2 synchronous motors for SINAMICS S120
Operating Instructions, 02/2022, A5E46089564B AD 43
