1. Turn the union nut of the SPEED-CONNECT connector in the direction of "open" to the end
stop. The triangles on the top of the connectors must be opposite one another.
2. Withdraw the connector.
Note
Pull out the connector at the connector itself, do not pull on the cable.
You have terminated the SPEED-CONNECT connection.
Routing cables in damp environments
If you are operating the motor in environments in which moisture can arise follow the
installation instructions below.
6,(0(16
6,(0(16
6,(0(16
6,(0(16
6,(0(16
6,(0(16

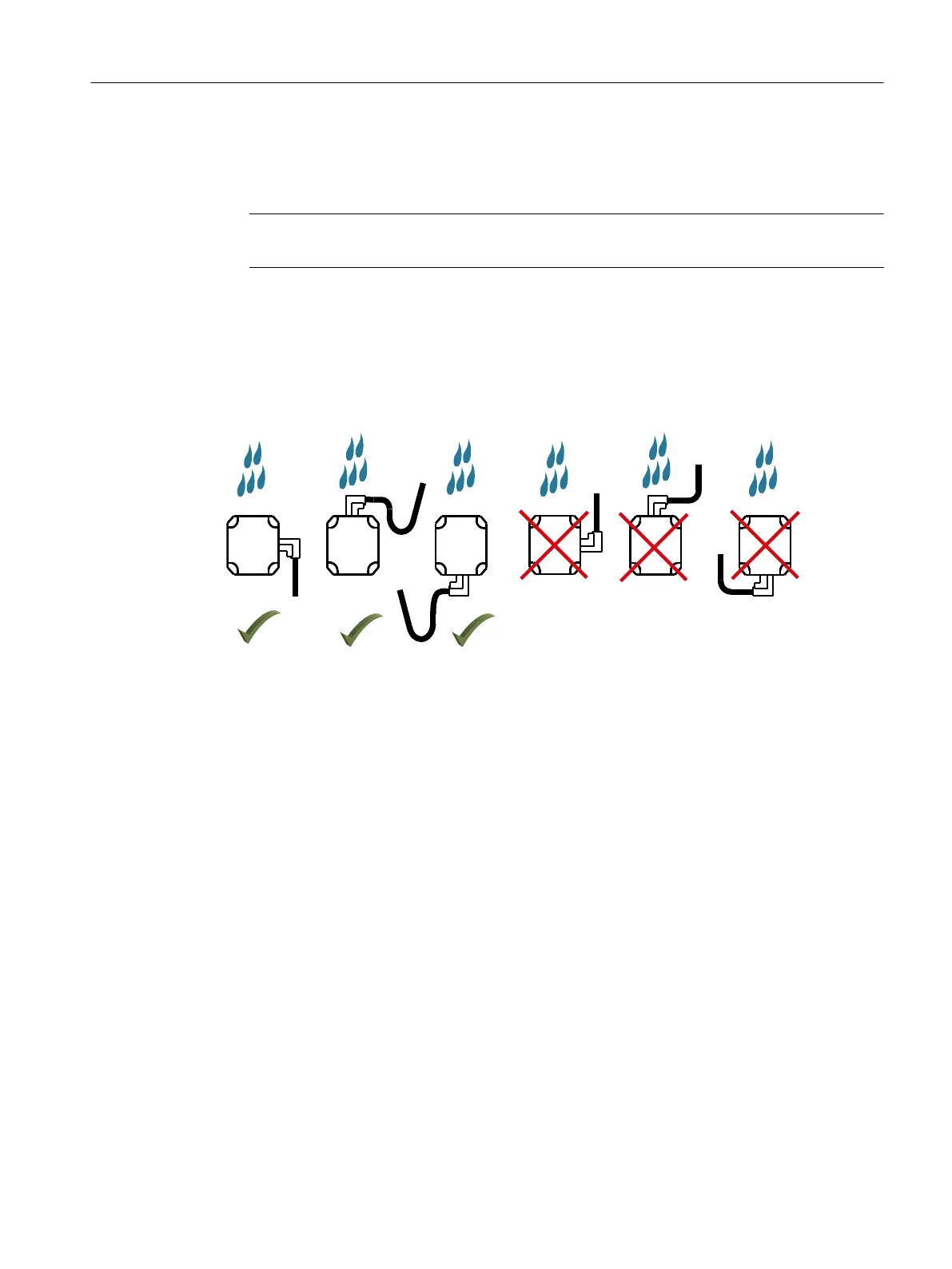

Figure 6-1 Permissible and impermissible cable routing when connecting in a damp environment
Connecting
6.3 System integration
SIMOTICS S-1FK2 synchronous motors for SINAMICS S120
Operating Instructions, 02/2022, A5E46089564B AD 79
