Electrical connection
8.3 System integration
S-1FT7 synchronous motors
Configuration Manual, 09/2018, A5E45099423B AA
379

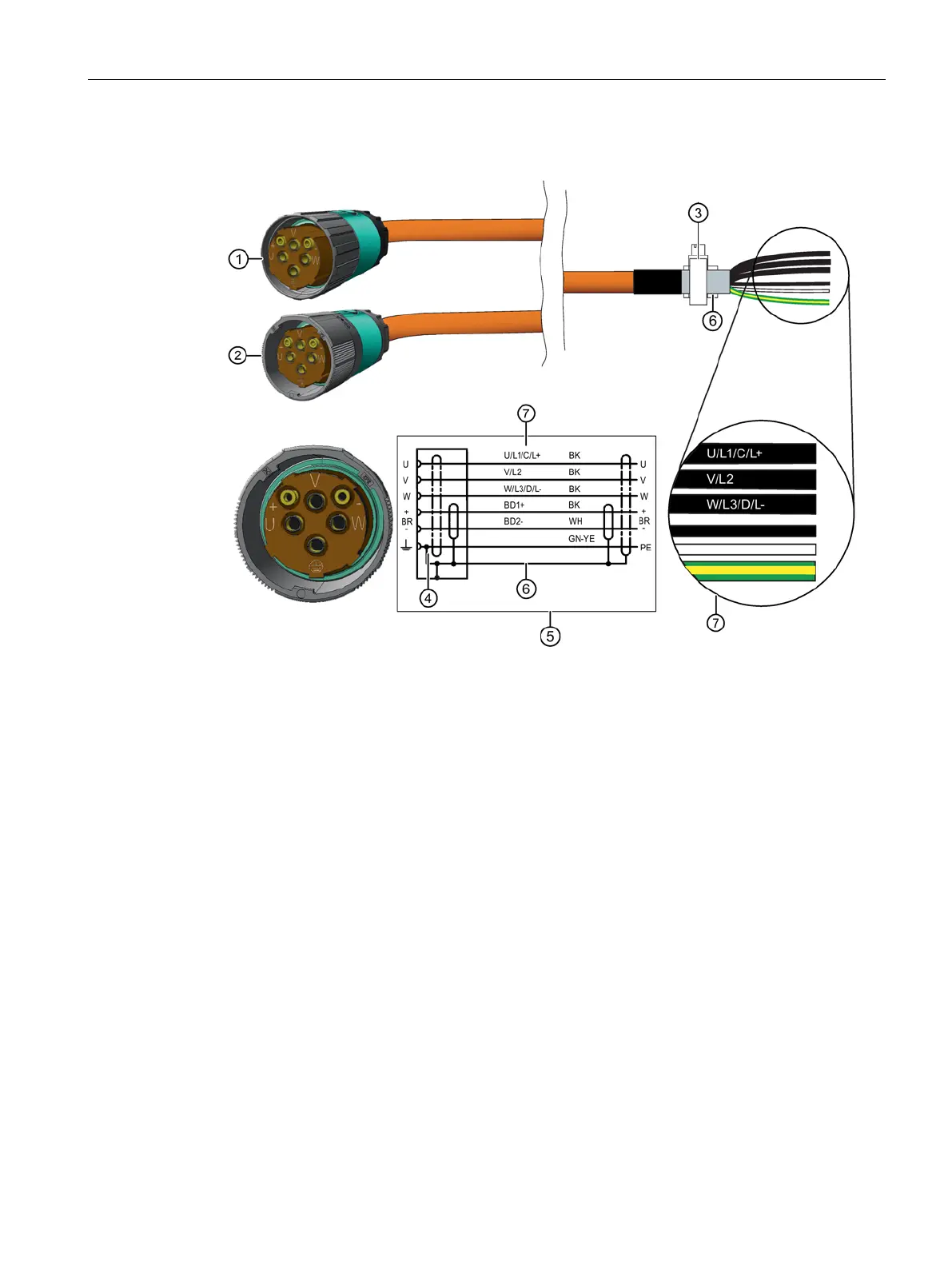

For connector size M40
1
Connector size M40
2
Connector SPEED-CONNECT M40
3
Terminal for the cable shield
4
Pin assignment
5
Circuit diagram
6
Cable shield
7 Conductor designation:
U; V; W = power cables, each cable separately shielded
BD1+ and BD2- = brake cable without lettering, 1.5 mm
2
, shared shield
PE = protective conductor
