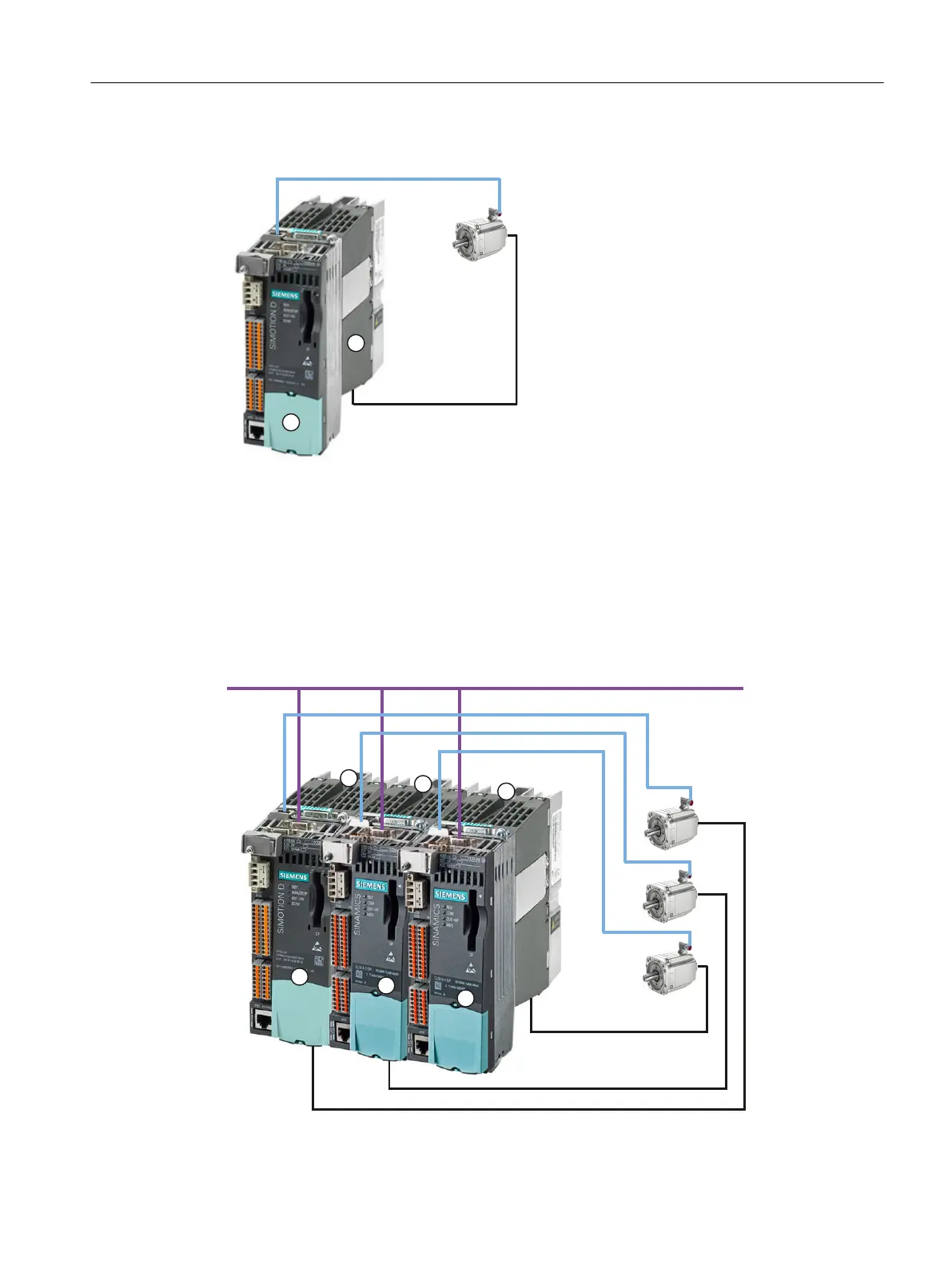

Example of a single-axis application
3RZHU
'5,9(&/L4
Figure 2-2 Application example with one axis
The example shows a single-axis application, consisting of a SIMOTION D410-2 (Control
Unit) that is snapped directly on to the SINAMICS Power Module in blocksize format .
The
motors are supplied with power via the Power Module. The encoder is connected by means
of DRIVE-CLiQ.
Example of a multi-axis application
3RZHU
352),%86'3
'5,9(&/L4
Figure 2-3 Application example with 3 axes
Description
2.1 System overview
SIMOTION D410-2
Commissioning and Hardware Installation Manual, 01/2015 25
