3.4 Mounting the SIMOTION D410-2 in the power module chassis

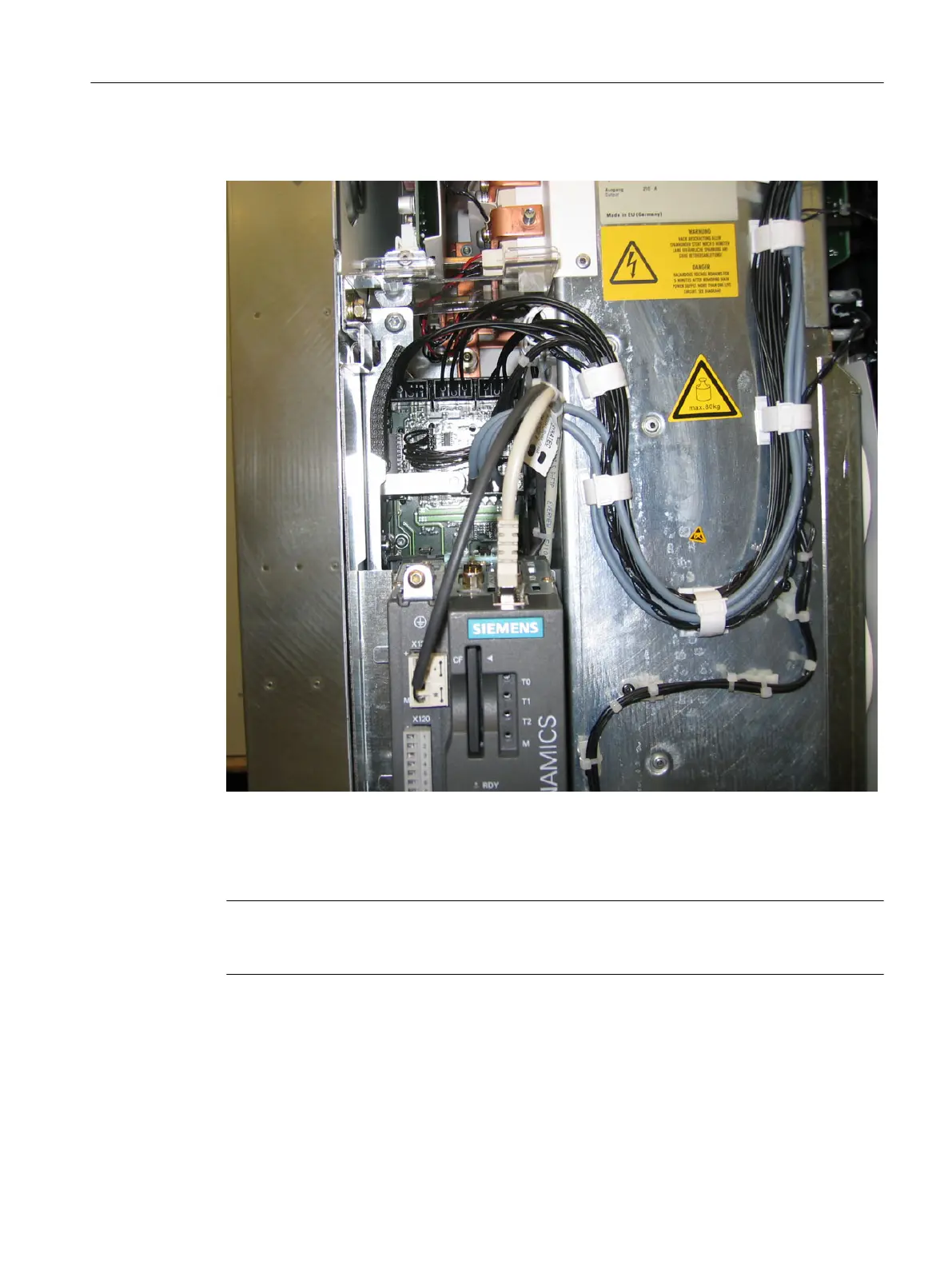

Figure 3-3 Mounting the CU310, for example, in the power module chassis, FX frame size
The
DRIVE-CLiQ cable and the cable for the 24 V supply must be correctly routed so that the
front flap can close.
Note
For the power module, a connecting cable is also supplied for the power supply of the
SIMOTION D410-2. This cable must be connected to the SIMOTION D410-2.
Installing
3.4 Mounting the SIMOTION D410-2 in the power module chassis
SIMOTION D410-2
Commissioning and Hardware Installation Manual, 01/2015 43
