Siemens SIMOTION D410-2DP/PN

Mounting on the Power Module

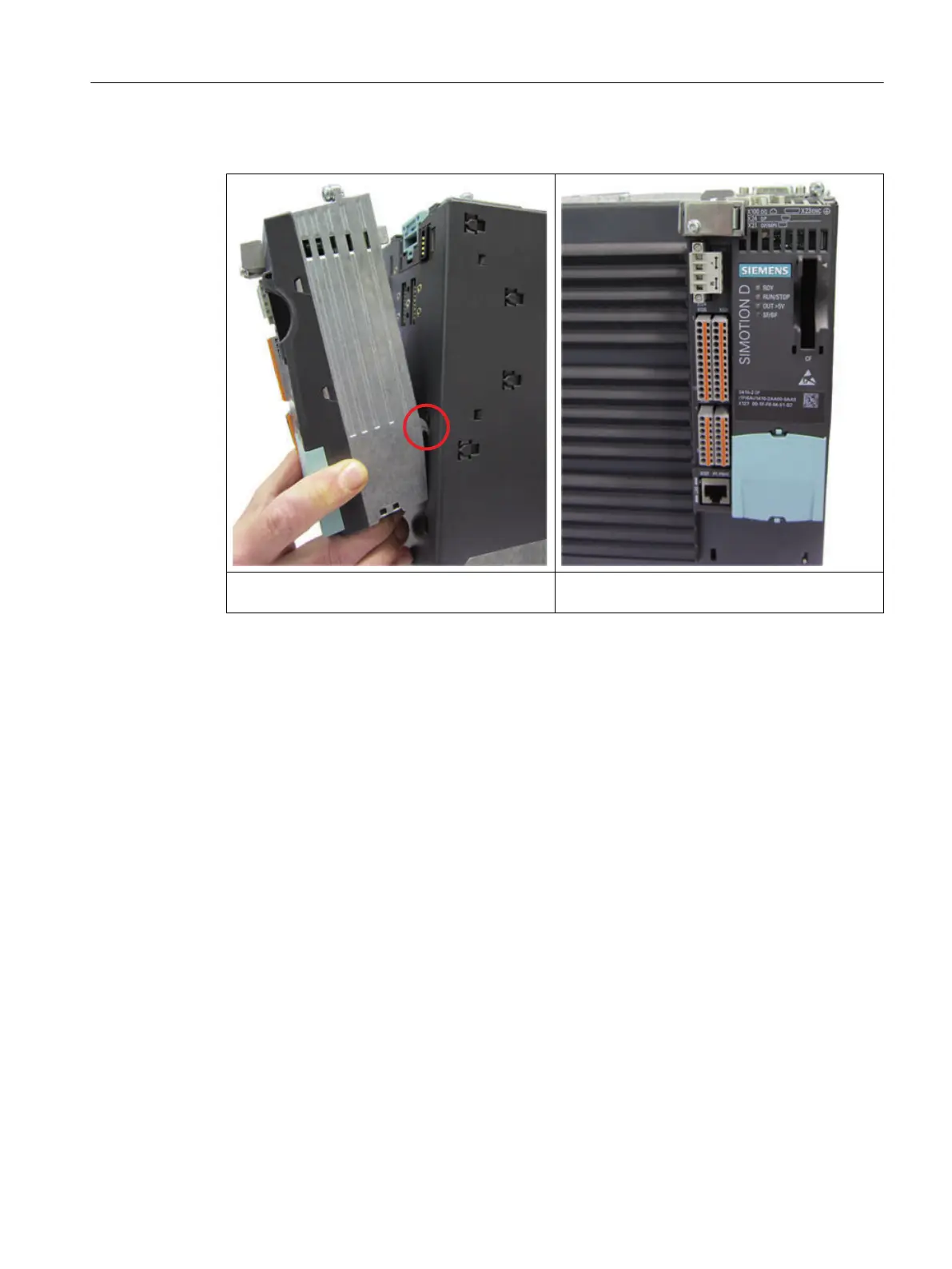

Snapping the SIMOTION D410-2 on to the Power
Module (example PM340)
PM340 Power Module with SIMOTION D410-2
(example PM340)
Installing
3.2 Mounting the SIMOTION D410-2 on the power module
SIMOTION D410-2
Commissioning and Hardware Installation Manual, 01/2015 39
