Engineering System/HMI on PROFIBUS (example: D410‑2 DP)

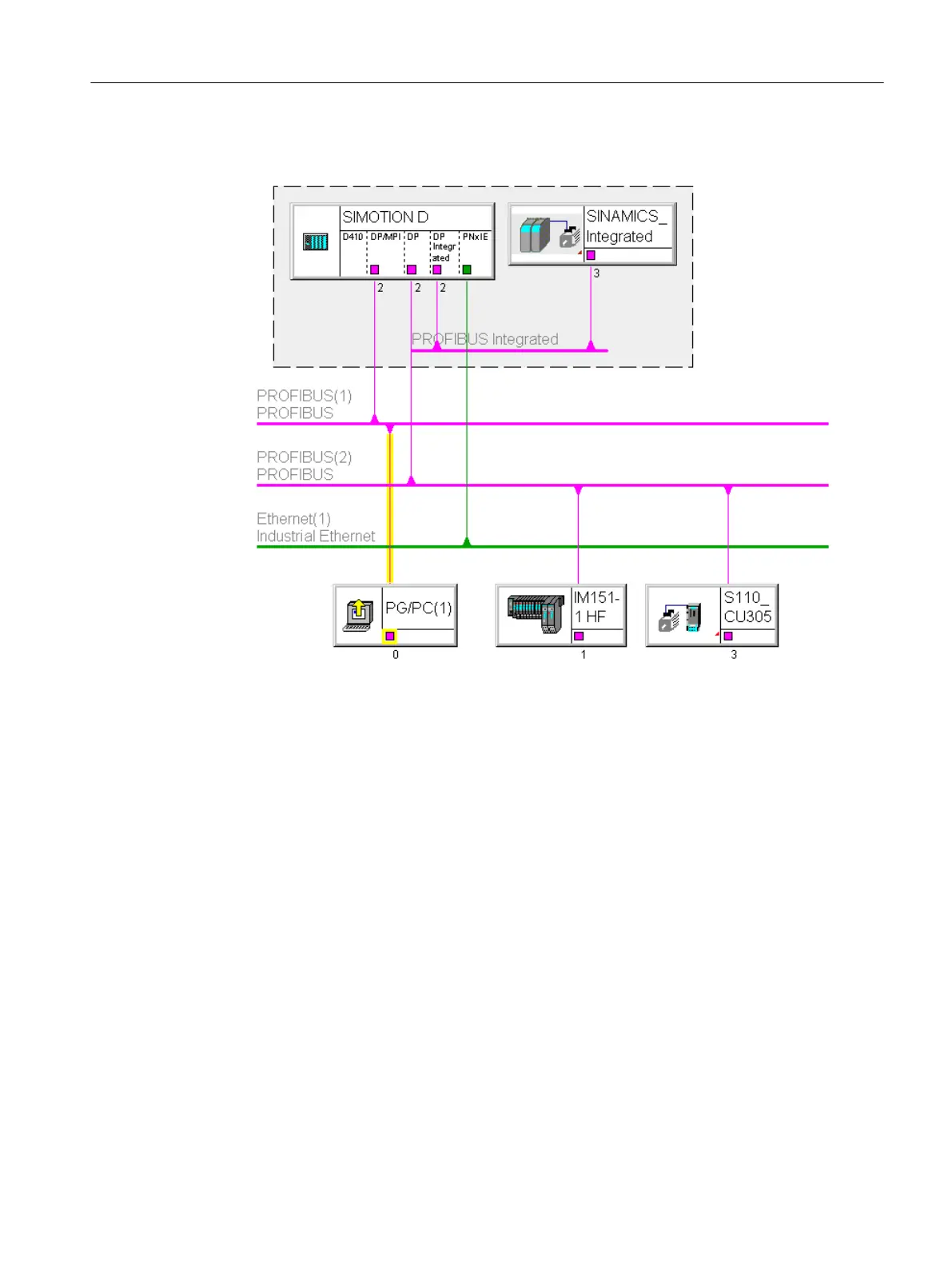

Figure 4-11 Example of PG/PC to PROFIBUS interface (X21)
●
S7 routing to the other (master) PROFIBUS interfaces (only if configured)
● S7 routing to the PROFIBUS Integrated
● S7 routing to the Ethernet interface (X127 P1)
Connecting
4.11 Routing
SIMOTION D410-2
Commissioning and Hardware Installation Manual, 01/2015 75
