Siemens SINAMICS PM240-2 - Connecting the line and motor cable at the converter

Connecting-up
5.2 Connecting the line and motor cable at the inverter
Power Module PM240-2
Hardware Installation Manual, 01/2017, A5E33294624B AE
55

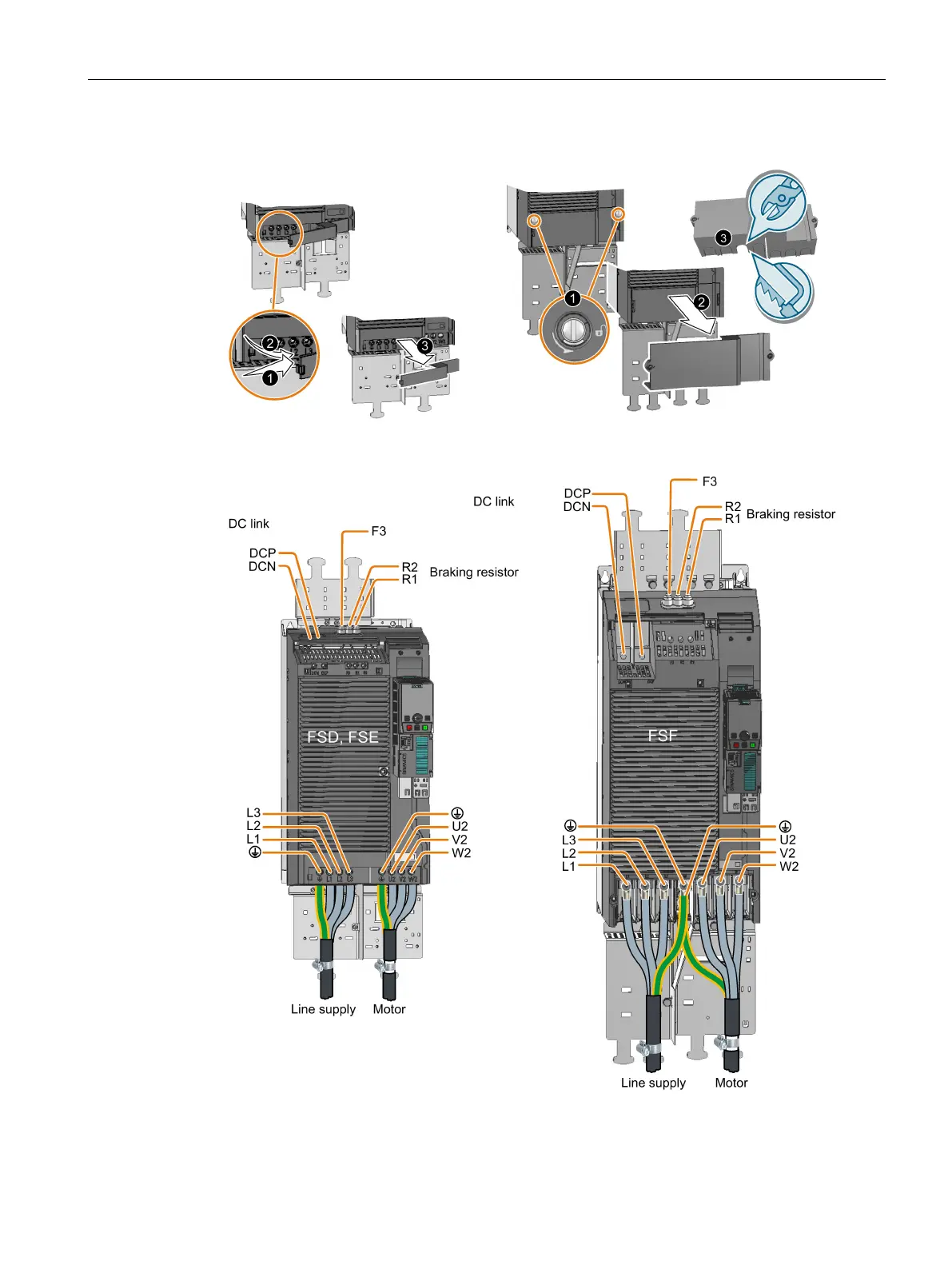

FSD, FSE: remove the lower covers
FSF: remove the lower covers
Figure 5-6 Connections for the line supply, motor and braking resistor
