Figure 2c) shows the characteristic curve of the efficiency for drives with quadratic load characteristic as a function of
the active output power ratio P
Out
/P
Out-100
which is proportional to the motor power ratio P/P
rated
.
Converter efficiency in %

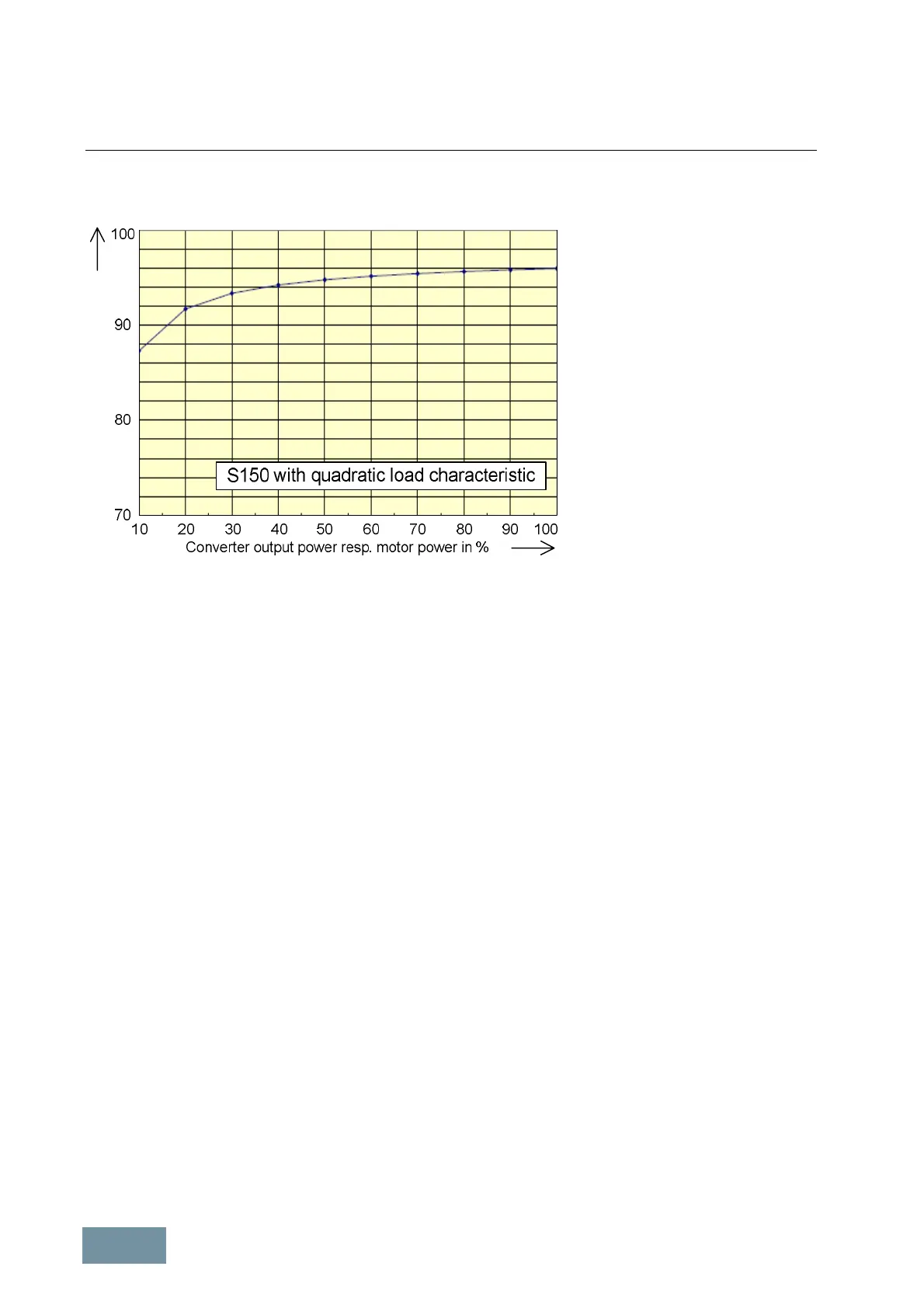

Figure 2c)
Efficiency of SINAMICS S150 converters in drives with quadratic load characteristic
as a function of the active output power ratio in %
