Ventilation of SINAMICS S120 power units in Chassis format: Active Interface Modules

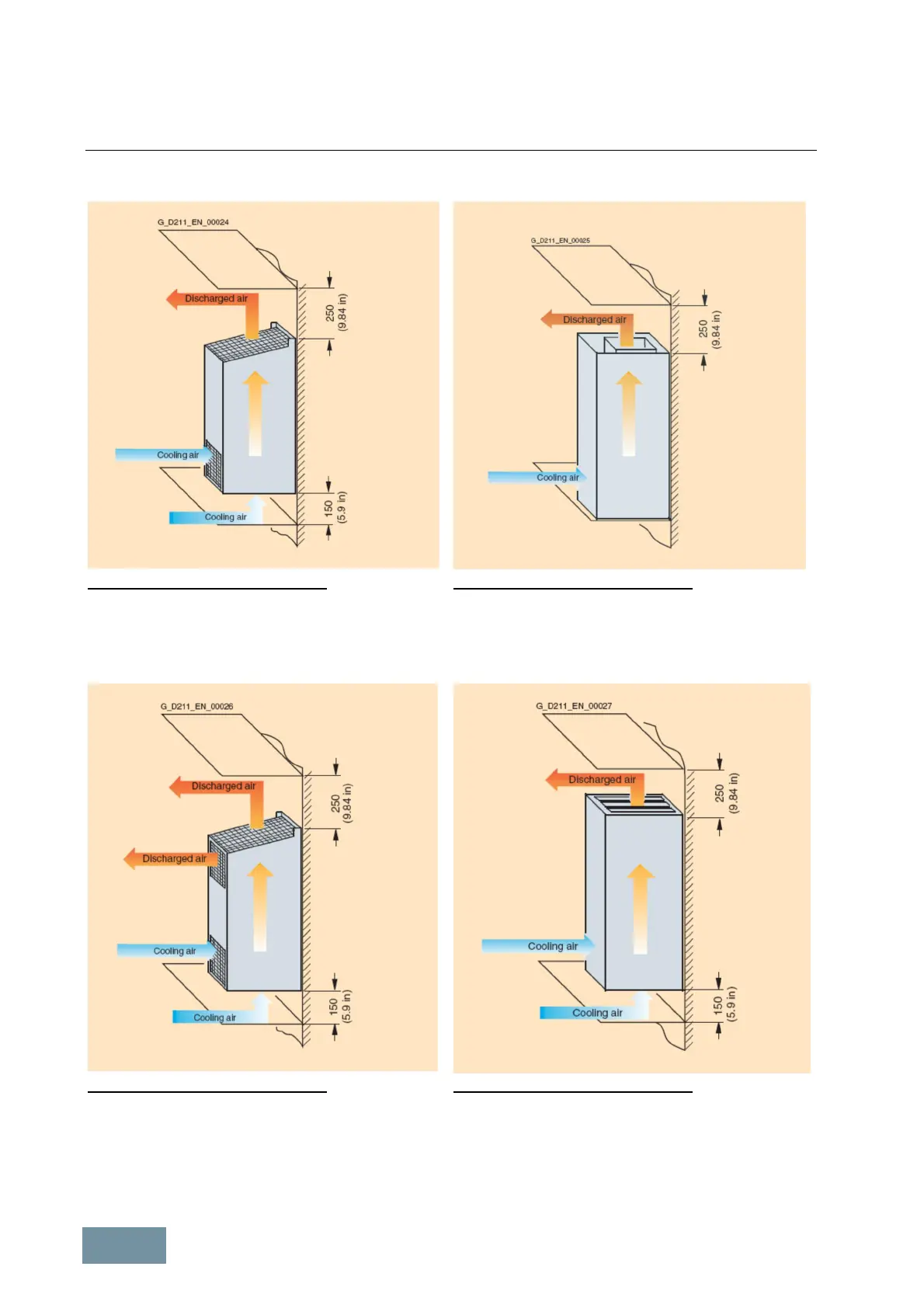

Ventilation clearance requirements for:
- S120 Active Interface Modules, frame sizes FI and GI
Ventilation clearance requirements for:
- S120 Active Interface Modules, frame sizes HI and JI
Ventilation of SINAMICS S120 power units in Chassis format and SINAMICS G130
Ventilation clearance requirements for:
- S120 Smart Line Modules, frame size GX,
- S120 Active Line Modules, frame sizes FX and GX,
- S120 Motor Modules, frame sizes FX and GX,
- G130 Power Modules, frame sizes FX and GX
Ventilation clearance requirements for:
- S120 Basic Line Modules, frame sizes FB and GB,
- S120 Smart Line Modules, frame sizes HX and JX,
- S120 Active Line Modules, frame sizes HX and JX,
- S120 Motor Modules, frame sizes HX and JX,
- G130 Power Modules frame sizes HX and JX
