Basic Line Connection Module

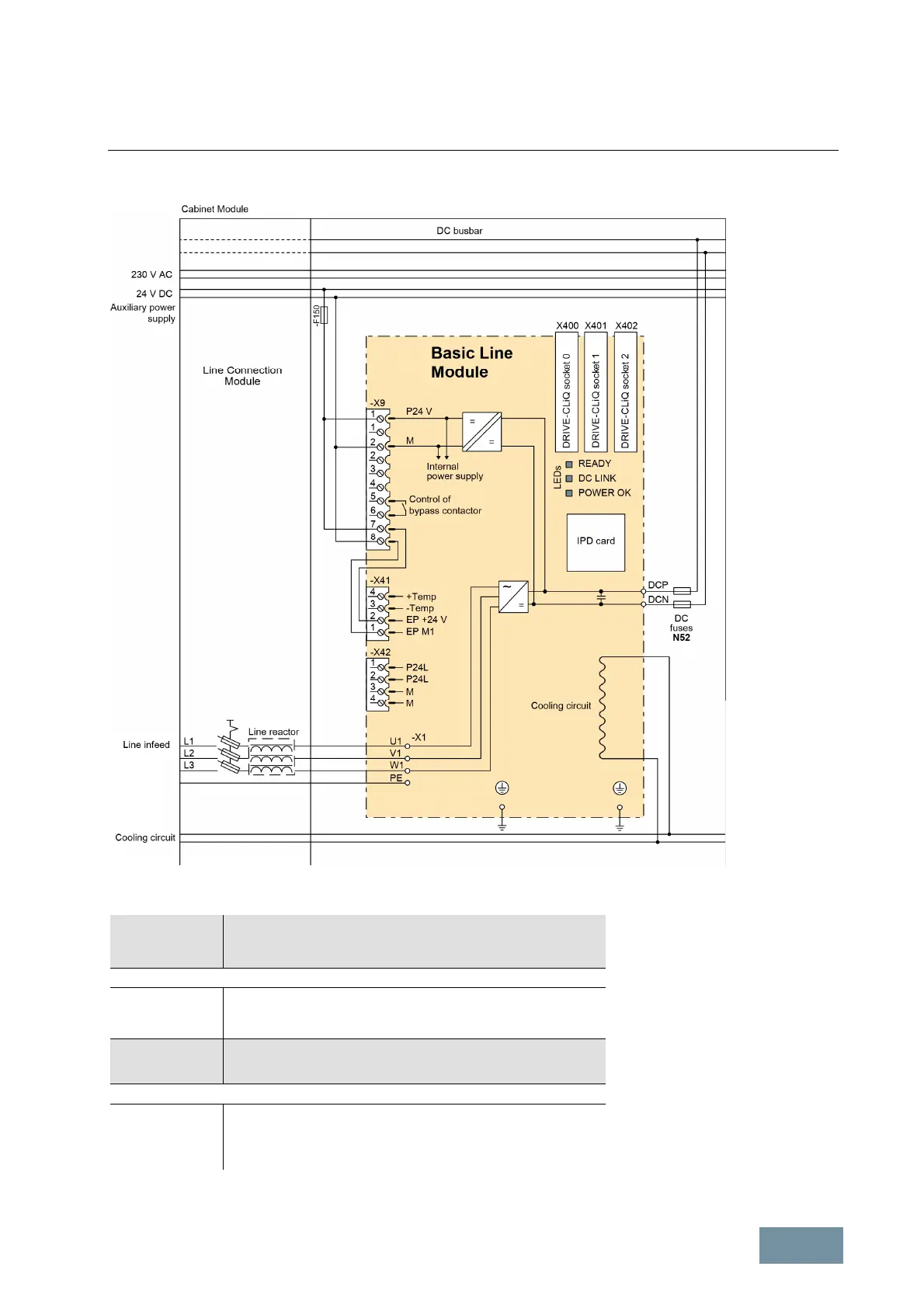

Example of a liquid-cooled Basic Line Connection Module (≤ 800 A) with fuse switch disconnector
and line reactor in the Line Connection Module and DC fuses (option N52) in the Basic Line Module
Power at 400 V
[kW]
Basic Line Connection Modules
Order No.
Line supply voltage 380 V – 480 V 3AC (DC link voltage 510 V – 650 V DC)
360 6SL3735-1TE37-4LA3
6SL3735-1TE41-2LA3
6SL3735-1TE41-7LA3
600
830
Power at
500 V / 690 V
[kW]
Line supply voltage 500 V – 690 V 3AC (DC link voltage 675 V – 930 V DC)
245 / 355 6SL3735-1TG34-2LA3
6SL3735-1TG37-3LA3
6SL3735-1TG41-3LA3
6SL3735-1TG41-7LA3
420 / 630
750 / 1100
950 / 1370
Power ratings and order numbers of the various Basic Line Connection Modules
