Siemens SINUMERIK 802C base line User Manual

Installing the Control System
2-6 SINUMERIK 802C base line
Start-Up
Connecting cables
The components are wired up as shown in the Connection Diagram 2–4 and
2-5. For the cables required, please refer to the diagram below.
IN
CNC
1PH Spindle
Motor
Spindle External
Encoder
Hand Wheels 1...2
signal
1...48
load
1...16
6FX8002-2BB01-1..0
6FX2002-3AD01-1..0
P24
M
DC24V
RS232
AXIS/
SPINDLE
ENCODER 1
ENCODER 2
ENCODER 3
SPINDLE
ENCODER
MPG
IN
M
P24
OUT
M
P24
M
X1
X10
X20X100
X201
X200
X7
6FX8002-1AA01-1..0
X2
Communication
with Computer
RS232
Isolator
option
6FX2003-0DS00
1FK7 Servo Motor
0.0...0.7
1.0...1.7
2.0...2.7
3.0...3.7
4.0...4.7
5.0...5.7
X101
X102
X103
X104
X105
OUT
0.0...0.7
1.0...1.7
Wire(1.0...2.0 mm
2
)
Wire
(0.14...1.5 mm
2
)
Wire(0.14...1.5 mm
2
)
Power
Module
6SN1146-...
611U
6SN1118-0NK

X3
X4
X5
X6
Power Cable
6FX5002-5.A.1-1..0
Signal Cable
6FX5002-2CF02-1.. 0
6FX8002-2CJ10-1..0
Spindle 6FX5002-2CD01-1BB0
DI
NC READY
611U
6SN1118-0NK

P24M
24VDC 24VDC

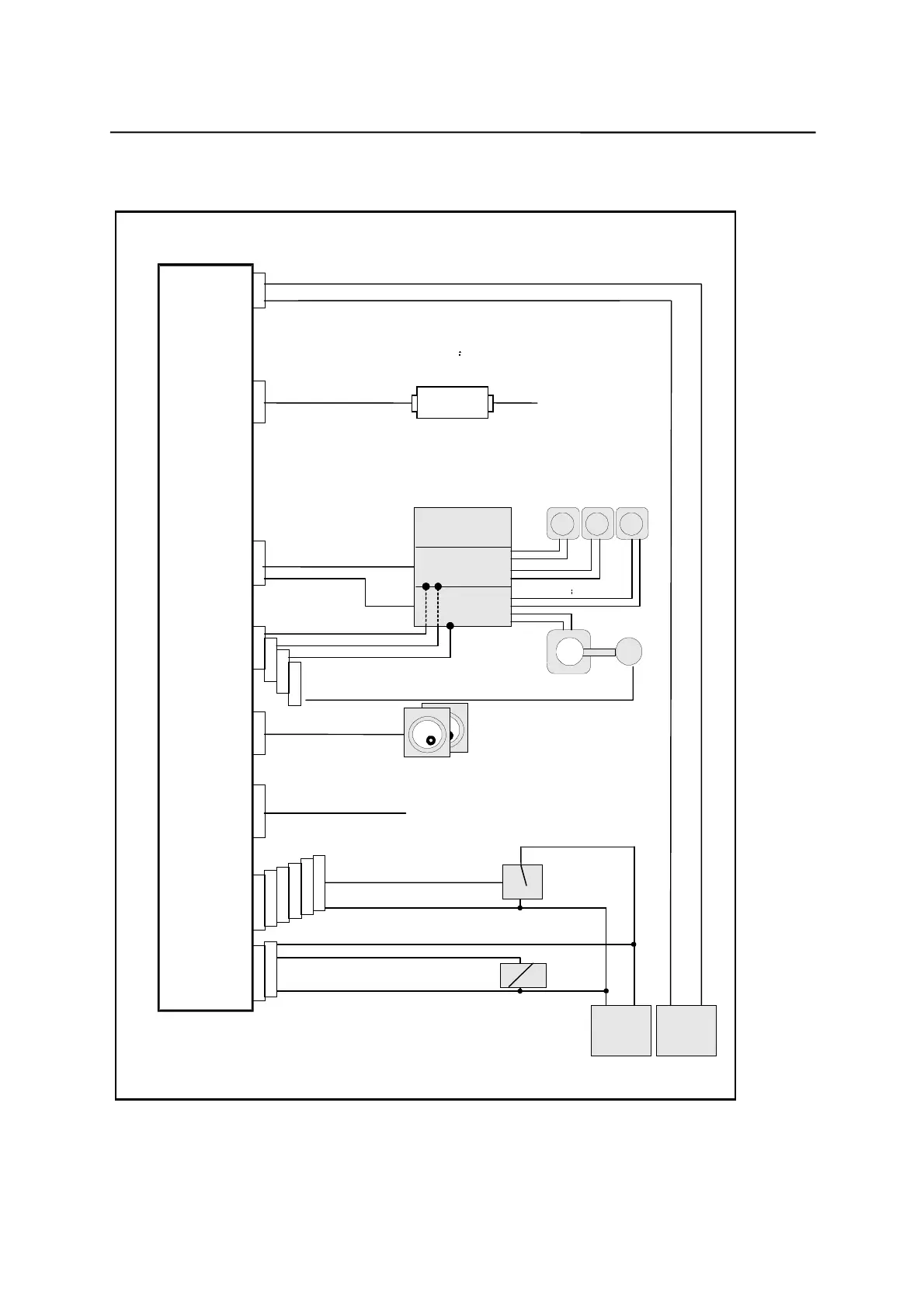

Fig. 2-4 Connection Diagram for SINUMERIK 802C base line with SIMODRIVE 611U
