Installing the Control System
2-18 SINUMERIK 802C base line
Start-Up

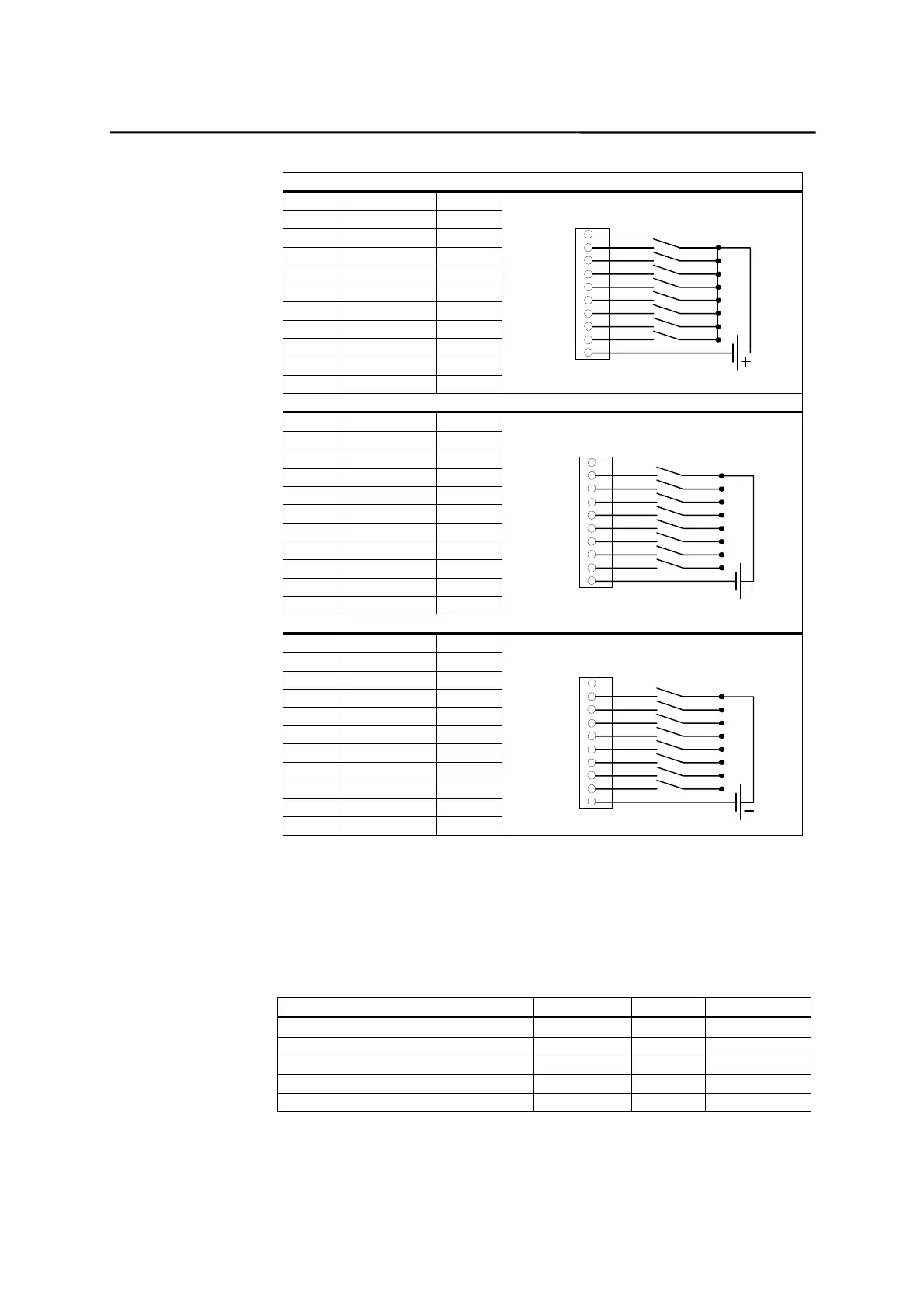

X103
Pin Name Type
1n.c.
2DI24DI
3DI25DI
4DI26DI
5DI27DI
6DI28DI
7DI29DI
8DI30DI
9DI31DI
10 M VI
X103
24
25
26
27
28
29
30
31
M
X104
Pin Name Type
1n.c.
2DI32DI
3DI33DI
4DI34DI
5DI35DI
6DI36DI
7DI37DI
8DI38DI
9DI39DI
10 M VI
X104
32
33
34
35
36
37
38
39
M
X105
Pin Name Type
1n.c.
2DI40DI
3DI41DI
4DI42DI
5DI43DI
6DI44DI
7DI45DI
8DI46DI
9DI47DI
10 M VI
X105
40
41
42
43
44
45
46
47
M
Signal names
DI0...47 24 V digital inputs
Signal type
VI Voltage input
DI Input (24 V signal)
Table 2–14 Electrical parameters of the digital inputs
Parameter Value Unit Note
“1” signal, voltage range 15...30 V
“1” signal, current consumption 2...15 mA
“0” signal, voltage range –3...5 V or input open
Signal delay 0
Æ
1 0.5...3 ms
Signal delay 1
Æ
0 0.5...3 ms
