Installing the Control System
SINUMERIK 802C base line
2-19
Start-Up
2.3.7 Connecting the digital outputs (X200, X201)

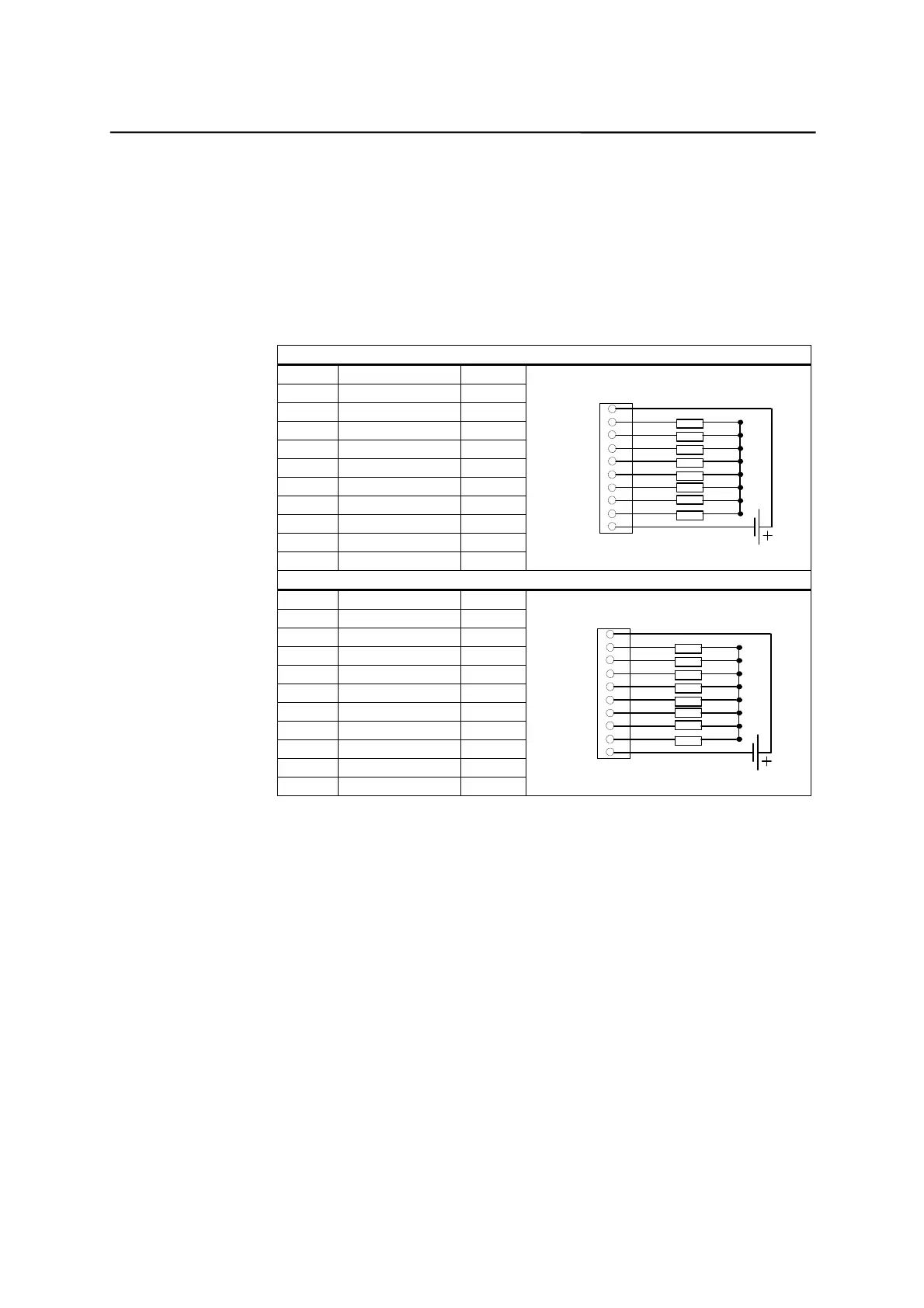

Connector pin assignment
Interface for digital outputs
Connector designation: X200, X201
OUT
Connector type: 10-pin plug connector
Table 2–15 Connector pin assignment
X200
Pin Name Type
11P24VI
2DO0/CWO
3 DO1/CCW O
4 DO2 O
5 DO3 O
6 DO4 O
7 DO5 O
8 DO6 O
9 DO7 O
10 M VI
X200
0/
CW
1/
CCW
2
3
4
5
6
7
M
1P24
X201
Pin Name Type
12P24VI
2 DO8 O
3 DO9 O
4DO10O
5DO11O
6DO12O
7DO13O
8DO14O
9DO15O
10 M VI
X201
8
9
10
11
12
13
14
15
M
2P24
Signal Description:
DO0 ... DO13 Digital output 0...13, Max. current 500mA.
DO0/ CW Digital output 0 / Unipolar Spindle CW Direction, Max. current
500mA.
DO1/ CCW Digital output 1 / Unipolar Spindle CCW Direction, Max. current
500mA.
1P24, M Power supply for the digital outputs 0...7
2P24, M Power supply for the digital outputs 8...15
Signal type
VI Voltage input
O Output (24 V signal)
