4. Program Positional Data 09.01
4-26 © Siemens AG, 2001. All rights reserved
SINUMERIK 802D Milling ISO Dialect M (ISF) - Edition 09.01
Select the Working Plane, G17 to G19
N10 G0 X50 Z50 G17 D1 F1000
Command Working plane Infeed axis
G17 X/Y Z
G18 Z/X Y
G19 Y/Z X
The working plane must have been programmed to make
use of the tool offset data.
The working plane cannot be changed for active G41/G42.
Default setting: G17
ZZ
Z
Y
Y
Y
XX
X
G17
G18
G19

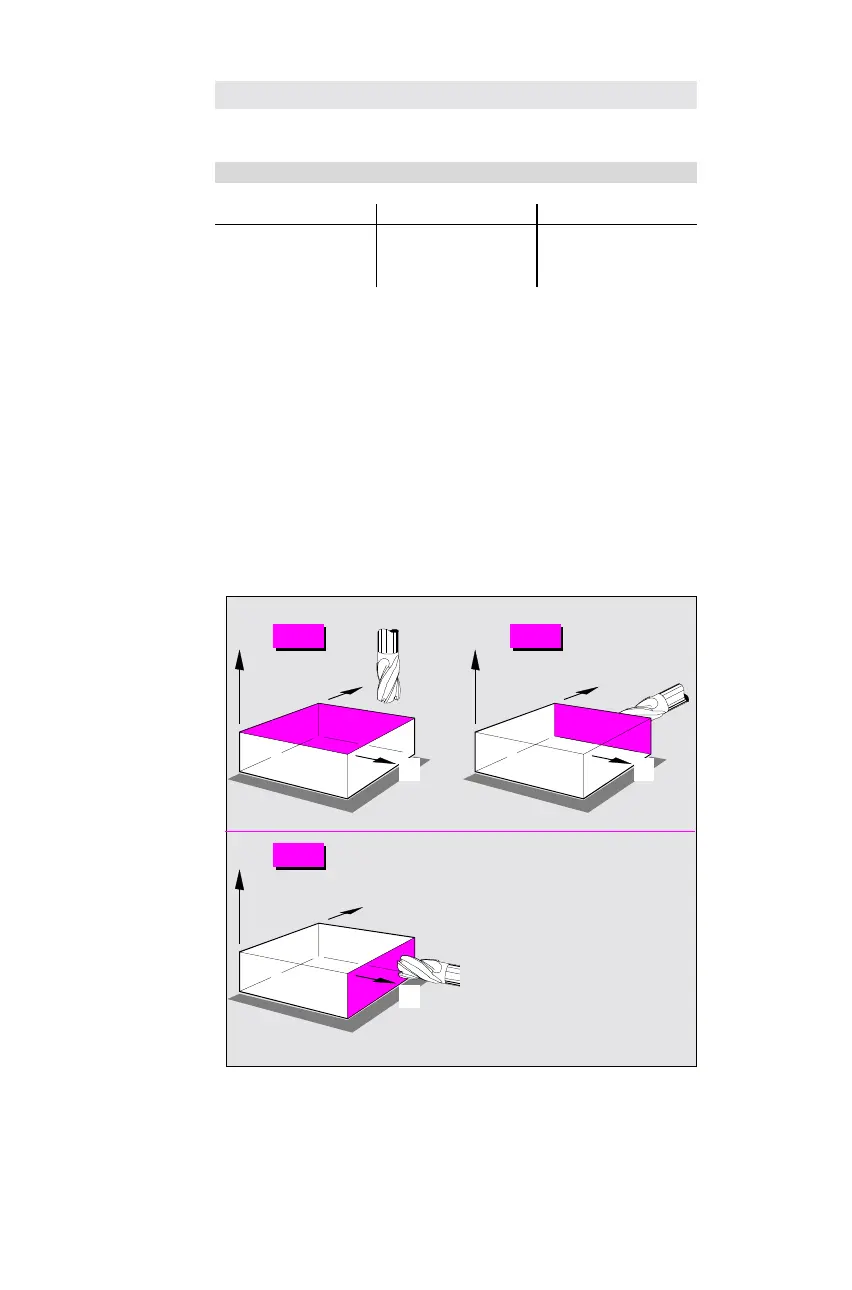

Select the working plane for horizontal and vertical machining for milling
