Application In a case there an auxiliary function has to have been executed before the
next block can
be processed (e.g. for a tool change), automatic block change
must be inhibited with read-in disable.

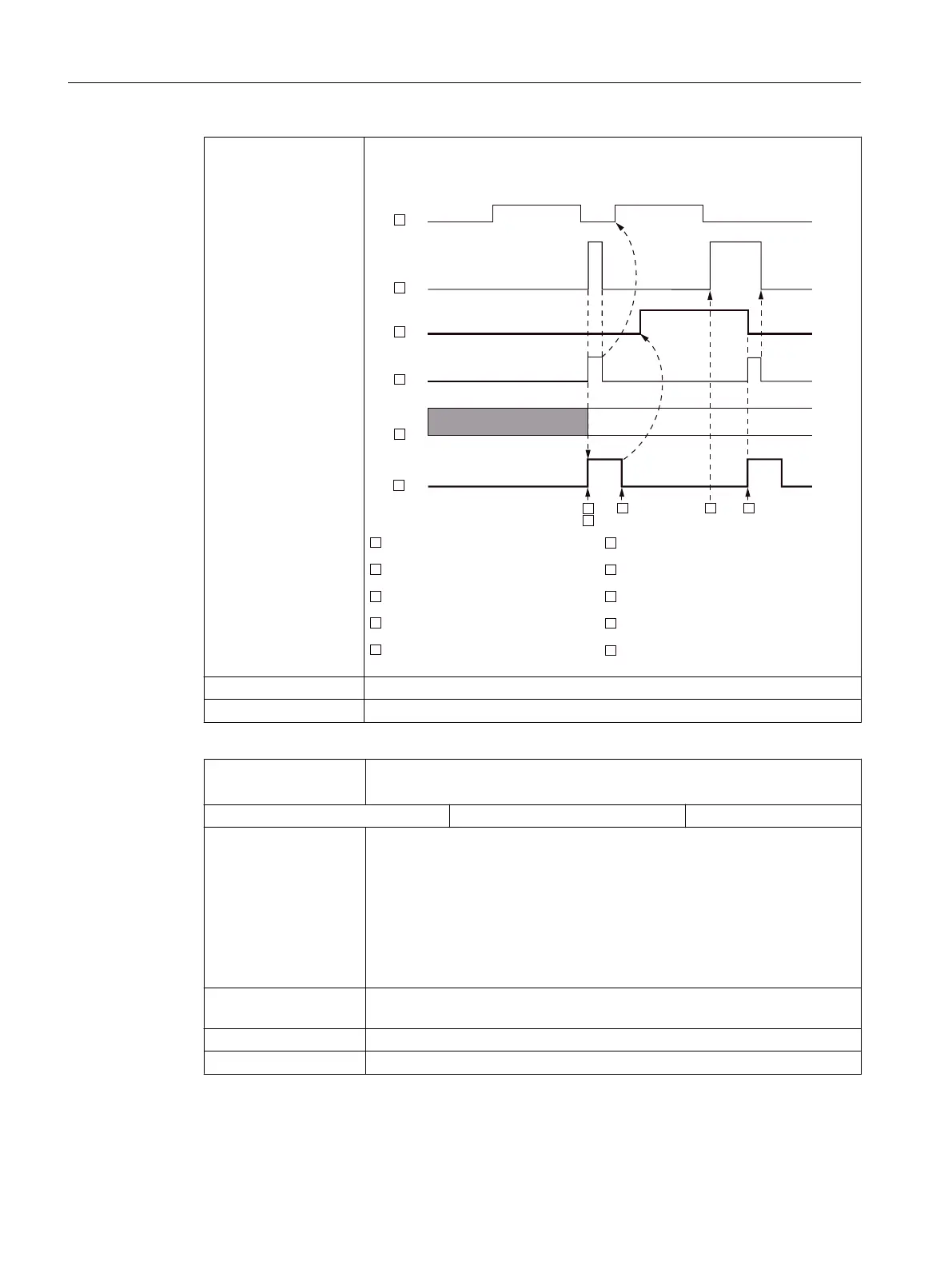

5HDGLQJLQWREXIIHU
2XWSXWRIWKHDX[LOLDU\IXQFWLRQ
'DWDWUDQVIHULQWRWKHLQWHUSRODWRU
5HDGLQGLVDEOHIRUWRROFKDQJH
4XHU\SRLQWRIWKHUHDGLQHQDEOH
5HPRYHUHDGLQGLVDEOH
5HDGLQJLQWREXIIHU
5HDGLQGLVDEOHVLJQDO
'DWDWUDQVIHU
&RQWHQWVRIWKHLQWHUSRODWRU
17
17
1*
1
70
;0
corresponding to ... IS "Program status running"
Note for the reader Function Manual Basic Functions K1
DB3200
DBX6.2
Delete distance-to-go
Signal(s) to channel (PLC → NCK)
Edge evaluation: No Signal(s) updated: Cyclic
Signal state 1 or edge
change 0 → 1
IS "Delete distance-to-go" for path axes is only active in AUTOMATIC mode.
The rising edge of the interface signal is only effective for the axes involved
in
the geometry
grouping. These are also stopped with a ramp stop and their
distance-to-go deleted (setpoint - actual value difference). Any remaining fol‐
lowing error is still removed. The next program block is then started.
Remark:
IS "Delete distance-to-go" does not influence the running dwell time in a pro‐
gram block with dwell time.
Signal state 0 or edge
change 1 → 0
No effect
Signal irrelevant for ... Positioning axes
Application example Terminating motion because of an external signal (e.g. probe)
Detailed descriptions of interface signals
5.7 Channel-specific signals
