Mounting aids
6SDFHUV
&XWRXWVIRU
ODWHUDOPRXQWLQJ

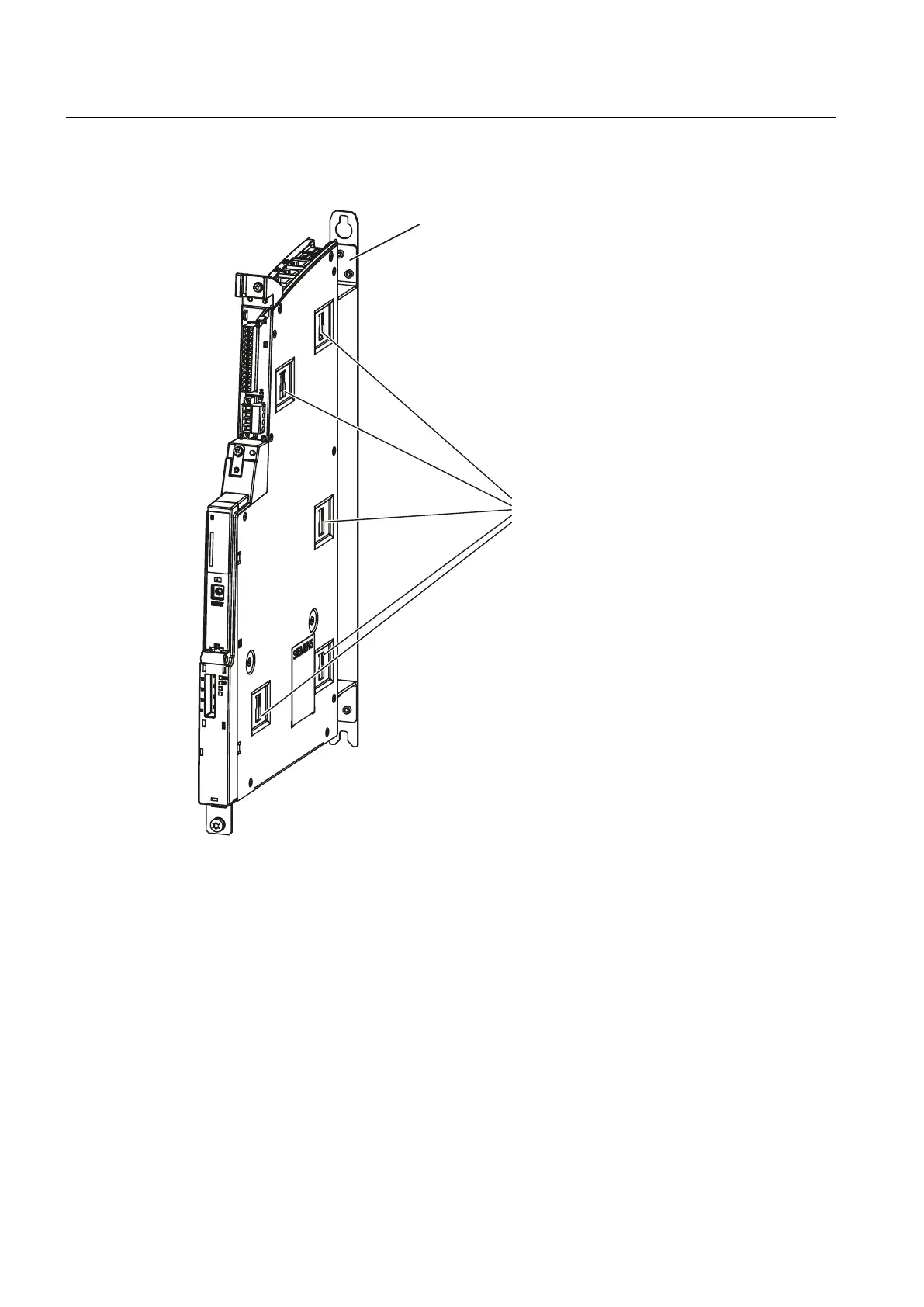

Figure 7-54 NX10.3 mounting aids
Mounting an NX10.3 on an Active Line Module
Procedure:
1. Remove the spacers from the NX.
2. Position the NX on the left-hand side of the Line Module. The mounting fixtures fit exactly
in the five cutouts on the NX.
3. Push the two units together.
4. Press down on the NX until it engages and is securely connected to the Line Module.
Connectable components
7.8 NX10.3
PPU
218 Manual, 01/2014, 6FC5397-2DP40-3BA3
