Siemens SINUMERIK 828D PPU Series - Connecting

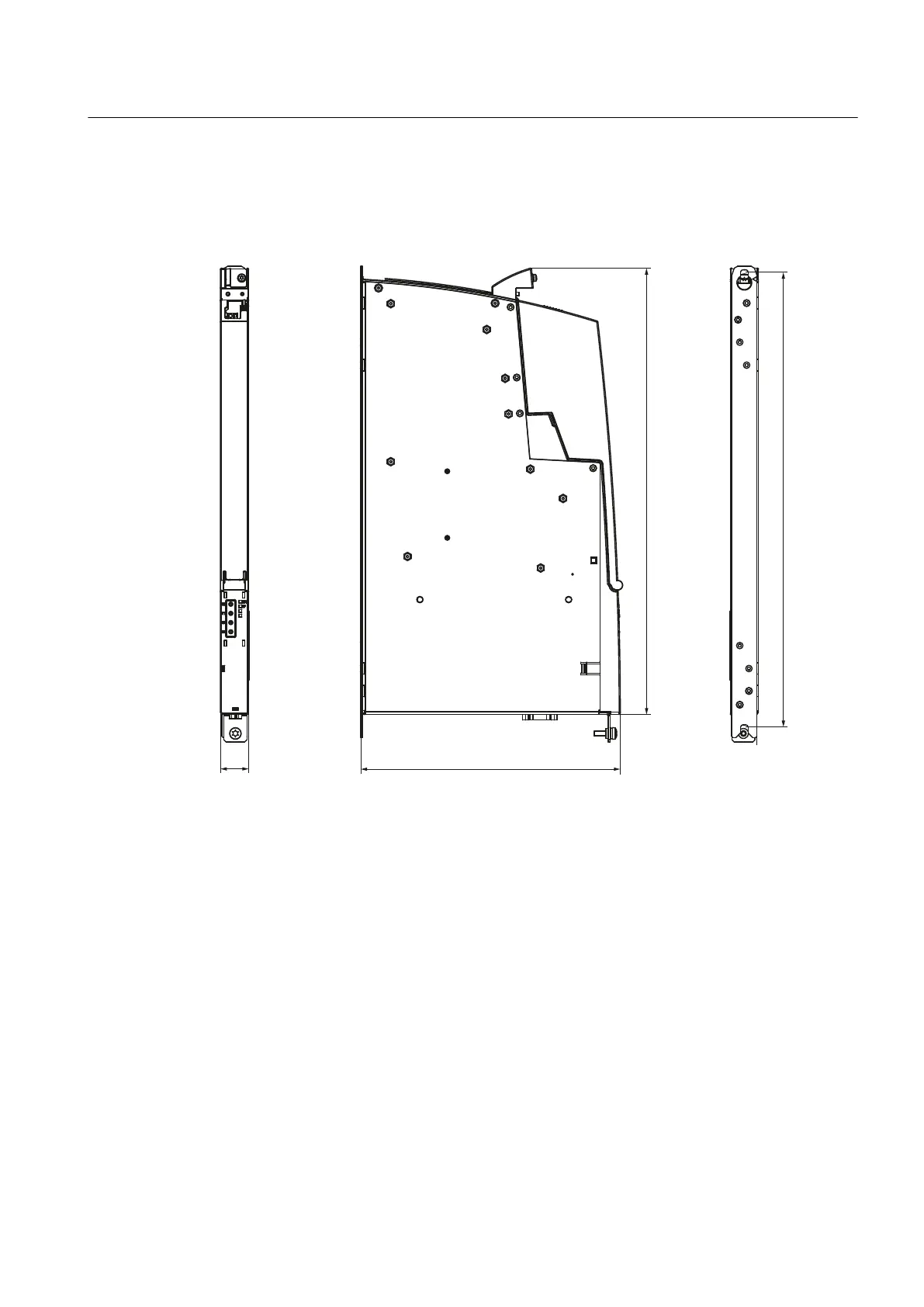

Dimension drawing




Figure 7-55 NX10.3 dimensions
7.8.3 Connecting
Power supply X124
Connector designation: X124
Connector type: Screw terminal 2
Max. connectable cross-section: 2.5 mm
2
Connectable components
7.8 NX10.3
PPU
Manual, 01/2014, 6FC5397-2DP40-3BA3 219
